Model#
X3
Size Range
75CMx75CMX7CM
Resolution
1024*1024
OS
Android 7.1
Computer
ARM Quad-core 1.5G Processor
Supply Ability
5000Piece/month
Min. Order
1Piece
Payment
TT
Shipping
By sea, by air
Price
Get Latest Price
Inquire Online
Get the latest price
Quantity Needed：
Pieces
E-mail：
Product Comparison
ITATouch insists on the use of high-quality materials and advanced technology to manufacture Interactive Flat Panels. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.ITATouch guarantees Interactive Flat Panels to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.
  • product-ITATOUCH-img
    product-ITATOUCH-img
Product Details
With the dedication to pursue excellence, ITATouch strives for perfection in every detail.Closely following the market trend, ITATouch uses advanced production equipment and manufacturing technology to produce interactive touch screen. The product receives favors from the majority of customers for the high quality and favorable price.
  • product-ITATOUCH-img
Company Advantages
1. The careful design of ITATOUCH is provided by our experienced designers for the convenience of users.
2. The product features good electromagnetic compatibility. It can operate in its electromagnetic environment without impairing its functions and without faults.
3. The product generates little noise. It is developed and manufactured based on the noise standards for the industrial equipment.
4. Choosing this product, a tiny home, is the best way to reduce the carbon footprint – and live a more eco-conscious lifestyle.

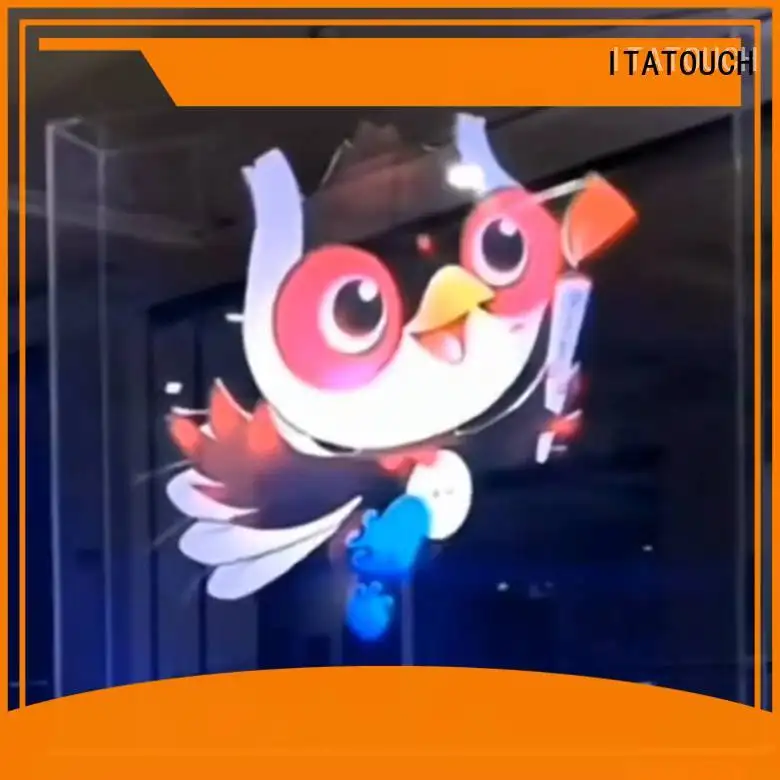

Features of 3D holographic fan display
1. Android 7.1 OS, ARM Quad-core 1.5G Processor 8GB storage.
2. Support controlling by point-to-point and network remote control;  clustering, splicing, user can select the suitable solutions per various requirements.
3. High brightness: 1600cd/square meter, support indoor , outdoor display (with protected shell)
4. Support Bluetooth audio output, simple and easy.
5. Support all formats of images & videos（black background）
6. Control Method:  Wi-Fi（2.4G）,  Management App for the mobile terminal, such as android mobile phone, Apple phone, Pad, Tablet ... etc.  it is very convenient and easy use.
7. Power on/off, Content Publishing .. etc by Mobile Terminal  Controlling.
8.  High Density of Light Beads 254pcs *4 bars to ensure the full high definition display,  full real colorful, enhance the reviewing effects.
9. Support Windows OS , IOS, Android OS.
10. Materials for hologram fan digital panel: ABS+PC/AL
11.  Lifetime: 30000 hours


Product Details
-1
-2
-3
the programme of the hologram fan display will be installed into the android board before assembling. user can directly use the 3D holographic display after installed the management app into their PC / Mobile Phone / Android Tablet / Ipad,
simple and convenient.
-4
The power board will be assembled inside of the shell box
-5
Place a metal shell above the power board, then assemble android board
-6
Four pieces of the light strip bar installed finally.
-7
24 hours baking
ITA Touch factory will 100% inspect the product after finish assembling, open 24hours to check if there is any LED light bead got bad and the display effects.



Product Paramenters
Parameter
Model#
X3
Display size
75CM
Max Power supply
120W 24V
Video format
Support all formats of images & videos（black background）
Control method
Wi-Fi（2.4G）
Input Volt
100-240VAC,50/60HZ
Color
Black
Quantity of Light Beads
256*4
Running OS
Android 7.1
Compatible OS
Support Windows, IOS, Android
CPU
ARM Quad-core 1.5G Processor
Storage
8GB
Products Dimension
75cm*75cm*7cm
Video Format
Support JPG GIF MP4 AVI RMVD MPEG
Video background
image & video（black background ）
Weight
0.78KG
Display Angle
176 degree
Permeability Rate
92%
Noise
55Db（with the cover protection）
Materials
ABS+PC/AL
Lifetime
30000hours
Max Resolution
1024*1024
Frame rate
24 frame/sec
Brightness
1600cd/m2
Environment Temperature
-30~60℃
Working environment
Indoor, outdoor (with the protected cover）
Audio output
Support Bluetooth
Features
Support controlling by point-to-point and network remote control; clustering, splicing
-8
Splicing mode of 3D holographic display
The splicing display video can be played smoothly and freely, basically without cutting marks, and the video and image can be uploaded and displayed in real time.
-9
Products Installation

Running System Requirements for 3D Hologram Fan Splicing Screens

Computer: Above E5 CPU,   Storage：>= 64GB SSD   RAM：16GB DDR3 or above Operation System：Windows 7 above Router: It had to be TPlink-AC1900 ,  which one could be connected with 20 pieces of holographic advertising display

Installed The Management Software  for 3D Digital Adverting Fan

Program name:  HoloPlayer.msi
User can remote public any information by PC to manage all hologram fans.
-10

Scan 2D code

Click the icon of access to scan the 2D code to management the place and height / direction.
Remark: each 3D holographic fan display will have the sole code when exw factory.
-11

Manage the displaying Sort

User can manage what they want the hologram fan the displaying sort , and adjust the slant degree .. etc.
The 3d image / video can be displayed immediately when uploading.


-12

3D Hologram Fan Package

The hologram fan will be put into thick foam with adapter,  cable, installation accessories ... etc.
-13

Small box for 1pcs 3D graphic fan

the foam with cover then will be placed into small box, the box dimension:
565*125*565mm  Gross Weight: 6.3KG
-14

Carton box with 4sets of 3D hologram

4 pieces of small boxes will be packed together into a large carton box
Dimension: 585*525*585mm   Gross Weight: 27KG:


Why Choose It
-15

Core Technology

* Own the key technology for 3D hologram fan   *  Full series offer, from point-to-point and network remote control;  clustering, splicing* Smart management system, just mobile terminal controlling. * multi-dimensions and whole splicing provider.
* HD display technology,  indoor, outdoor option.

-16

7*24hours on-line pre-sales & after-sales service

* ITA TOUCH people always here, provide quick response anytime & anywhere. * Offer the whole sets of the solutions with patient & detailed clarification according to client various requirements. * Quick and fully tracking delivery, feedback follow-up, Technical support, maintenance & replacement instructions, ITA TOUCH offer real and worry-free service.
-17

100% inspection to ensure the quality guarantee

* ITA TOUCH factory seriously comply with international quality standard, such as the CE, FCC, ROHS, BIS, CB. * The Audit from the initial infrared PCB starting, product assembling test, high-temperature baking auditing, all interfaces, and features trial, every process will be done 100% testing.
-18
Shenzhen ITA Touch Technology Co., Ltd.  focus on the interactive high-tech products- Interactive Touchscreen, Commerce Digital Display, interactive whiteboard, Interactive Table, Digital Kiosk Totem, Graphic Tablet, 3D hologram Fan … etc. With the setting up of the scientific management system in production, sales, technical supporting, and service organization, ITA’s products passed the ISO, CE, FCC, ROHS BIS certification. ITA Touch own the R&D team with over a dozen of employees, who are masters or higher, and a large-scale plant with automatically production lines. OEM /ODM & Customized products offering with high quality and moderate cost, which have been appreciated from over 30 countries and regions in the world. ITA Touch people are full of confidence and earnestly hope to have your joint to enlarge our business, establish the health and long business relationship in the near feature. Please feel free contact us for any order discussion!
