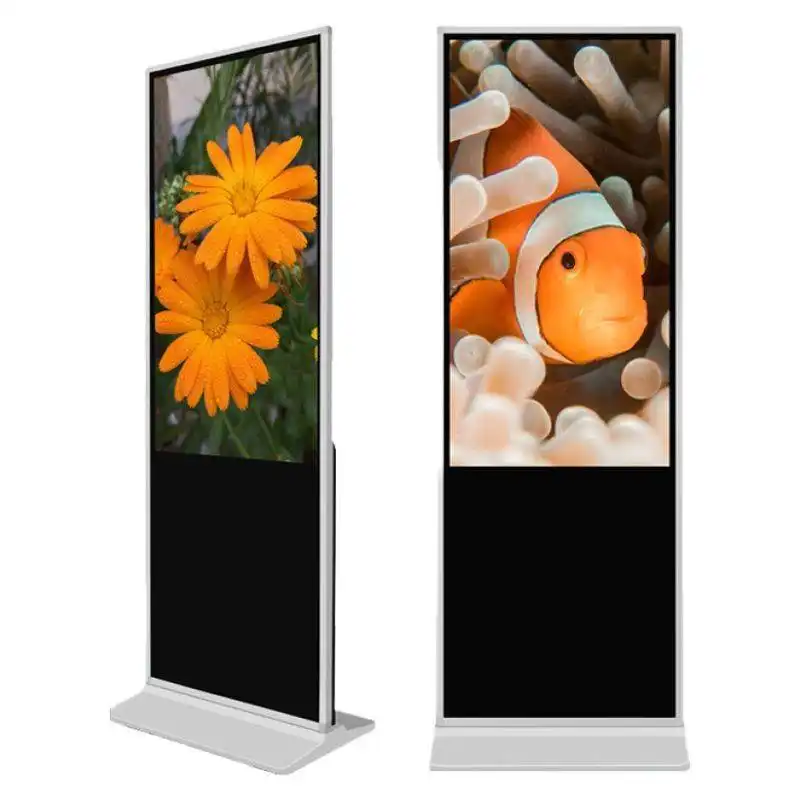

2022 new floor standing digital signage display, totem, lcd advertising kiosk1

PRODUCT CATEGORIES

→ VIEW ALL



Digital Signage



Outdoor Display



Interactive Table



Interactive Flat Panel



3D Hologram Fan



Portable Kiosk



Interactive Kiosk



FULL SERVICES & COLLABORATION

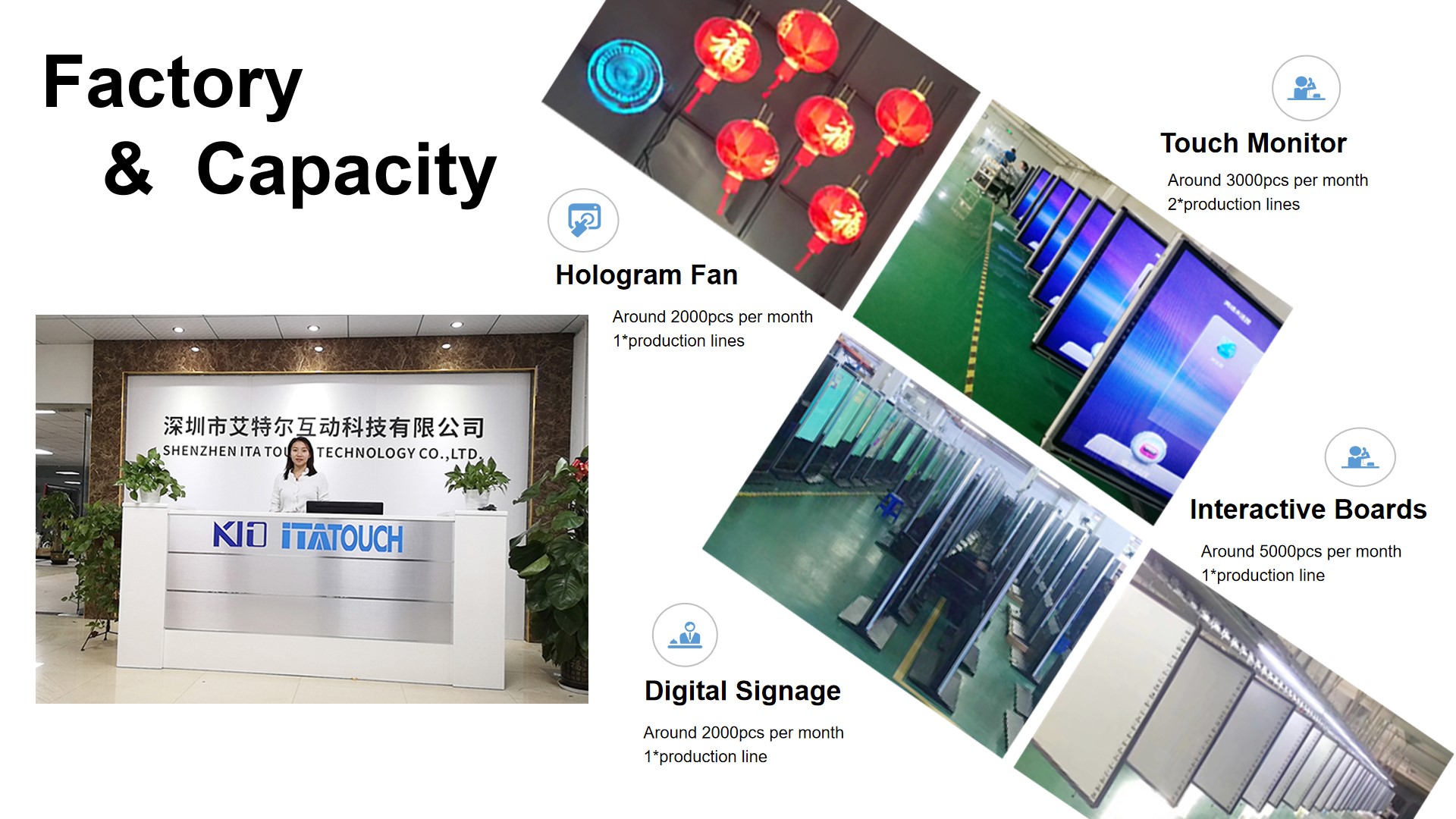

OVER 10 YEARS EXPERIENCES INTERACTIVE PRODUCTS!











Products Descreption











































Specification





Display Size	32"	43"	50"	55"	65"
Product Dimension	779*475*61.6	1800*635*458.5	1850*707*460	1900*755.9*460	2097.87*905*560
Active area	696*392	940.896 x 529.25	1073.78x604	1209.6x680.4	1428.48x803.52

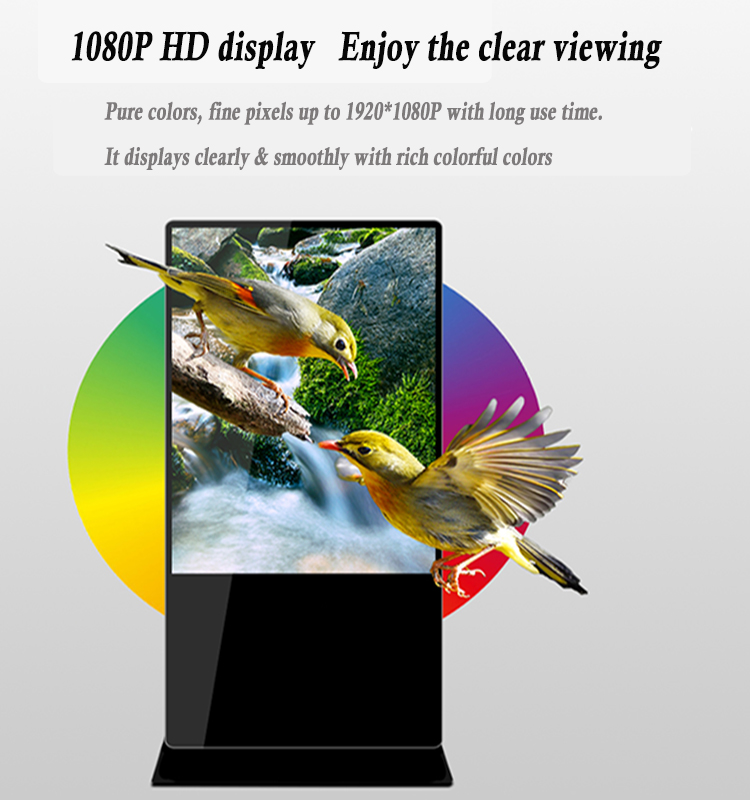

Resolution	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080
Display Ratio	16:09	16:09	16:09	16:09	16:09
Contrast Ratio	1400:01:00	4000:01:00	4000:01:00	4000:01:00	4000:01:00
Brightness	360 cd/m²	300cd/m2	300cd/m2	350cd/m2	360cd/m2
Response time	6ms	8ms (typ)	6ms (typ)	8ms (typ)	8ms (typ)
Color	16.7M	16.7M	8bit 16.7M	16.7M	10bit 1.07B
Viewing angle	178°	178°/178°	178°/178°	178°/178°	178°/178°
Stereo speaker	10W, 8Ω	5W,8Ω	10W, 8Ω	10W,8Ω	10W,8Ω

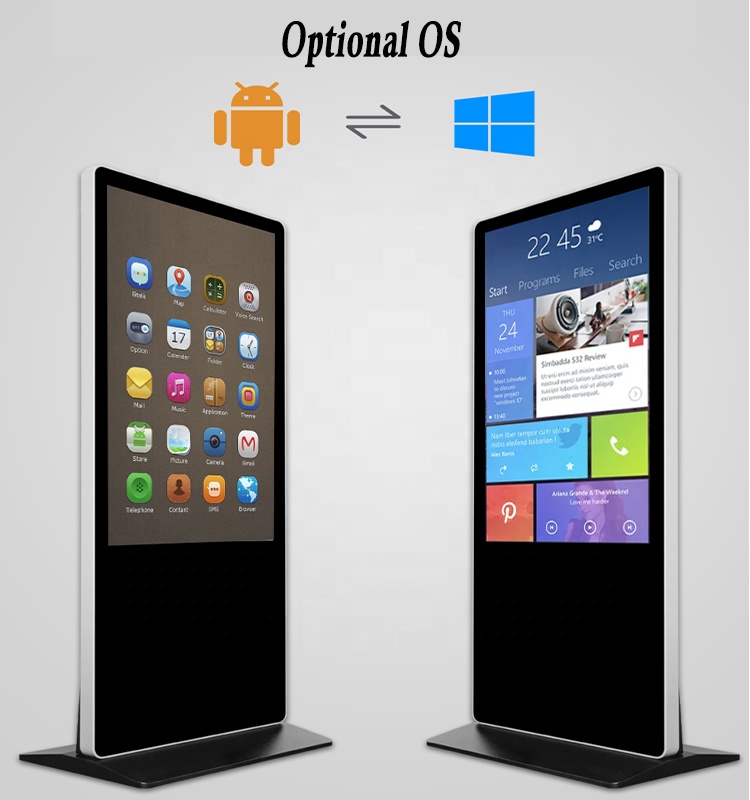

Android Solutions	Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT
	HDMI-compatible×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1
PC Solutions Option	X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1
	PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4;HDMI-compatible*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1

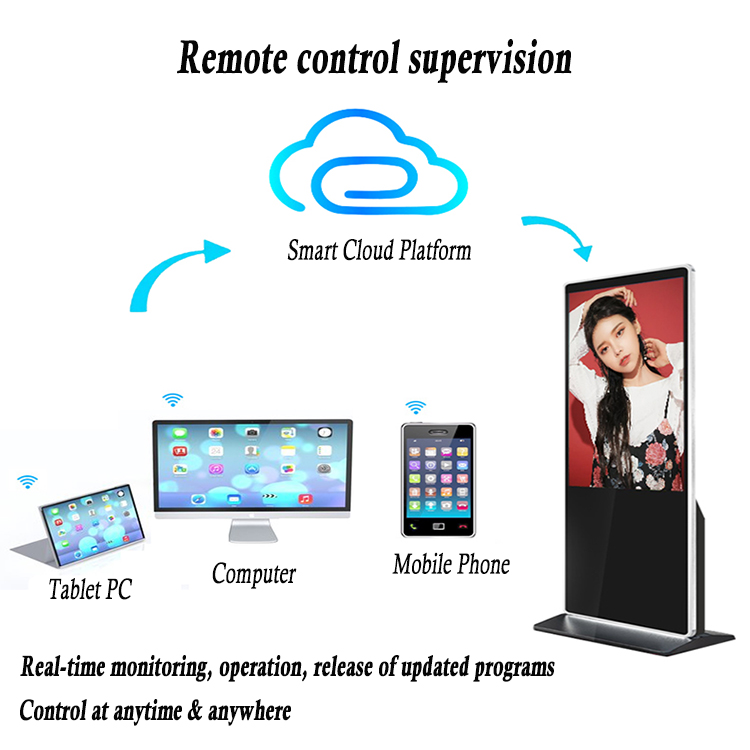

Management Software	the default standard with advertising publishing software for the terminal android unit (including console and playback terminal) LAN Network computer server + unit terminal

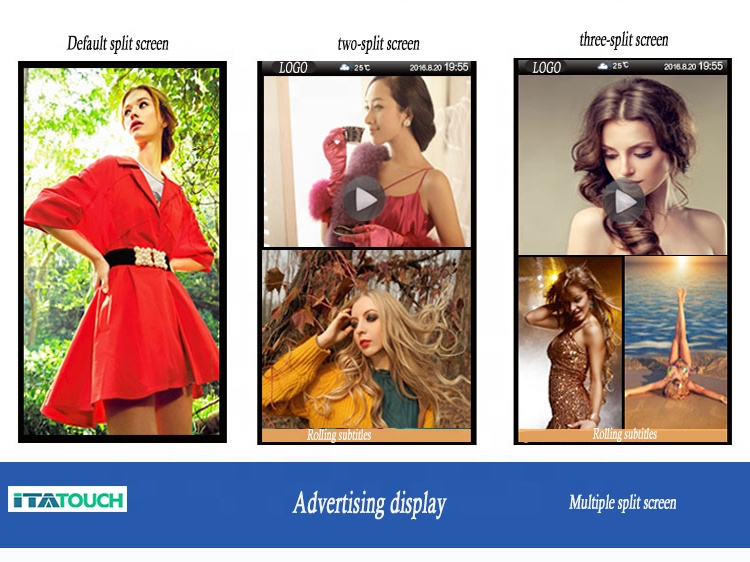

	support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles …
Touchscreen Option	Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects
Shell	Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass
Work environment	Temperature: working 0℃~40℃, Storage: -20℃~55℃ ; Humidity: 10%~90% RH Non-Condensing, Storage: 20%~80% RH Non-Condensing
	The day longest time : 7/24 (days/hours)
Power	AC 100-240V 50/60HZ; Stand by ≤1W
	≤60W	≤60W	≤80W	≤150W	≤200W
Certification	CE, FCC, ROHS, ISO9001, ISO14000
Accessories	CD,  Power Cable 1.8m, User Manual



 Remark: the actual measurements may be some differences according to its actual shape and configurations.





















Product Packaging



 One floor standing totem is packed by two cartons usually.

 body and base stand are packed separately to save volume weight, details please check with salesman, thank you!













                                              ♦  FAQ Q1: What products do you manufacture? TV wall mount, Monitor mount, Speaker Stand, TV Mobile Cart and Others Q2: May I take some samples to test before placing the order ? Yes, customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed. Q3: Can you provide OEM? Yes, when the quantity meet 2000pcs per model we can make OEM package freely. And we have designer to help you design the color box if you need.
