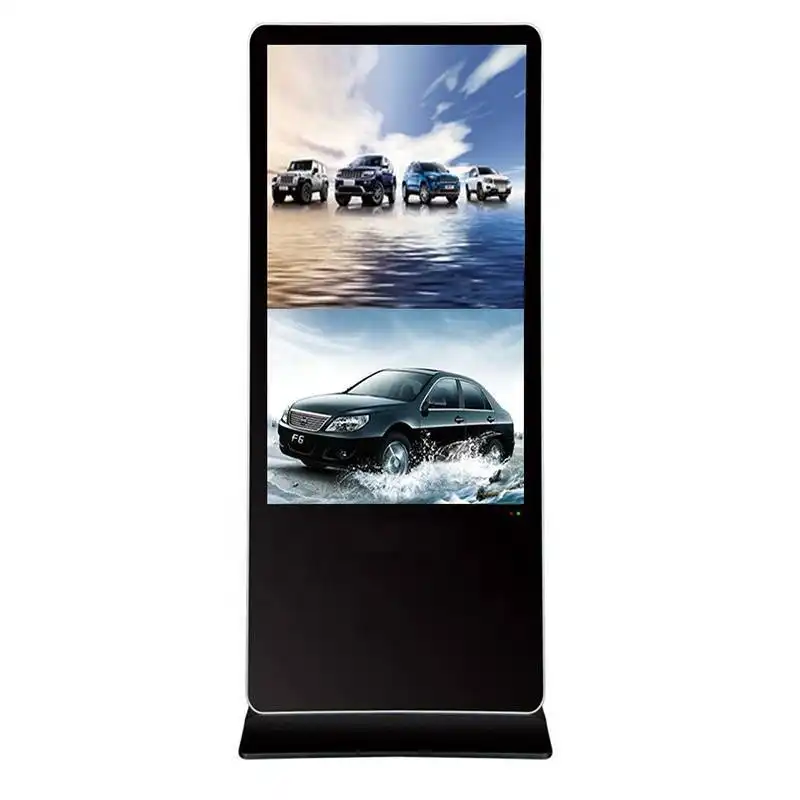

ITATOUCH LCD digital signage adopt LED backlight screen panel with FHD 1080P resolution, include wall mounted and floor stand installation, it has Android and PC LAN version, card reader version option.
The materials of the case are aluminum frame with drawing painted treatment and metal backside, front panel usually is metal panel with painted color, and covered edge finish.
Interactive touch screen option – infrared multi touch or capacitive touch technology.
ITATOUCH support the customized device, include color, configuration, shape and functions. OEM welcome!
* 1080P Full HD Display
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying
* Security Design, industrial mainboard, and tempered glass
* Support full media format files
Hardware & SoftwareHardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
Net-working management software
Each terminal/unit installed, the managment software to be installed computer sever if needs.
Above dimension of the sketch is for 55 inches floor stand display, other sizes option - 32", 43", 50", 55", 65", 75"
Customized Clarification:
a series of dimensions for various sizes, when the shape and configurations of the free standing digital signage are different, it will be a little change measurements.
The change / customized include the following1. Out-looking & Color, include based stand
2. Configurations different: card reader, android LAN (default equipment), PC built-in
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 20pcs)
5. Built-in printer, card reader ... etc.
The Technical Parameter for Advertising Display
Remark: just for reference, the actual parameters will be some difference per different components
Display Size | 32" | 43" | 50" | 55" | 65" |
Product Dimension | 779*475*61.6 | 1800*635*458.5 | 1850*707*460 | 1900*755.9*460 | 2097.87*905*560 |
Active area | 696*392 | 940.896 x 529.25 | 1073.78x604 | 1209.6x680.4 | 1428.48x803.52 |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Contrast Ratio | 1400:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Brightness | 360 cd/m² | 300cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
Response time | 6ms | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
Color | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 10bit 1.07B |
Viewing angle | 178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
Stereo speaker | 10W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | | | | |
| HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1 | | | | |
PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 | | | | |
| PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI*1, DVI*1,
VGA*1, RJ45*1,RS232*1, MIC*1 | | | | |
Management Software | the default standard with advertising publishing software for the terminal android unit (including console and playback terminal) LAN Network
computer server + unit terminal | | | | |
| support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … | | | | |
Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects | | | | |
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass | | | | |
Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃ ; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | | | | |
| The day longest time : 7/24 (days/hours) | | | | |
Power | AC 100-240V 50/60HZ; Stand by ≤1W | | | | |
| ≤60W | ≤60W | ≤80W | ≤150W | ≤200W |
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | | | | |
Accessories | CD, Power Cable 1.8m, User Manual | | | | |
Carton Package
Usually the interactive touch display will be packed into the rigid carton box with foam and bag, and also sealed a plastic film to avoid the rain weather
Wooden Case for Air shipment
Air / Express shipment, ITA Touch company will require the forwarder settle the wooden case to ensure the transaction safety.
Wooden Pallet for Sea Shipment
Sea or Air shipment for bulks goods, ITA Touch will settle the wooden pallet with poly film to ensure safety and avoid humility during long time ship.
The floor standing totem will be packed by two cartons usually
Both the body and base stand were be packed separately to save volume weight, the more details please check with salesman, thank you!
Relative interactive touch screen services will all be provided to customers. With the characteristics of Intelligence Recognization, our products are widely recognized.
ITATOUCH has been always enhancing the quality guarantee system to ensure the quality interactive touch screen production. With the characteristics of Intelligence Recognization, our products are widely recognized.
We are engaged in manufacturing, trading and supplying a wide range of effective and specialized products consisting of Floor Stand. We believe in growing by sharing our knowledge, expertise, and experience for fulfilling the needs, requirement, and expectation of our customers based across various domains. This has enabled us to gain the trust and business of a large number of customers based all across the nation. Our aim is to always deliver as promised and build long-term and strong relationships with the clients.
