IR multi touchscreen, support 10users writing, edit /annotation, finger touch, smart screen panel, full touch to switch channels
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
Welcome to visit us! ITATOUCH offer high quality interactive display with moderate price!
The most structure of HITATOUCH interactive panels are modular, each configuration parts (as OPS PC, driver board) are separated which is very convenient for maintenance, repair and upgrading in the future. User could just open the part which need to be changed, no need to open whole device again.
The video is showing how to attachable the OPS PC of interactive touch monitor, include the driver board part.
Welcome to offer some new ideas about the interactive displays, your suggestions would be highly appreciated!
Mainly used to commerce, such as supermarket, hotel, restaurant, station, airport for information, menu list, instruction … checking.
IR multi touchscreen, support 10users writing, edit /annotation, finger touch, smart screen panel, full touch to switch channels
FHD, 1920*1080P, modual screens panel, LED backlignt, A+ quality
the interactive panel with OPS PC slots, Intel I3 / I5, I7, 4GB /8GB RAM, 120G /240G SSD, WIFI

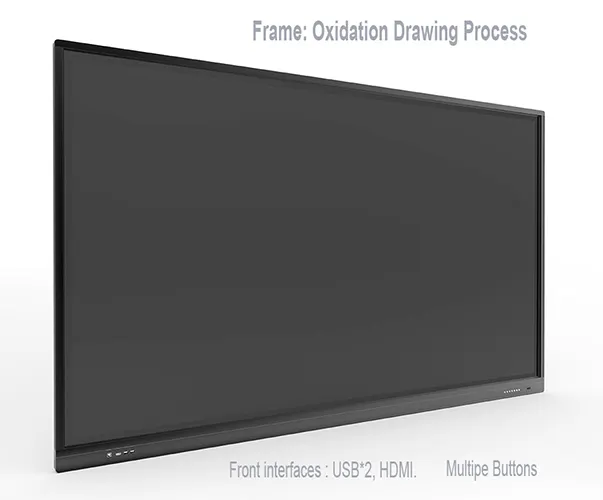

perfect finish with modual design to easy maintanence & repair, wire-drawing process, painting color

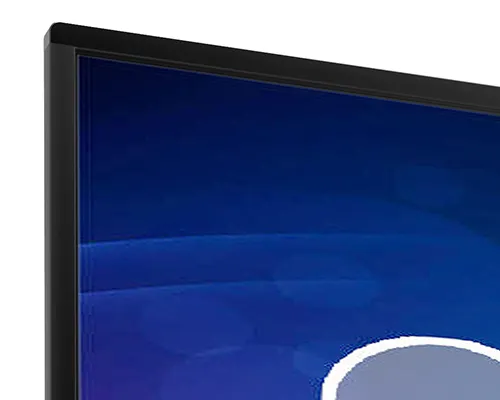

Metal frame with round corner, painting color and wire-drawing process
Modual deisgn, pull out /attached OPS PC easily to be maintanence convenience.
Front bottom interfaces: USB2.0*2, HDMI*1
Clearn Finish, Modual Design, Round Corner
- front taking off design for infrared touchscreen frame to easily maintaience and repair.
- round corner with oxidation drawing process frame.
- 4mm tempered glass. Anti-glared option

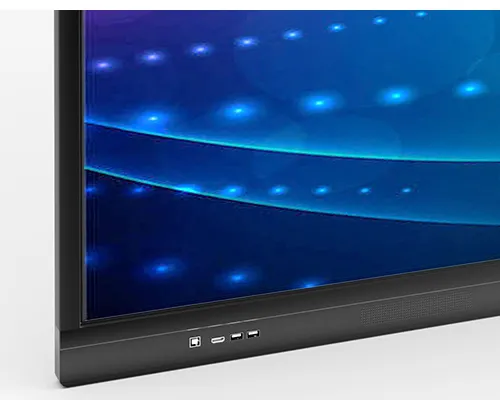

- Front interfaces: HDMI*1, USB*2. and 8 *buttons

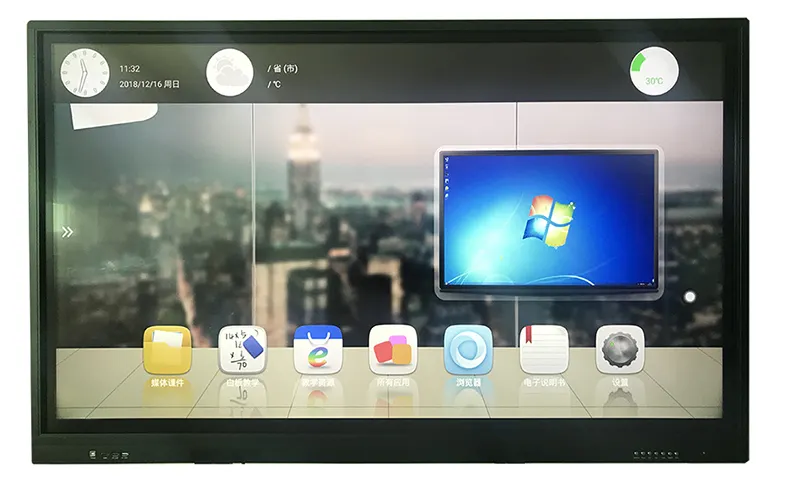

Touching the screen to control all actions
Along the frome pull up to get the menu channels, include TV System, Android, OPS PC, HDMI 1/2/3, Sources, Touch Display, then user could select the channels accordingly, include adjust the screen parameters.

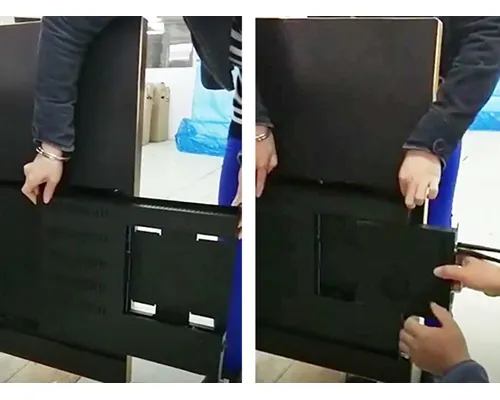

Modual OPS PC
This interactive flat panel with OPS SLOTs which is for OPS PC attachable.
User could select the OPS PC configuration
Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU
Chipset: H61 /H81 /H110.

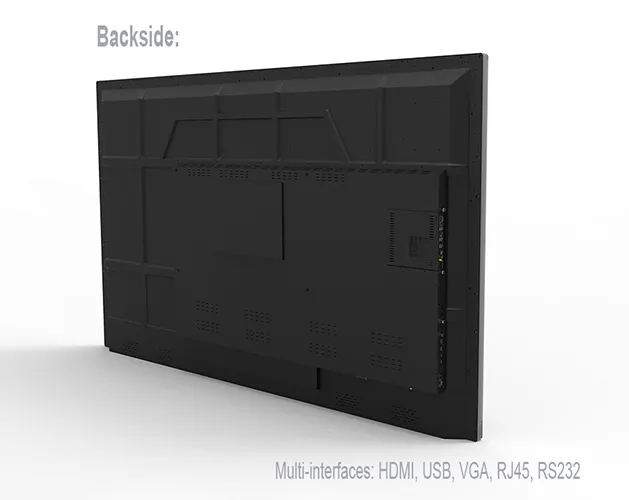

Multipe interfaces: HDMI, USB, VGA, RJ45, RS232.
Multipe Channels
This digital display could be built in Android OS also, andriod 5.0 / 6.0 OS.
Free whiteboard software option
Multipe Apps for users offer powerful features, google apps, clock features ...
This interactive touchscreen is compatiable with all format player, video, audio .. etc.
One key power on/off
By the remote control to power on / off the touch screen and OPS PC for convenience use.
Screen Panel | Panel size | 32inch | 43inch | 50inch | 55inch | 65" |
Screen panel | TFT screen panel, LED backlight | |||||
Display (mm)(H/V) | 1209.6 x 680.4 | 941.2 X 527.4 | 1095.1 X 615.5 | 1209.6 X 680.4 | 1428.48 x803.52 | |
Display Rate | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | |
Max resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | |
Display color | 16.7M | 1.07G | 0.21(H) mm x 0.63(V) mm | 16.7M | 1.07B | |
Pixel (mm)(H/V) | 0.21(H)mm×0.63(V)mm | 0.0798*0.2394 | 0.19025 x 0.57075 | 0.21 x 0.63 | 0.248x 0.744 | |
Brightness (nits) | 300cd/㎡ | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 360cd | |
Contrast | 4000:01:00 | 4000:01:00 | 5000:01:00 | 4000:01:00 | 4000:01:00 | |
Visual angle | ±178° | ±176° | ±178° | ±176° | ±178° | |
Response time | 8ms | 8ms | 9.5ms | 8ms | 6.5ms | |
Speaker | MAX power: 15W*2 | |||||
TV System | TV mainboard | PAL, NTSC/SECAM (Optional) | ||||
Input | RFx1,Y Pb Pr *1; CVBS*2; CVBS Audio L/R *2; PC Audio*1; VGA*1; Media USB2.0*1; HDMI*1; HDMI built-in *1 | |||||
Output | Earphone*1; AV*1; HDMI*1; HDMI built-in *1; PC USB*2 | |||||
Press button on front | POW、IN、MENU、VOL+、VOL-、CH+、CH-、PC | |||||
Video Features | 3D digital comb filter、3D image motion noise reduction、3D Motion Adaptive Digital comb filter | |||||
OPS PC | CPU | Intel Core I73770 i52300/i32100/J1900/Celeron CPU 1155-pin; Integrated HD Graphics;built-in HD audio 6(Realtek ALC661) | ||||
Memory | DDR3 1333Mhz 4G/8G option | |||||
SSD | 120G SSD | |||||
Wi-Fi | Optional, Wi-Fi with Antenna, 802.11 b/g/n | |||||
PC Ports | HDMI×1,VGA×1,USB2.0×2,USB3.0×2,RJ45×1,PCAUDIO×1,MIC×1,RS232×1 | |||||
Touch System | Multi Touch | Infrared technology, support 6point - 10point touch; finger or any objects touch | ||||
Glass | Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | |||||
Resolution | Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | |||||
Features | No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recongize etc | |||||
OS | Support Windows 7/ Windows 8 | |||||
Whiteboard software | Option | Option, widely used to education,conference,military etc; multi-functions and multi-languages; compatible with Windows OS | ||||
Power | Power supply | AC100~240V 50 /60 HZ; Consumption: Standby <1W | ||||
Max consumption | ≦60W | ≦80W | ≦100W | ≦120W | <=250W | |
Environment | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | |||||
Appearance | Black color/ Aluminum alloy/ metal case | |||||
Package Dimension | Dimesion | 795.4*490*116 | 1018.4*606.5*72.8 | 1174.9*697.3*73.27 | 1287.9*761.4*73.2 | |
Mount (mm) | 27.5mm | 32mm | 31.93mm | 32mm | ||
Package (mm) | 890*575*210 | 1150*730*225 | 1325*835*235 | 1495*925*235 | ||
N/W & G/W (kg) | 20 & 25kg | 29 & 36kg | 30& 38kg | 54 & 65kg | ||
Quality Certificate | ISO9001, CCC, CE, FCC | |||||
Accessories | User Guide, Warranty card, Remote Control, USB Cable 3m; Power Cable 1.5m; Touch Pens /2pcs, |
