Custom portable document visualizer portable factory for student

Company Advantages
1. The best fabric technology is used for ITATOUCH portable document camera production. This is of fundamental importance as the fabric, the surface responsible for the reflection and projection of the image, is the heart of any screen.
2. Our quality experts test this product for high performance.
3. The implement of quality assurance ensures that it meets the company’s quality criteria.
4. The devotion to the quality of portable document visualizer helps ITATOUCH to be a leading manufacturer in the industry.

Product  Description

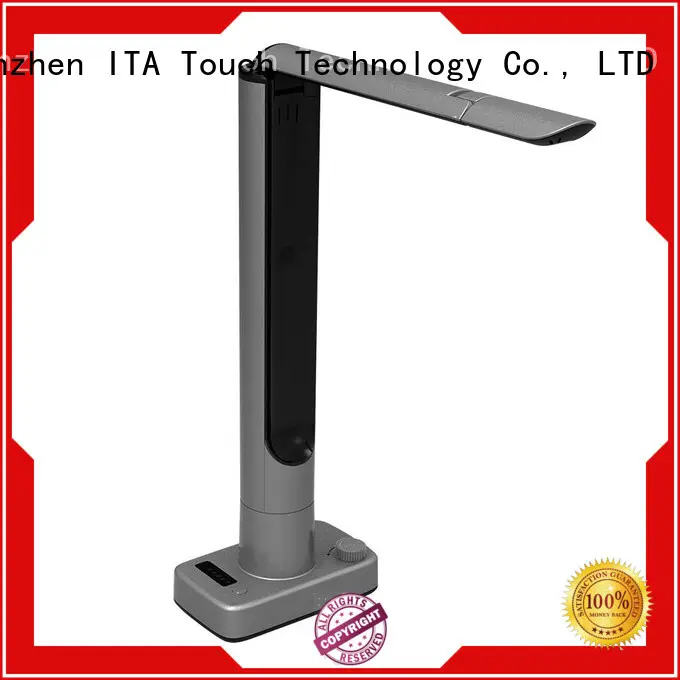

ITATOUCH Wireless Intelligent Document Scanner integrated the high definition video camera and smart control management,  and adopt 5.8G WIFI  with USB internet adapter and magnetic charging method offer user free, easy teaching/presentation experience.




Specification:

Model#	K6
Construction	Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed.
Open method for box	the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock
LENS	CMOS, 8 megapixel
Resolution	1700 TV line in the center, 1400-1600 TV line around
Aperture and lens direction	Fixed aperture, vertical down
Operating temperature and humidity	－15℃～45℃；20%～90％ RH
Shooting range	Take full A3 paper at the vertical distance from the sensor surface to the document (lens can be raised)
Shooting type	Courseware, documents, documents, notes, pictures, magazines and books, ID cards, three-dimensional objects, etc
zoom mode	AF autofocus + MF touch focus on demand
Interface type	USB 2.0 free driver
transmission mode	USB wire & IFI5 wireless
Switch mode	Dual modes free switch, no need close whiteboard software, intelligent auto-recognize image
Interactive button	The base with the button integrated the power on/off, shoot the image, and zoom in/out by rotating.
Charger mode	the base with magnetic,  put inside to charge immediately
Battery	1 set of LED light, power percentage and charge flashing indication (10% ~ 100%)
Battery Capacity	Polymer cell 5600mAh; theoretical battery life 6-8 hours (depending on the environment)。
Power Adapter	Standard 5V ﹤ u 2.5A power adapter, it takes 4-5 hours to fully fill from 0-100%
working frequency	50Hz，support 60Hz
Light supplement mode	touch switch（three sections of the light adjustment）
Video format	MJPG/YUY2
The output frame rate of USB mode	MJPG：3264×2448(15~20 frame ), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
	YUY2（support android OS）：3264×2448(2frame), 2592×1944(3frame), 640×480(30frame)
The output frame rate of WIFI 5G wireless	MJPG：3264×2448(15~20frame), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
Exposure / white balance	Power on auto exposure, white balance
Time of exposure	1~2S
Colorful	24bits
The rotation angle of the cross arm	Rotate up and down to 270 degrees, left and right to 180 degrees
USB Cable	USB cable 5m (optional)
USB wireless network card	Standard configuration:  WiFi 5g wireless network card

Installation Applicaton:

Inside the box, the visualizer will automatically be charging and connecting with PC by cable.

Company Features
1. ITATOUCH is a developed mature company who manufactures exquisite portable document visualizer .
2. Our company has an extensive sales network. Currently, we are connected with many reputed customers nationally and internationally including the US, UK, Dubai, Israel, Saudi Arabia, Oman, Srilanka & many more.
3. Following years of efforts in the document camera for classroom manufacturing industry, Shenzhen ITA Touch Technology Co., LTD is worthy of your trust. Inquiry! Shenzhen ITA Touch Technology Co., LTD provides high quality document visualizer price for a number of world famous brands. Inquiry! Maintaining the top position in the business puts particular pressure on the team, but it's a challenge welcomed by most of our people. Inquiry!
