4K Smart Interactive Whiteboard Display Wireless Projection for Classroom & Business Collaboration
- 4K Ultra HD Resolution
- Optional QLED Technology
- Android 14 Platform
- MTK9679 / RK3576 Chipset
- 8GB + 128GB Configuration
- Intel OPS Expansion
- 40-Point Touch Technology
- Low-Latency Writing Experience
- Wireless Screen Sharing
- HDMI / USB / LAN / Type-C
- 48MP Camera Optional
- AI Noise Reduction Microphones
- Remote Management Platform
- Smart Classroom & Conference Solution
- CE, FCC, RoHS, TUV-CB Certifications
- OEM / ODM & SKD Support

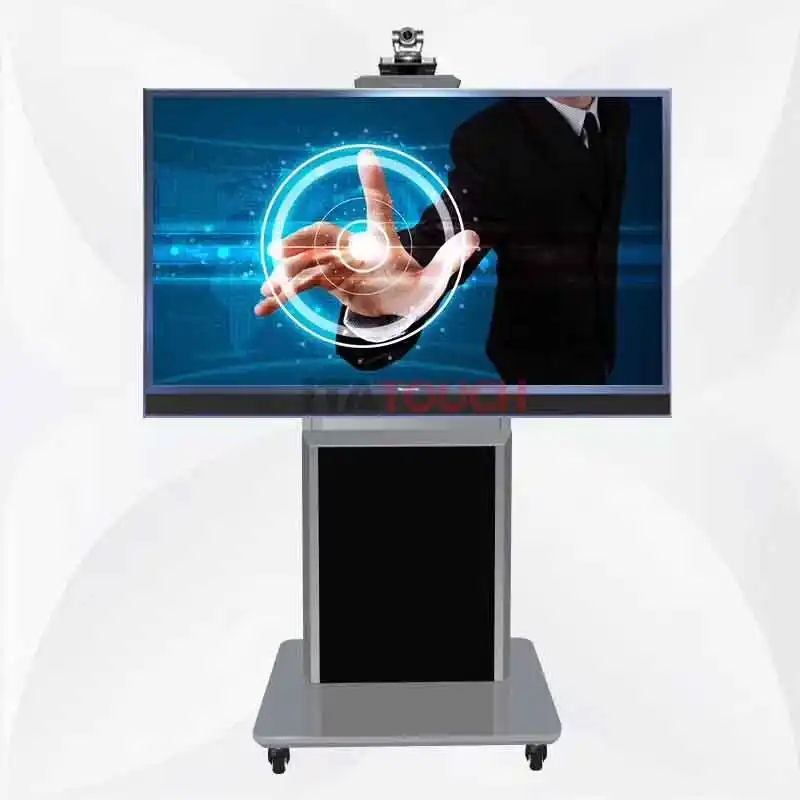

Factory OEM 75 Inch Lcd Touch Display Whiteboard Smart Board Interactive Flat Panel
Product Details
* Key Features for Interactive Flat Panel
* Detailed Picture for Interactive Touch Screen
Front Frame
* Application for LED Interactive Whiteboard
Specification Of Interactive Touch Display
Android 8.0 OS
| Screen Panel | |||
| Sizes | 54.64inch | 64.53inch | 74.52inch |
| Screen Panel Type | D-LED | D-LED | D-LED |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness (type) | 350 cd/m2 | 400 cd/m2 | 400 cd/m2 |
| Contrast | 4000:1 | 4000:1 | 1200:1 |
| Display Area | 1209.6*680.4 mm | 1428.5*803.5 mm | 1649.66*927.94mm |
| Pixel (mm)(H/V) | 0.21 x 0.63 | 0.372x 0.372 | 0.429 x 0.429 |
| Display Rate | 16:9 | 16:9 | 16:9 |
| Reviewing Angle | 178° | 178° | 178° |
| Colorful | 10bit,10.7B | 10bit,10.7B | 10bit,10.7B |
| Response time | 8ms | 6ms | 6ms |
| Lifetime | Above 50,000h | Above 50,000h | Above 50,000h |
| Touch Glass | AG | AG | AG |
| Sound System | |||
| Speaker | 2*15W | 2*15W | 2*15W |
| Video type | PAL,NTSC,SECAM | PAL,NTSC,SECAM | PAL,NTSC,SECAM |
| Sound type | D/K, B/G, I,M | D/K, B/G, I,M | D/K, B/G, I,M |
| Android System | |||
| Android OS | Andriod 8.0 OS | Andriod 8.0 OS | Andriod 8..0 OS |
| Android CPU | CPU: Dual-core A73 and dual-core A53 , 1.5GHz; GPU: Quad-core MaliG51 | ||
| Flash Nandi EMMC | 32G | 32G | 32G |
| RAM DDR3 | 3G | 3G | 3G |
| Input Resolution | 1920*1080/60HZ, 3840*2160/60HZ | ||
| Front Frame | HDMI, USB2.0, USB3.0, TOUCH-USB | ||
| Input | 2*HDMI, 1*VGA, 1*YPBPR, 1*AV (3.5mm jack in), 2*USB3.0, 1*TOUCH-USB, 1*RS232, 1*SD (support MAX 128GB) , 1*RJ45, 1*WIFI 5G, 1*bluetooth , 1*OPS PC SLOT 80PIN | ||
| Output | 1*SPDIF, 1*HDMI, 1*Earphone, 1*AV | ||
| Front Button | POWER, MENU, VOL- , VOL+, ECO, ENTER, HOME | ||
| Touch Technology | |||
| Touch Points | Infrared 20-touch points, support 2, 6, 10, 20points | ||
| Touch Method | Finger or Pens, any objects | ||
| Calibration Technology | Infrared magnetical sensor | ||
| Accuration | <2mm | <2mm | <2mm |
| Resolution | 4096*4096/16384*16384/32768*32768 | ||
| Response time -1st touch | <15ms | <15ms | <15ms |
| Continous touching | <8ms | <8ms | <8ms |
| Light Sensor | >220dot/second | >220dot/second | >220dot/second |
| Touch interface | USB | USB | USB |
| Support OS | Support WINDOWS /LINUX /MAC /Android | ||
| Touch objects | ≥Φ3mm | ≥Φ3mm | ≥Φ3mm |
| Touch times | above 6000millions times at same point | ||
| Software under Andriod OS | |||
| Whiteboard App | Yes | Yes | Yes |
| Mirror Server | Option | Option | Option |
| Google App | Compatiable | Compatiable | Compatiable |
| Power Supply | |||
| Power | AC(100-240)V~50/60HZ | ||
| Rated current | 1.5A | 2.5A | 3A |
| Environments | |||
| Temperature | Working Temperature: 0°C to 40°C ; Storage Temperature :-20°C to 55°C; | ||
| Humidity | 20%-80% RH at 40°C, non-condensing | ||
| Others | |||
| The shell | Black bezel/ Aluminum alloy frame with Oxiation drawing treatment / metal shell of backside | ||
| Accessories | Touch Pen x2 | Touch Pen x2 | Touch Pen x2 |
| HDMI cable (1.5M) x1 | HDMI cable (1.5M) x1 | HDMI cable (1.5M) x1 | |
| USB cable (1.5M) x 1 | USB touch cable (1.5M) x 1 | USB touch cable (1.5M) x 1 | |
| Power cable(1.8M) x 1 | Power cable(1.8M) x 1 | Power cable(1.8M) x 1 | |
| Remote control x 1 | Remote control x 1 | Remote control x 1 | |
| Package Dimension | 1385*195*870mm | 1630*210*1060mm | 1865*220*1180mm |
| Net Weight | 39Kg±1Kg | 45Kg±1Kg | 79Kg±1Kg |
| Gross Weight | 49.5Kg±1.5Kg | 62.47Kg±1.5Kg | 85Kg±1.5Kg |
| Quality Compliance | CE, FCC, ROHS, ISO | ||
Other sizes 86", 98" Interactive Panel option
Free Whiteboard Software for Interactive Multi Touch Screen Display
(OPS PC Windows 10 OS)
Brief Functions Description for ITA TOUCH Whiteboard Software
ITA Touch Whiteboard Software has powerful features, and very easy use for user.it can hide all display items, just show
whiteboard floated icon, adjust the main MENU direction, and free change short-cut list to display on right side, or left side,
hide source ... etc.
- It is FREE Whiteboard Software for our clients
- Normal features all offered, such as zoom, rotated, annotation, edit, play video, images, all course of tools, background
- The key features are to
1. Directly drag the images, or content words from website, it is quite convenient for teacher/conference... etc.
2. It has two-screens, and which can transport the content to another screens.
3. Lab tools and all kinds of course pictures.
- Support multi touch points.
- Multi-languages : English, Spanish, Polish, Russian, Arabic, Germany, France ... etc.
- OEM supporting - provide the whiteboard software with client LOGO, or add some features option
Optional Product
These interactive devices could be equipped with Interactive Touch Display, customer can select them per the actual requirements. Welcome to inquiry!
Please do not hesitate to contact with us if there is any query!
Packing for Interactive Touch Panel
Small Qty Order (1~5pcs) to be Air shipping EXPRESS /DHL/FEDEX/UPS....
Bulks (Obove 10pcs) to be sea shipment.
