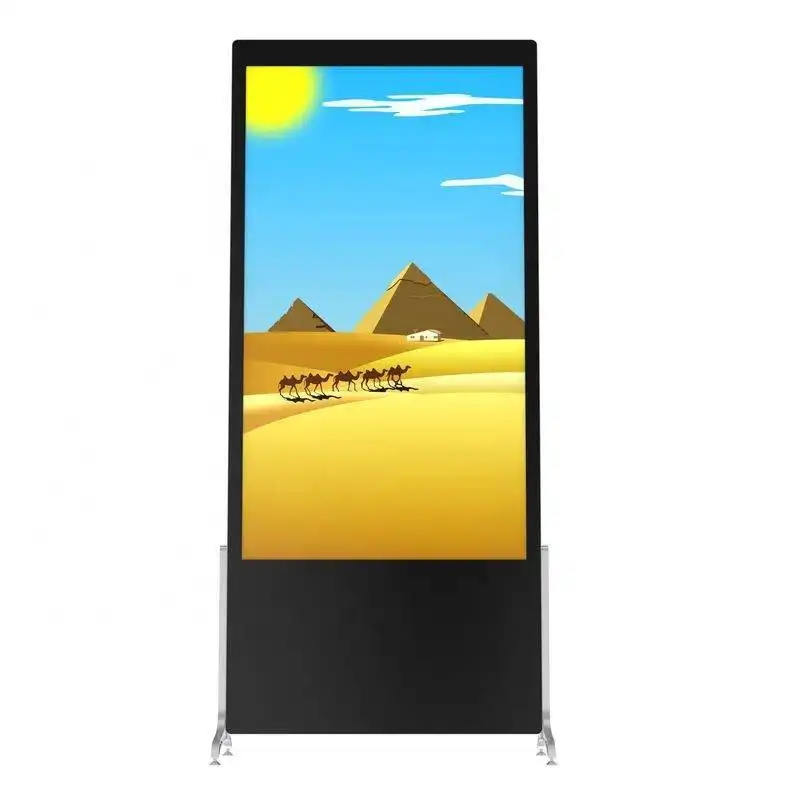

High quality floor stand android lcd c-poster digital standing poster display
ITATOUCH LCD digital signage adopt LED backlight screen panel with FHD 1080P resolution, include wall mounted and floor stand installation, it has Android and PC LAN version, card reader version option.
The materials of the case are aluminum frame with drawing painted treatment and metal backside, front panel usually is metal panel with painted color, and covered edge finish.
Interactive touch screen option – infrared multi touch or capacitive touch technology.
ITATOUCH support the customized device, include color, configuration, shape and functions. OEM welcome!
* 1080P Full HD Display
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying
* Security Design, industrial mainboard, and tempered glass
* Support full media format files
Hardware & SoftwareHardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
Net-working management software
Each terminal/unit installed, the managment software to be installed computer sever if needs.
Above dimension of the sketch is for 55 inches floor stand display, other sizes option - 32", 43", 50", 55", 65", 75"
Customized Clarification:
a series of dimensions for various sizes, when the shape and configurations of the free standing digital signage are different, it will be a little change measurements.
The change / customized include the following1. Out-looking & Color, include based stand
2. Configurations different: card reader, android LAN (default equipment), PC built-in
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 20pcs)
5. Built-in printer, card reader ... etc.
The Technical Parameter for Advertising Display
Remark: just for reference, the actual parameters will be some difference per different components
Display Size | 32" | 43" | 50" | 55" | 65" |
Product Dimension | 779*475*61.6 | 1800*635*458.5 | 1850*707*460 | 1900*755.9*460 | 2097.87*905*560 |
Active area | 696*392 | 940.896 x 529.25 | 1073.78x604 | 1209.6x680.4 | 1428.48x803.52 |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Contrast Ratio | 1400:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Brightness | 360 cd/m² | 300cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
Response time | 6ms | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
Color | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 10bit 1.07B |
Viewing angle | 178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
Stereo speaker | 10W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | | | | |
| HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1 | | | | |
PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 | | | | |
| PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI-compatible*1, DVI*1,
VGA*1, RJ45*1,RS232*1, MIC*1 | | | | |
Management Software | the default standard with advertising publishing software for the terminal android unit (including console and playback terminal) LAN Network
computer server + unit terminal | | | | |
| support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … | | | | |
Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects | | | | |
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass | | | | |
Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃ ; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | | | | |
| The day longest time : 7/24 (days/hours) | | | | |
Power | AC 100-240V 50/60HZ; Stand by ≤1W | | | | |
| ≤60W | ≤60W | ≤80W | ≤150W | ≤200W |
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | | | | |
Accessories | CD, Power Cable 1.8m, User Manual | | | | |
Carton Package
Usually the interactive touch display will be packed into the rigid carton box with foam and bag, and also sealed a plastic film to avoid the rain weather
Wooden Case for Air shipment
Air / Express shipment, ITA Touch company will require the forwarder settle the wooden case to ensure the transaction safety.
Wooden Pallet for Sea Shipment
Sea or Air shipment for bulks goods, ITA Touch will settle the wooden pallet with poly film to ensure safety and avoid humility during long time ship.
The floor standing totem will be packed by two cartons usually
Both the body and base stand were be packed separately to save volume weight, the more details please check with salesman, thank you!
The product is sold well to overseas market and earns a good reputation among customers. With the characteristics of Intelligence Recognization, our products are widely recognized.
Our ITATOUCH branded products have been widely acknowledged on the global market. With the characteristics of Intelligence Recognization, our products are widely recognized.
Establshed in the year of 2009, Shenzhen ITA Touch Technology Co., LTD is the leading manufacturer, wholesaler and trader of Floor Stand and much more. We offer these at market leading rates. All these products are quality assured by the executive to ensure perfect qualities and longer life. Highly demanded, these products are accessible from the market in different sizes and designs.
