+ 86 13582949978Infrared Touch Display
Only 12mm Width
of the Frame
INFRARED MULTI-TOUCH
The color and out-looking can be customized.
White / black, sliver ... etc.
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
High-quality interactive smart boards touch factory for government
Model#:
HT-55D S series
Size Range:
32
Touch Tech:
IR multi touch technology
Resolution:
1920x1080
OS:
Android / Windows OS
Interfaces:
USB3.0, HDMI, MIC, RS232, VGA
Computer :
2GB
Supply Ability:
2000Piece/month
Min. Order:
1Piece
Payment:
TT
Shipping:
By sea, by air
Port:
SHENZHEN
Products Description
In modern society, wherever and whenever the advertising display for commerce communication which is more and more important, the digital display, especially the unit with touch screen which could provide the direct information by video and internet, and let the user have the real experience to select what they want to need.

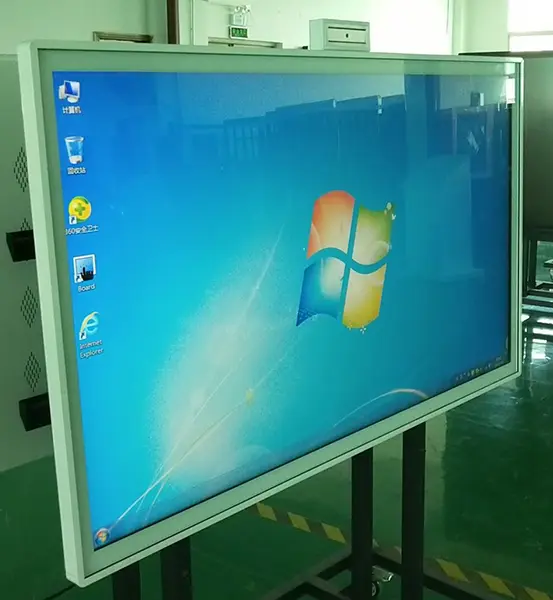

ITATOCUH develop a commerce display with an infrared touch screen, and which has a super narrow frame, only 12mm
Color customized: White / Black
Usually this LCD interactive digital display with android OS, 2GB RAM, 4GB/8GB flash Nandi
( customized service: customer can select the android board with various RAM and Storage for the touch display)
ITATOUCH LCD digital signage display adopts an LED backlight screen panel with FHD 1080P resolution, usually the wall mount default configuration is an android LAN network version.
The materials of the case are aluminum frame with drawing painted treatment and metal backside with painted color, perfect finish. Infrared Multi-Touch Screen Technology CUSTOMIZED & OEM supporting!
* IR 10points touch screen, finger touch to get what you wanna.
* 4mm tempered glass, anti-glare / reflective glass option
* The default configuration: Built-in Android board, 2GB RAM, 4GB Flash Nandi
* The interfaces on the backside, HDMI in, USB, VGA
* Support full image and video format files for the player
* Standard equipment: wall-mounted, power cable
* Table stand option, the built-in camera also - needs to be customized.

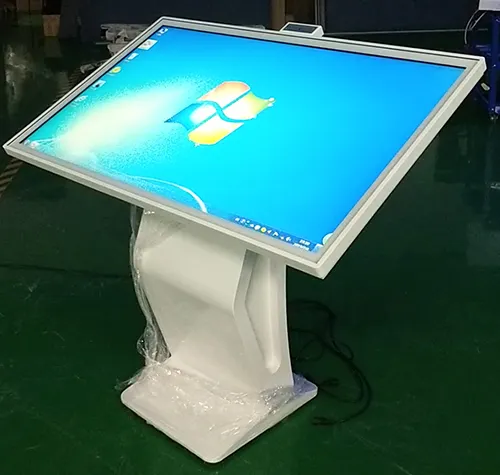

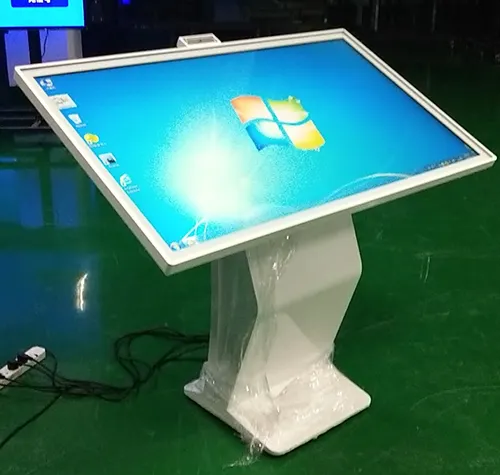

With table stand to be an Interactive Multi-Touch Inquiry Table -
Camera built-in the touch panel also as below the picture
Hardware

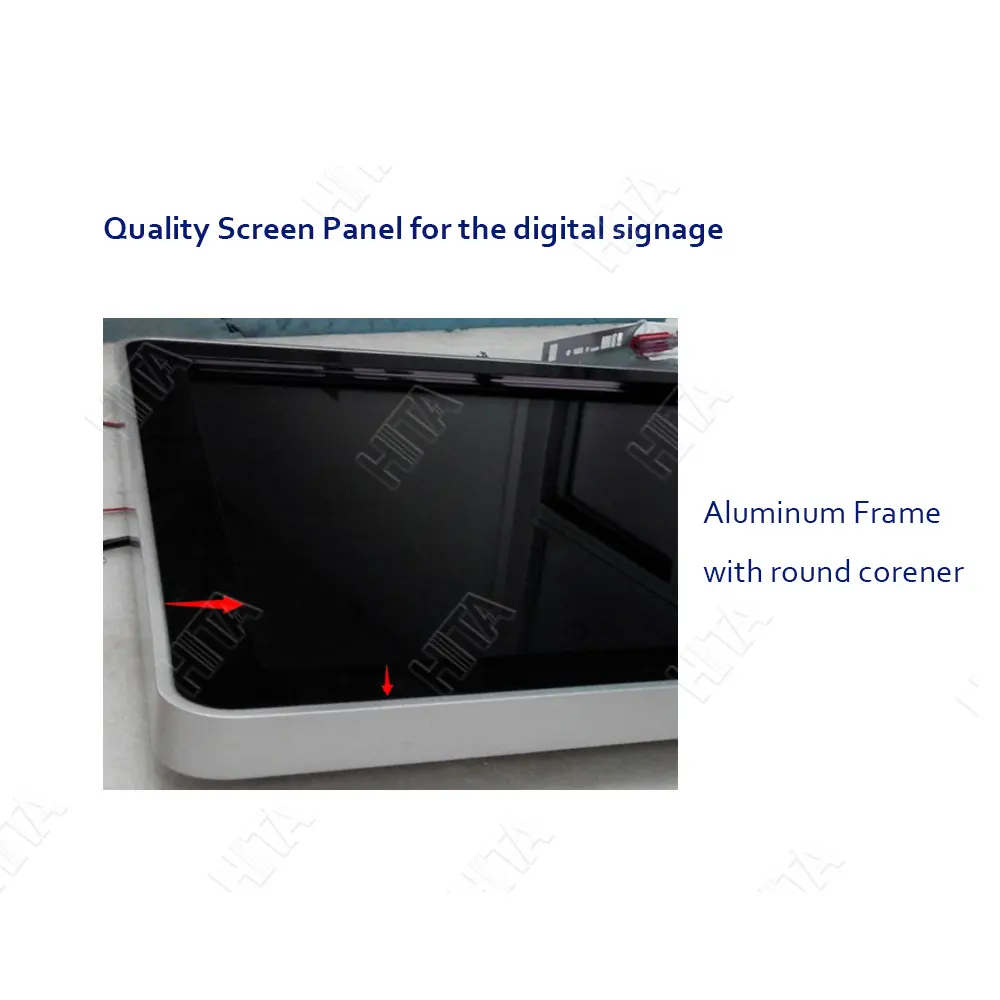

Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shape

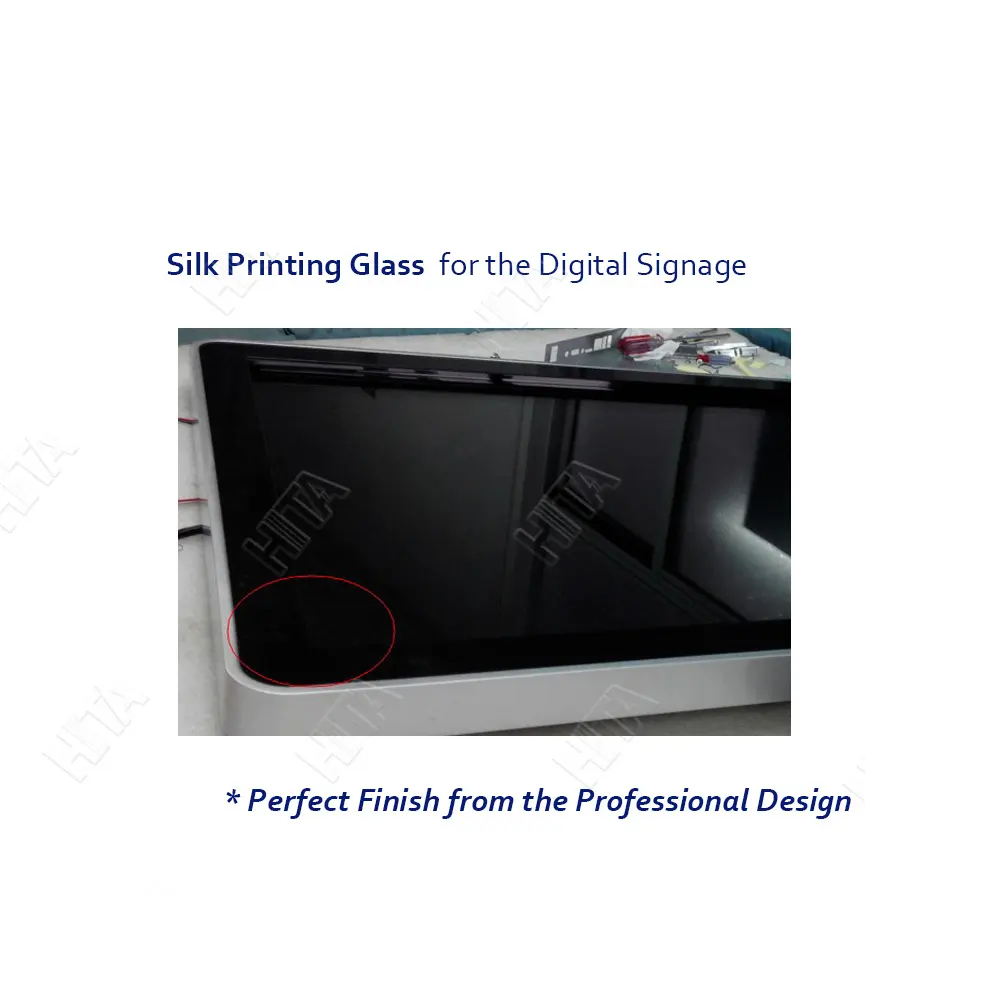

Screen panel: High definition display with printing
ITA TOUCH manufacturer adopt A+ quality screen panel for the touch screen unit

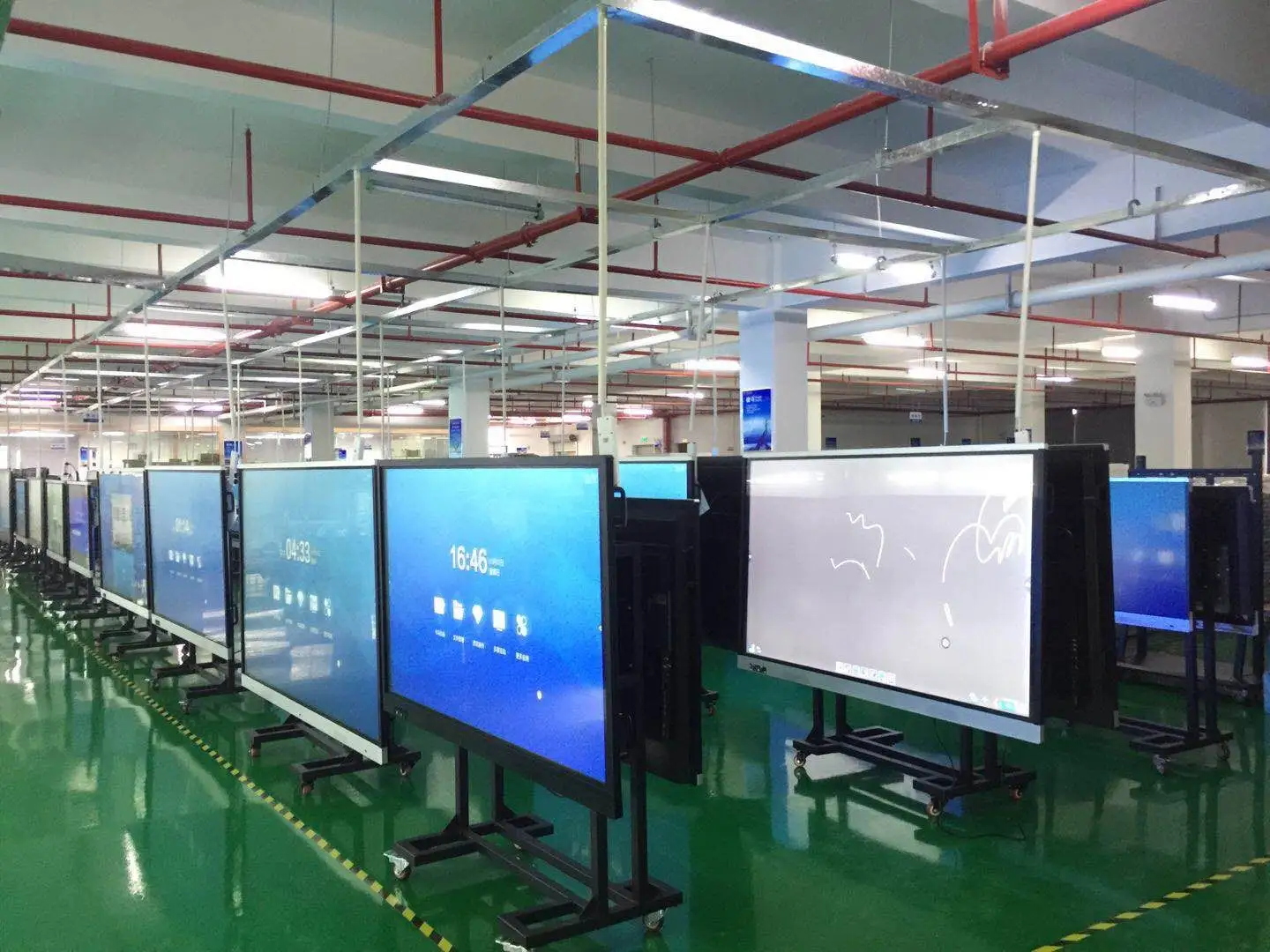

Factory LCD Multi-Touch Screen Production Line
ITA TOUCH factory area 3500 square meters own enough capacity for you to join us to expand more markets.
The Customized Clarification:
ITATOUCH company support the customized products, the user just offer below items to talk with sales,
The change / customized include the following
1. Out-looking & Colorful
2. Configurations different: android LAN (default equipment), PC built-in, touch monitor only
3. Touch Screen built-in, Infrared or Capacitive multi-touch
4. Built-in Camera (MOQ: 50pcs)
5. Built-in printer, card reader ... etc.
The wall mounted commerce digital display : 32”, 43“, 49"/50", 55", 65"

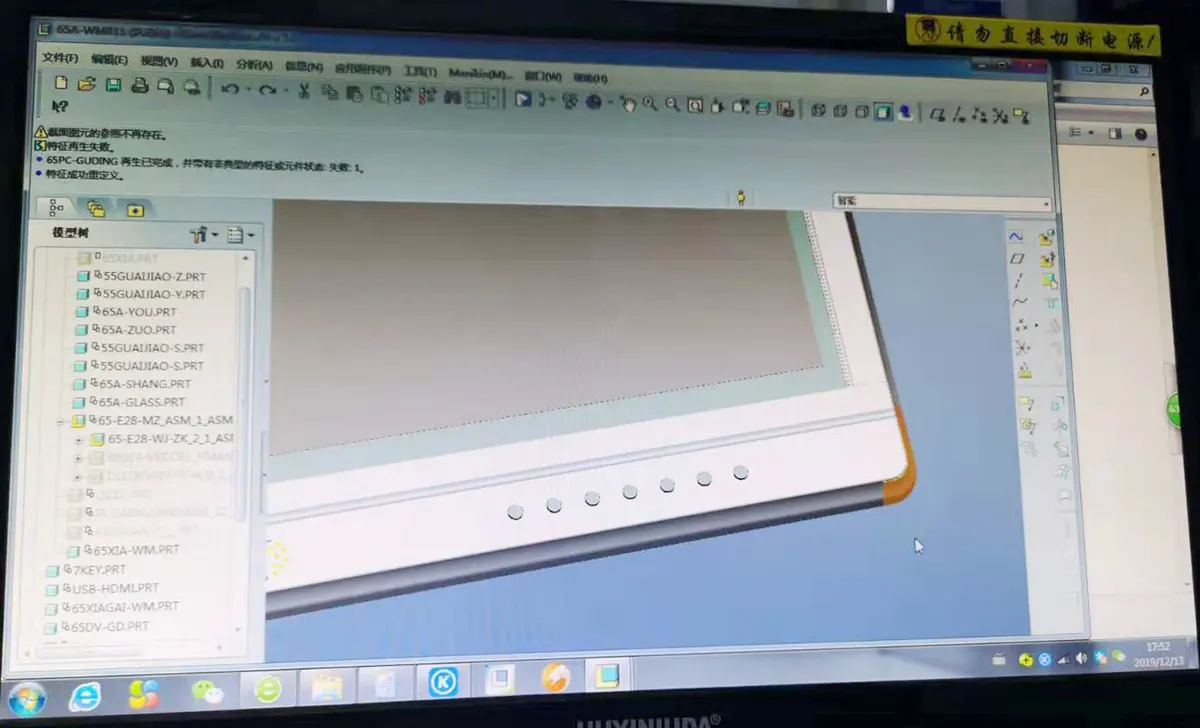

Manufacturing Technique
The Technical Parameter for Multi touch screen panel display
Specification
| Specification | |||||
| Display Size | 32" | 43" | 49" | 55" | 65" |
| Product Dimension | 779*475*61.6 | 1010*603*75.8 | 1150.5*682*77.2 | 1289*760*81.6 | 1508*883*85.6 |
| Active area | 696*392 | 943.2.4*531 | 1077*607.5 | 1209*680 | 1427.08*805.32 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Contrast Ratio | 1400:1 | 1400:1 | 3000:1 | 4000:1 | 4000:1 |
| Brightness | 360 cd/m² | 360 cd/m² | 380 cd/m² | 380cd/m² | 350 cd/㎡ |
| Response time | 6ms | 6ms | 6.5ms | 5.5ms | 6.5ms |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing angle | 178° | 178° | 178° | 178° | 178°(H) / 178°(V) |
| Stereo speaker | 10W, 8Ω | 10W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android Solutions | Rk3368 eight-core 64 bit cortex-a53, up to 1.5g in frequency, 2G in memory and 8g in flash memory | ||||
| Interfaces: HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1，WIFI×1 | |||||
| PC Solutions Option | Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Multi-Touch Technology | Infrared multi touch screen panel, support 6point - 10point touch; a finger or any objects touch | ||||
| Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | |||||
| Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | |||||
| No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recognize etc | |||||
| Support Windows 7/ Windows 8 / Windows 10 | |||||
| Shell | Color and shape to be customized - the default: Aluminum frame, metal case backside.4mm Tempered Glass | ||||
| Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | ||||
| The day longest time: 7/24 (days/hours) | |||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| ≤60W | ≤100W | ≤130W | ≤130W | ≤150W | |
| Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | ||||
| Accessories | wall mounted, Power Cable, User Manual | ||||
Remark: just for reference, the actual parameters will be some difference per different components
Configuration of Android boards:
1. Rk3288 Quad Core Cortex-A17, frequency up to 1.8GB, memory 2GB, flash Storage: 8GB
2. Rk3399 Double Cortex-A72 + four cortex-A53, frequency up to 2.0 GHz, memory 2GB, flash storage: 8GB
Product packaging
Carton Package
Carton Package
Usually, the multi-touch display will be packed into the rigid carton box with foam and bag, and also sealed a plastic film to avoid the rain weather

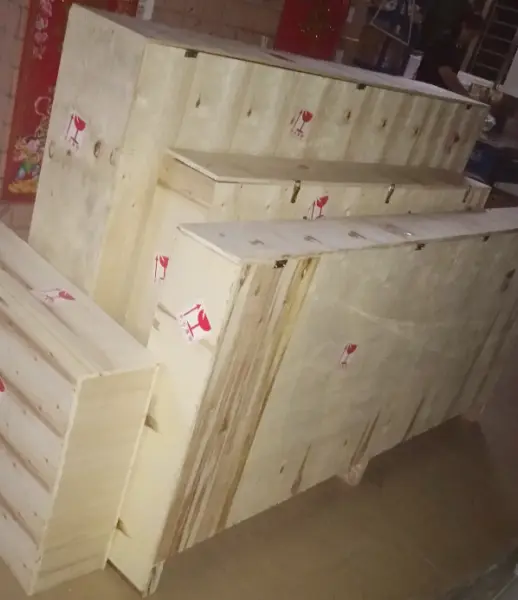

Wooden Case for Air shipment
Wooden Case for Air shipment
Air / Express shipment, ITA Touch company will require the forwarder to settle the wooden case to ensure transaction safety.

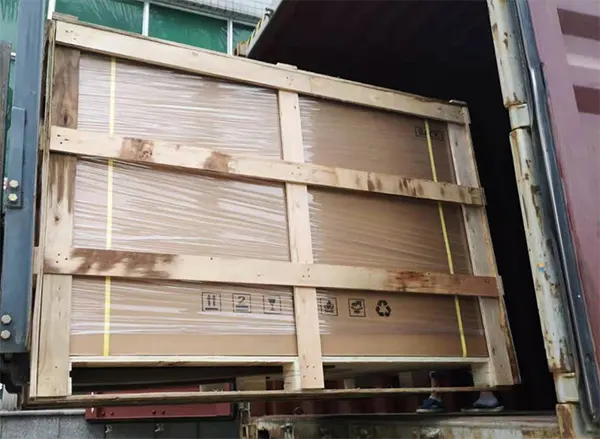

Wooden Pallet for Sea Shipment
Wooden Pallet for Sea Shipment
Sea or Air shipment for bulks goods, ITA Touch will settle the wooden pallet with poly film to ensure safety and avoid humility during long-time ship.
Our Advantages
Support OEM / Customized Products
Support OEM / Customized Products
* LOGO display on the device
* Support small order with customized design for Touch Table, information Kiosk Display..etc.
* Special configurations and features customized.
7*24hours on-line pre-sales & after-sales service
7*24hours on-line pre-sales & after-sales service
* ITA TOUCH people always here, provide quick response anytime & anywhere.
* Offer the whole sets of the solutions with patient & detailed clarification according to client various requirements.
* Quick and fully tracking delivery, feedback follow-up, Technical support, maintenance & replacement instructions, worry-free service.
100% inspection to ensure the quality guarantee
100% inspection to ensure the quality guarantee
* ITA TOUCH factory seriously complies with the international quality standards, such as the CE, FCC, ROHS, BIS, CB.
* The Audit from the initial infrared PCB starting, LCD screen panel inspection, product assembling test, high-temperature baking auditing, all interfaces, and features trial, every process will be done 100% testing.
Manufacturing Technique
The Technical Parameter for Multi touch screen panel display
Specification
| Specification | |||||
| Display Size | 32" | 43" | 49" | 55" | 65" |
| Product Dimension | 779*475*61.6 | 1010*603*75.8 | 1150.5*682*77.2 | 1289*760*81.6 | 1508*883*85.6 |
| Active area | 696*392 | 943.2.4*531 | 1077*607.5 | 1209*680 | 1427.08*805.32 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Contrast Ratio | 1400:1 | 1400:1 | 3000:1 | 4000:1 | 4000:1 |
| Brightness | 360 cd/m² | 360 cd/m² | 380 cd/m² | 380cd/m² | 350 cd/㎡ |
| Response time | 6ms | 6ms | 6.5ms | 5.5ms | 6.5ms |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing angle | 178° | 178° | 178° | 178° | 178°(H) / 178°(V) |
| Stereo speaker | 10W, 8Ω | 10W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android Solutions | Rk3368 eight-core 64 bit cortex-a53, up to 1.5g in frequency, 2G in memory and 8g in flash memory | ||||
| Interfaces: HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1，WIFI×1 | |||||
| PC Solutions Option | Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Multi-Touch Technology | Infrared multi touch screen panel, support 6point - 10point touch; a finger or any objects touch | ||||
| Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | |||||
| Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | |||||
| No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recognize etc | |||||
| Support Windows 7/ Windows 8 / Windows 10 | |||||
| Shell | Color and shape to be customized - the default: Aluminum frame, metal case backside.4mm Tempered Glass | ||||
| Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | ||||
| The day longest time: 7/24 (days/hours) | |||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| ≤60W | ≤100W | ≤130W | ≤130W | ≤150W | |
| Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | ||||
| Accessories | wall mounted, Power Cable, User Manual | ||||
Remark: just for reference, the actual parameters will be some difference per different components
Configuration of Android boards:
1. Rk3288 Quad Core Cortex-A17, frequency up to 1.8GB, memory 2GB, flash Storage: 8GB
2. Rk3399 Double Cortex-A72 + four cortex-A53, frequency up to 2.0 GHz, memory 2GB, flash storage: 8GB
