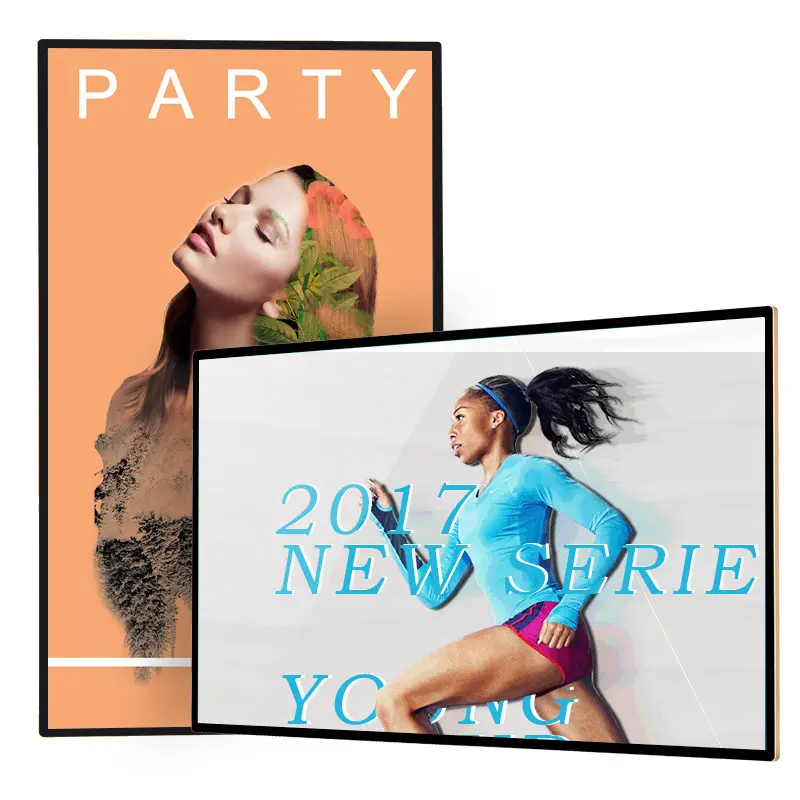

ITA TOUCH provides OEM service, supports drop shipping, and samples acceptableItatouch products including interactive whiteboard, interactive flat panels, interactive boards with ceramic surface, LCD touch screen monitor and visualizer, nano blackboard, green board with interactive panels, document camera, digital display, all in one pc monitor, electric stand, mobile carts, and infrared / capacitive touch screen advertising display indoor and outdoor use
Built-in Android OS internet lan networking, wifi connection, the advertising contents are loading by cloud management system, such as video, images, and subtitles ....etc
Of course, the advertisement equipment with PC x86 solution option, built-in intel I3, I5, I7
The software are free for Android solutions, RK3568, the display can be splited by 2 / 3 /4 screens.
Android OS configuration with 2GB/4GB +16GB /32GB /64GB
Specification
LCD Panel | |
Size | 21.5/32/43/49/55/65/75/86 |
Resolution | 1920*1080 |
Display Rate | 16:9 |
Brightness (type) | 3000:1 |
Contrast | 300cd/m2 |
Reviewing Angle | 6ms (typ) |
Colorful | 16.7MM |
Response time | 178° |
Surface Protection | 4mm tempered glass, Anti-glared glass option |
Speaker | 10W, 8Ω |
Android Solutions (Standard) | |
Android board | RK3288 (Standard) RK3568/RK3399 |
Android Os | Android 7.1 0s (Standard) |
CPU | 4-core ARM Cortex A17 clocked at 1.6GHZ |
GPU | 4-core ARM Mali-T764 |
Flash Nandi | 8GB (Standard)/16GB /32 GB |
RAM DDR | 2GB(Standard)/4GB |
WIFI | Wi-Fi 2.4G.802.11 1x1 BGN+BT |
Internet | 1*10/100M Ethernet |
Interfaces | USB, TF. RJ45, HDMl In (Option) |
Playing | APP publishing or card read a play |
Feature | Support all format files of Videos & Audios, loop, Tming |
PC Solutions;(Optional) | |
Mainboard | X86 advertising mainboard |
Processor | Intel l3, 15, 17 CPU |
Memory | 4GB/ 8GB DDR3 /DDR4 |
Storage | 128GB/256GB SSD/HDD |
WIFI | WIFI 2.4G, 802.11 1x1 BGN+BT |
LAN | 1*10/100 /1000M Ethernet |
0S | Window 10 /11 0s (copy version) |
Mainboard Port | HDMI. USB. RJ45 |
Power | |
Power supply | AC100V tO AC240V |
Consumption (standby) | <1W |
Consumption (max) | 80W |
Physical | |
Frame Color | Sliver / Black Color |
Shell Materials | Aluminum frame,metal backside |
Certificate | |
CE | EMC, LVD, RED test |
ROHS | Safety test |
ISO | IS09001 Quality Management |
FCC | FCc Document |
Environments | |
Temperature | Working : 0°c to 40°-C;Storage :-20°C to 55°C |
Humidity | Working:10%-90% RH;Storage: 10%-95%RH |
Working Time | 24/7 hours working |
