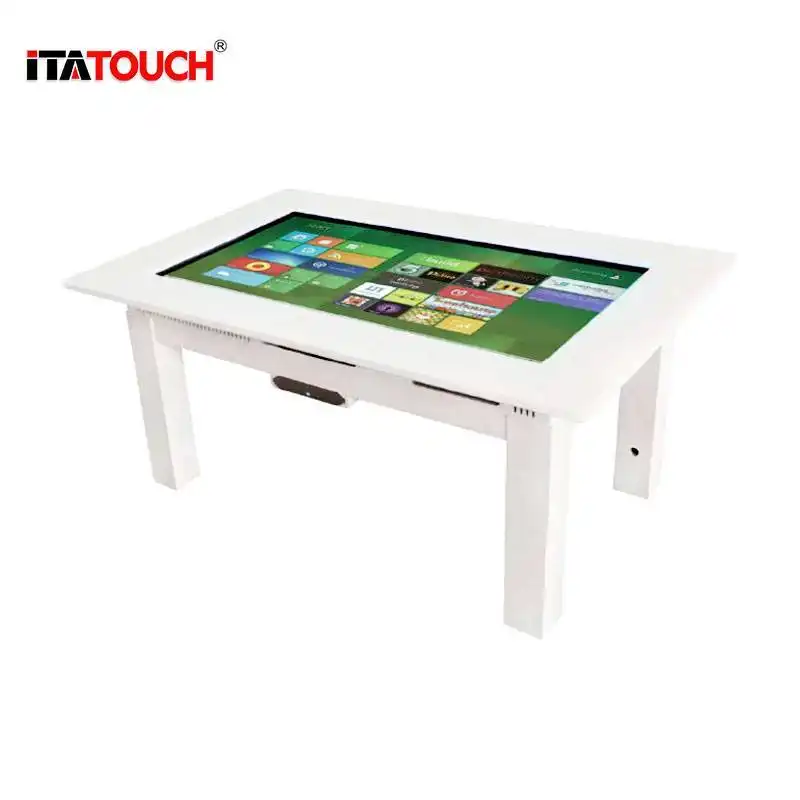

Interactive Table LED Infrared Multi Touch Screen Kids Learning Table
Interactive multi touch table is usually used for kids education, office conference, hotel meeting, restaurant, goverment working, etc.
Floor waterproof interactive multi touch table for restaurant ordering
Projected capacitive touch screen table for office meeting discussion
Interactive infrared multi touch screen table for hotel presentation
Round corner Infrared mutli touch interactive table for kids learning
Projected capacitive touch screen table 40points for shop working designer
Tea / Coffee interactive table multi touch screen for office, goverment, supermarket use
Interactive Touch Table integrated the high quality of touching, PC and FHD screen panel, a prefect design and its good finish, which offers you a interactive and pleased playing, learning and vivid presentation.
So you can easily enjoy the multi touch screen experience. Furthermore, you can use it as an information & displaying machine for its beautiful stylish appearance as well as powerful functions.
1. Customers only clarify what features & use / applications will be needed, then HITATOUCH will design it according to their requirments and offer for approval.
But it had better provide the similar design or pictures for us as reference if you had.
2, MOQ: 5pcs. (sample could be supported, but will charge some cost for design and special labour)
● Infrared Multi Touch Screen--- 10 ~32points, finger or any objects touch.
● Projected Capacitive Touch --- 10 points /40points finger touch, waterproof function l
✲PC Options : Intel I3/I5/I7, 4GB/8GB RAM, 500GB HDD / 64GB/128GB SSD , WIFI
✲Card Reader, Fingerc Printer, Code Scan , Light Box, etc.
SPECIFICATION:
Basic Parameters | |
Active Size | 42” |
Glass | Tempered glass |
Glass Thickness | 4mm |
Construction | Wood table, Aluminum frame, tempered glass, LED screen, built-in PC |
Speaker | 10W*2, 8Ω |
Standard interface | USB2.0*2, USB3.0*2,HDMI*2, RJ45, Binaural Headset Jack, |
Operating System | Windows 7 OS, Windows 8 OS |
Power Consumption | Max 170W |
Power Supply | Input AC: 100 ~ 240 V |
Outline Dimension | 1120mm(W)* 715mm(H)* 530mm(D) |
Warranty | 1 Year parts and technology support |
Multi-touch Frame | |
Technology | Infrared Multi-touch |
Detectable Touch Points | 4, 10, 16, 32, 64 or more touch Points (Max to 256 points) |
Data Connection Options | USB Series A |
Touch Method | Finger, gloved hand or any other nontransparent |
Touch Activation Force | No pressure needed |
Finger Touch accuracy | ＞5mm |
Report Resolution | 4096*4096 |
Touch Durability | Unlimited |
Touch Response Time | 8ms - 15ms |
Environment | Operating temperature: 0°C to 55°C; |
Storage temperature: -25°C to 85°C | |
Operating humidity:10% to 90% RH, non-condensing | |
Storage humidity: 10% to 90% RH, non-condensing | |
Micro PC | |
CPU | Intel Corei3-3240 CPU 3.4GHz (i3,i5,i7 being optional) |
Main board Chipset | Intel H61 |
Memory capacity | 2.00GB (4GB, 8GB being optional) |
Hard Disk | 320GB/500GB/1TB |
Display Chip | Intel HD Graphic 2500 |
Network Card | Internal wireless network card |
LED Panel | |
Model | LCD(LED Backlight) |
Active Size | 42inch |
Outline Dimension | |
Pixel Pitch | 0.4845mm x 0.4845mm |
Pixel Format | 1920 horizon by 1080 vert. Pixels, RGB stripe arrangement |
Color Depth | 8Bit(D), 16.7Million colors |
Luminance, White | 360cd/m2 |
Contrast Rate | 1400:1 |
Viewing Angle (CR>10) | Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)) |
Display Mode | Transmission mode, Normally black |
Surface Treatment | Hard coating (2H), Anti-glare treatment of the front polarizer (Haze 10%) |
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantiy - settle woodencase or pallet with stripe to ensure safety.
Q: Which accessories would be included for the package of this interactive coffee table?
R: the package accessories as below,
1* USB Cable
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
2* Touch Pens
Q: What is the MOQ & Lead-time?
R: Customized, MOQ: 1~5pcs, Leadtime: within 30days
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does ITATOUCH provide the OS for the interactive touch table with OPS PC ?
R: Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needs, since we are the hardware interactive touch screen manufacturer.
