Product Details

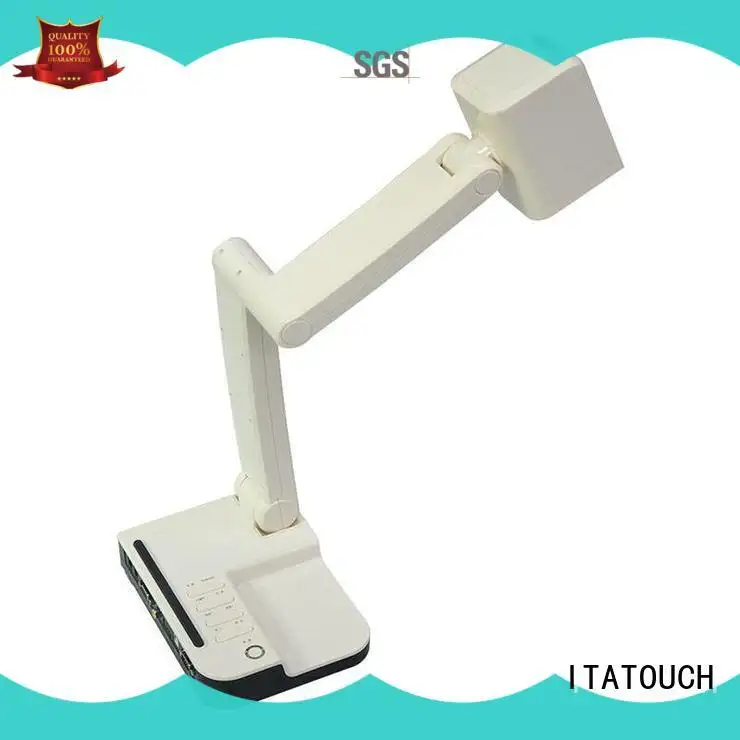

Light Weight, Portable Visualizer For Education
Hardware Parameters
1. Lens: 5 million pixels; resolution: ≥ 1200tv line.
2. The arm can adjust the lens to support vertical rotation of 270 degrees, and up and down the rotation of 150 degrees.
3. Zoom mode: 22 times optical zoom.4. Resolution (long press for 3 seconds): 1024 * 7681920 * 10801280 * 1024.
5. Interface: 1 channel for HDMI input and 1 channel for HDMI output;
6. 1 USB-a interface;
7. VGA interface: input 1 channel, output 2 channels.
8. One RS232 control interface.
9. 1 power input interface, standard power adapter: 12V · u 2A
10. Fill light: 12 LED lights are integrated at the top of the boom to make up light, which is ideal for classrooms without enough lighting;
11. Image stunt: freezing, contrast with the screen, brightness adjustment, zooming in and out, can be controlled by the buttons on the panel, and the buttons have a prompt tone.
The Dimension for The Portable Document Presenter Visualizer
The closed / Folded Visualizer
The dimension for the Shotting Height: 360 degree
Place the visualizer in a stable position, when expanded., please first pick up the upper arm of the visualizer, and unfold it. then the lower arm. and turn the camera.
To ensure the lens axis is perpendicular to the surface of the object being photographed
Product Installation
Simple Installation
- Wall-mounted the aluminum box. inserted the USB wireless internet adapter into the OPS PC of the interactive display or interactive whiteboard.
- Installed the ITA Whiteboard Software.
Inside the box, the visualizer will automatically be charging and connect with the PC by cable.Take out from the wall-mounted box, it can automatically connect with the interactive flat panel under running ITA TOUCH whiteboard software.
Product Application
The intelligent interactive Visualizer can be used in the conference platform and classroom.
The wireless intelligent interactive scanner to be used for classroom teaching
The teacher was using this HD visualizer to shoot the keys of the piano for teaching, which offer the teacher easy getting courseware, and a vivid example for students.
Wireless intelligent scanner offer students a vivid practical courses
The students were using the wireless document camera visualizer in person and get an easy case experience.
