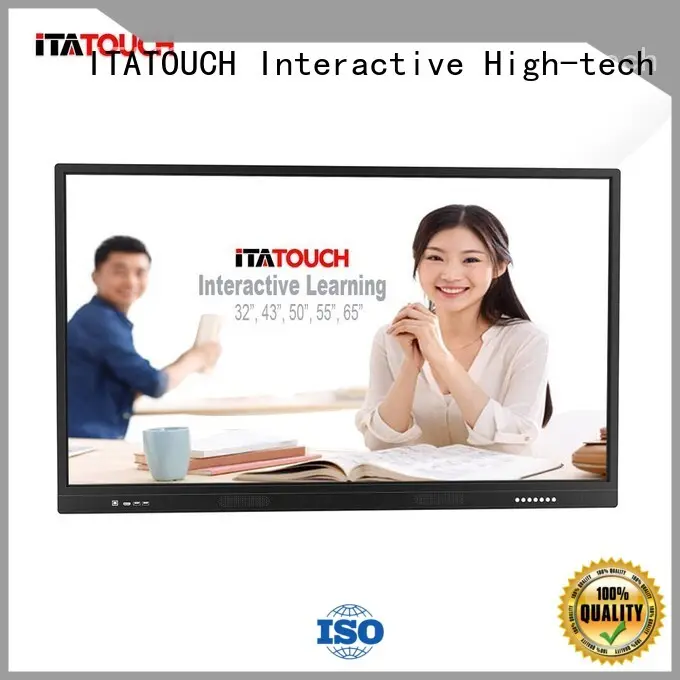

ITATOUCH capacitive interactive smart boards manufacturers for education
- ITATouch firmly believes that high-quality products and services serve as the foundation of customer's trust. A comprehensive service system and a professional customer service team are established based on that. We are dedicated to solving problems for customers and meeting their demands as much as possible.
1. ITATOUCH ir touch screen is designed to be environmentally friendly. No formaldehyde, nitrogen and other harmful substances are added in its production process.
2. The product is inspected to industry standards to ensure it is free of defects.
3. Its technical parameters are in line with international standards and guidelines. It will effectively support users' today and long-term needs.
4. Shenzhen ITA Touch Technology Co., LTD evolves each day to meet the dynamic needs of this industry.
Welcome to visit us! ITATOUCH offers high quality interactive display with moderate price!
Most of structures of ITATOUCH Interactive Panels are modular, and each configuration parts (such as OPS PC, driver board) are separated, which is very convenient for future maintenance, repair and upgrade. The user simply opens the part that needs to be changed without having to open the entire device again.
The video shows how to connect an OPS PC with an interactive touchmonitor, including the driver board section.
Welcome to offer some new ideas about the interactive displays, your suggestions will be highly appreciated!
Mainly used in commerce places, such as supermarket, hotel, restaurant, station, airport to show information, menu lists, instructions, checking etc.
IR multi touchscreen supports 10 users writing, editing /annotating at same time. finger touch, smart screen panel, full touch screen, various gestures to switch channels
FHD, 1920*1080P, improved and immersive visual experience, modual screens panel, LED backlignt, improved vision and reduced eye strain, A+ quality
the interactive panel with OPS PC slots, Intel I3 / I5, I7, 4GB /8GB RAM, 120G /240G SSD, WIFI
perfect finish with modual design, easy to maintain & repair, wire-drawing processing, painting color
Metal frame with round corner, painting color and wire-drawing processing
Modular deisgn, easy to pull out /attache OPS PC for maintenance and reapir.
Front bottom interfaces: USB2.0*2, HDMI*1,
convenient and fast response to different occasions.
Clean Finish, Modual Design, Round Corner
- The front is designed with an infrared touch screen frame for easy maintenance and repair.
- round corner with oxidation drawing processing frame.
- 4mm tempered glass. Anti-glare option
- Front interfaces: HDMI*1, USB*2. and 8 *buttons
Touching the screen to control all actions
Scroll up along the frame to get the menu channels, including TV System, Android, OPS PC, HDMI 1/2/3, Sources, Touch Display, then user could select the channels accordingly, including adjust the screen parameters.
Modular OPS PC
This Interactive Flat Panel with OPS slot is designed for attachable OPS PC.
User could select the OPS PC configuration
Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU
Chipset: H61 /H81 /H110.
Multiple interfaces: HDMI, USB, VGA, RJ45, RS232.
Multiple Channels
This digital display supports Android OS also, including andriod 5.0 / 6.0 OS.
Free whiteboard software option
Various Apps with powerful features, google apps, clock...
This interactive touchscreen is compatiable with all format player, video, audio .. etc.
One key power on/off
By the remote control to power on / off the touch screen and OPS PC for convenience use.
| Screen Panel | Panel size | 32inch | 43inch | 50inch | 55inch | 65" |
| Screen panel | TFT screen panel, LED backlight | |||||
| Display (mm)(H/V) | 1209.6 x 680.4 | 941.2 X 527.4 | 1095.1 X 615.5 | 1209.6 X 680.4 | 1428.48 x803.52 | |
| Display Rate | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | |
| Max resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | |
| Display color | 16.7M | 1.07G | 0.21(H) mm x 0.63(V) mm | 16.7M | 1.07B | |
| Pixel (mm)(H/V) | 0.21(H)mm×0.63(V)mm | 0.0798*0.2394 | 0.19025 x 0.57075 | 0.21 x 0.63 | 0.248x 0.744 | |
| Brightness (nits) | 300cd/㎡ | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 360cd | |
| Contrast | 4000:01:00 | 4000:01:00 | 5000:01:00 | 4000:01:00 | 4000:01:00 | |
| Visual angle | ±178° | ±176° | ±178° | ±176° | ±178° | |
| Response time | 8ms | 8ms | 9.5ms | 8ms | 6.5ms | |
| Speaker | MAX power: 15W*2 | |||||
| TV System | TV mainboard | PAL, NTSC/SECAM (Optional) | ||||
| Input | RFx1,Y Pb Pr *1; CVBS*2; CVBS Audio L/R *2; PC Audio*1; VGA*1; Media USB2.0*1; HDMI*1; HDMI built-in *1 | |||||
| Output | Earphone*1； AV*1; HDMI*1； HDMI built-in *1; PC USB*2 | |||||
| Press button on front | POW、IN、MENU、VOL+、VOL-、CH+、CH-、PC | |||||
| Video Features | 3D digital comb filter、3D image motion noise reduction、3D Motion Adaptive Digital comb filter | |||||
| OPS PC | CPU | Intel Core I73770 i52300/i32100/J1900/Celeron CPU 1155-pin; Integrated HD Graphics;built-in HD audio 6(Realtek ALC661) | ||||
| Memory | DDR3 1333Mhz 4G/8G option | |||||
| SSD | 120G SSD | |||||
| Wi-Fi | Optional, Wi-Fi with Antenna, 802.11 b/g/n | |||||
| PC Ports | HDMI×1,VGA×1,USB2.0×2,USB3.0×2,RJ45×1,PCAUDIO×1,MIC×1,RS232×1 | |||||
| Touch System | Multi Touch | Infrared technology, support 6point - 10point touch; finger or any objects touch | ||||
| Glass | Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | |||||
| Resolution | Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | |||||
| Features | No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recongize etc | |||||
| OS | Support Windows 7/ Windows 8 | |||||
| Whiteboard software | Option | Option, widely used to education,conference,military etc; multi-functions and multi-languages; compatible with Windows OS | ||||
| Power | Power supply | AC100~240V 50 /60 HZ; Consumption: Standby <1W | ||||
| Max consumption | ≦60W | ≦80W | ≦100W | ≦120W | <=250W | |
| Environment | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | |||||
| Appearance | Black color/ Aluminum alloy/ metal case | |||||
| Package Dimension | Dimesion | 795.4*490*116 | 1018.4*606.5*72.8 | 1174.9*697.3*73.27 | 1287.9*761.4*73.2 | |
| Mount (mm) | 27.5mm | 32mm | 31.93mm | 32mm | ||
| Package (mm) | 890*575*210 | 1150*730*225 | 1325*835*235 | 1495*925*235 | ||
| N/W & G/W (kg) | 20 & 25kg | 29 & 36kg | 30& 38kg | 54 & 65kg | ||
| Quality Certificate | ISO9001, CCC, CE, FCC | |||||
| Accessories | User Guide, Warranty card, Remote Control, USB Cable 3m; Power Cable 1.5m; Touch Pens /2pcs, | |||||
Company Features
1. Shenzhen ITA Touch Technology Co., LTD is a famous name in the domain of manufacturing ir touch screen . We have a striking national presence.
2. The factory strictly implements the ISO 9001 management system. This system has greatly boosted staff performance and overall productivity. It ensures that problems are quickly identified and resolved in a timely manner during production.
3. We will work hard to move toward a more sustainable manufacturing model. We will try to optimize the materials usage rate so as to reduce resource waste. We spare no efforts to avoid causing devastating influence on the environment, especially pollution. For instance, we only use the materials that will not contribute to environmental degradation in an effort to avoid contamination. Our Sense of Quality is based completely on customer satisfaction and delivering the product with the best quality on the right time in accordance with international accepted printing and quality standards. Get more info!
