ITATOUCH Custom large touch screen monitor company for education

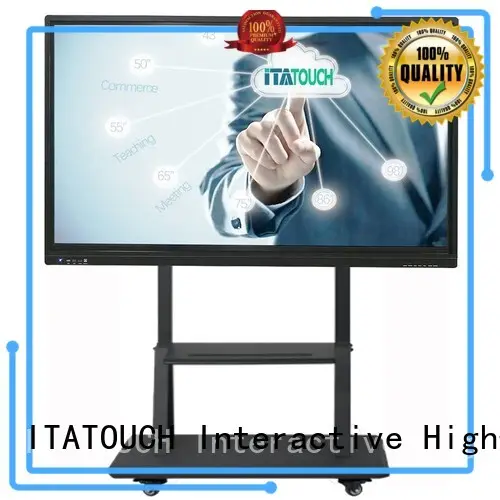

Movable Wheels Ir Led Touch Screen Panel Display Smart Board China Interactive Whiteboard
Product Details
* Key Features for Interactive Flat Panel
* Detailed Picture for Interactive Touch Screen
Front Frame
* Application for LED Interactive Whiteboard
Specification Of Interactive Touch Display
| Specification | |||
| Panel | |||
| Sizes | 54.64inch | 64.53inch | 74.52inch |
| Screen Panel Type | D-LED | D-LED | D-LED |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness (type) | 350 cd/㎡ | 400 cd/㎡ | 400 cd/㎡ |
| Contrast | 4000:1 | 4000:1 | 1200:1 |
| Display Area | 1209.6*680.4 mm | 1428.5*803.5 mm | 1649.66*927.94mm |
| Pixel (mm)(H/V) | 0.21 x 0.63 | 0.372x 0.372 | 0.429 x 0.429 |
| Display Rate | 16:9 | 16:9 | 16:9 |
| Reviewing Angle | 178° | 178° | 178° |
| Colorful | 10bit,10.7B | 10bit,10.7B | 10bit,10.7B |
| Response time | 8ms | 6ms | 6ms |
| Lifetime | Above 50,000h | Above 50,000h | Above 50,000h |
| Touch Glass | AG | AG | AG |
| Sound System | |||
| Speaker | 2*15W | 2*15W | 2*15W |
| Video type | PAL、NTSC、SECAM | PAL、NTSC、SECAM | PAL、NTSC、SECAM |
| Sound type | D/K、 B/G、 I、M | D/K、 B/G、 I、M | D/K、 B/G、 I、M |
| Android System | |||
| Android OS | Andriod 6.0 OS | Andriod 6.0 OS | Andriod 6.0 OS |
| Android CPU | CPU：Cortex A53*4 1.5GHz GPU：ARM Mali-T720 | ||
| Flash Nandi EMMC | 8G | 8G | 8G |
| RAM DDR3 | 2G | 2G | 2G |
| Input Resolution | 1920*1080/60HZ, 3840*2160/60HZ | ||
| Front Frame | 1* HDMI, 2*USB2.0, 1* TOUCH-USB | ||
| Input | 2*HDMI, 1*VGA, 1*YPBPR, 1*AV , 2*USB2.0, 1*TOUCH-USB, 1*RS232, 1*SD (MAX support 128GB) , 1*RJ45, 1*WIFI (2.4G ) , 1*OPS PC SLOT 80PIN | ||
| Output | 1*SPDIF,, 1*Earphone, 1*AV | ||
| Front Button | POWER, MENU, VOL- , VOL+, ECO, ENTER, HOME | ||
| Touch Technology | |||
| Touch Points | Infrared 10-20 touch points, support 2, 6, 10, 20-touching for windows | ||
| Touch Method | Finger or Pens, any objects | ||
| Calibration Technology | Infrared magnetical sensor | ||
| Accuration | <2mm | <2mm | <2mm |
| Resolution | 4096*4096/16384*16384/32768*32768 | ||
| Response time -1st touch | <15ms | <15ms | <15ms |
| Continous touching | <8ms | <8ms | <8ms |
| Light Sensor | >220dot/second | >220dot/second | >220dot/second |
| Touch interface | USB | USB | USB |
| Support OS | Support WINDOWS /LINUX /MAC /Android | ||
| Touch objects | ≥Φ3mm | ≥Φ3mm | ≥Φ3mm |
| Touch times | above 6000millions times at same point | ||
| Software under Andriod OS | |||
| Whiteboard App | Yes | Yes | Yes |
| Mirror Screens | Option | Option | Option |
| Google App | Compatiable | Compatiable | Compatiable |
| Power Supply | |||
| Power | AC(100-240)V～50/60HZ | ||
| Rated current | 1.5A | 2.5A | 3A |
| Environments | |||
| Temperature | Working Temperature: 0°C to 40°C ; Storage Temperature :-20°C to 55°C; | ||
| Humidity | 20%-80% RH at 40°C, non-condensing | ||
| Others | |||
| The shell | Black bezel/ Aluminum alloy frame with Oxidation drawing treatment/metal shell of the backside | ||
| Accessories | Magnetic Touch Pen x2 | Magnetic Touch Pen x2 | Magnetic Touch Pen x2 |
| HDMI cable (1.5M) x1 | HDMI cable (1.5M) x1 | HDMI cable (1.5M) x1 | |
| USB cable (1.5M) x 1 | USB touch cable (1.5M) x 1 | USB touch cable (1.5M) x 1 | |
| Power cable（1.8M) x 1 | Power cable（1.8M) x 1 | Power cable（1.8M) x 1 | |
| Remote control x 1 | Remote control x 1 | Remote control x 1 | |
| Package Dimension | 1385*195*870mm | 1630*210*1060mm | 1890*250*1190mm |
| Net Weight | 39Kg±1Kg | 45Kg±1Kg | 79Kg±1Kg |
| Gross Weight | 49.5Kg±1.5Kg | 62.47Kg±1.5Kg | 85Kg±1.5Kg |
Other sizes 86", 98" Interactive Panel option
OEM | ODM supporting!
Brief Functions Description for ITA TOUCH Whiteboard Software
ITA Touch Whiteboard Software has powerful features, and very easy use for user.it can hide all display items, just show
whiteboard floated icon, adjust the main MENU direction, and free change short-cut list to display on right side, or left side,
hide source ... etc.
- It is FREE Whiteboard Software for our clients
- Normal features all offered, such as zoom, rotated, annotation, edit, play video, images, all course of tools, background
- The key features are to
1. Directly drag the images, or content words from website, it is quite convenient for teacher/conference... etc.
2. It has two-screens, and which can transport the content to another screens.
3. Lab tools and all kinds of course pictures.
- Support multi touchpoints.
- Multi-languages: English, Spanish, Polish, Russian, Arabic, Germany, France ... etc.
- OEM supporting - provide the whiteboard software with client LOGO, or add some features option
Optional Product
These interactive devices could be equipped with Interactive Touch Display, customer can select them per the actual requirements. Welcome to the inquiry!
Please do not hesitate to contact with us if there is any query!
Packing for Interactive Touch Panel
Please do not hestate to talk with us if there is any query!
