+ 86 13582949978Support Multipe Users
Optical finger/ any objects touch, 2points (2 cameras), or 10points (4cameras), write smoothly, response fast
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

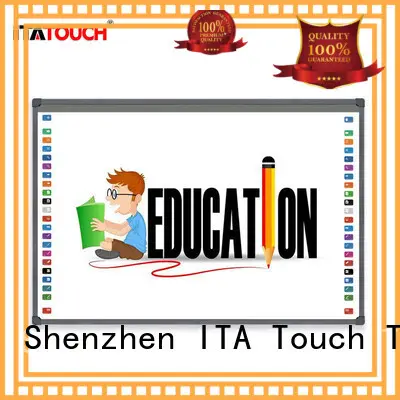

ITATOUCH optical interactive digital whiteboard whiteboard for education
Model#:
HT-85 W
Touch Screen:
Optical Technology
Android OS:
Compatible with Windows / Android, Linux
Main Interfaces:
USB
Min. Order Qty:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Supply Ability:
5000piece per month
Sea Port:
Shenzhen, China
Shipment Mode:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Size Range:
85", 89"
Product Comparison
ITATouch carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce Interactive Flat Panels which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.Compared with other products in the same category, ITATouch's Interactive Flat Panels has the following advantages.
-
v s
1. optical touch whiteboard design determines the final form of interactive digital whiteboard from Shenzhen ITA Touch Technology Co., LTD.
2. The product is corrosion resistant. Its materials will form a layer of oxidation film which features toughness and high density after an electrical process.
3. Shenzhen ITA Touch Technology Co., LTD has experienced management and technical team.
Products Details
The interactive white board is widely used for educcation / school / classroom, conference, office meetitng, military, govemrent, hotel ... etc. and gets highly appreciated from wide world market.
School classroom with interactie digital whiteboard
Interactive smart board for interactive classroom
Interactive boards applied to office meeting
ITATOUCH interactive whiteboard adopts 9th generation infrared multi touch technology, high-density infrared light tube integrated PCB, which offer the quality and multi touch points (10 ~32points) is under control and management to be easily maintained and used.
Key Features
With the designed appearance and conscientious service, ITATOUCH interactive whiteboard has been widely appreciated from wide world markets.
Compatible with WIN / Linux / Android
The whiteboard software with mutli-features, compatible with WIN /Linux / Android OS
Smart & Intelligence
Gesture recognize to write, eraser, zoom in/out, block .. record,/play video, edit/annotate
Multi Lanugages
free whiteboard software with multi lanuages also, inlcude English, Spanish, French, Russia, Arabic
22pcs Shortcuts
On both sides there are 22pcs shortcuts, which is very convenient and easy for user
Pefect Stylish
Alunium frame with painting classical grey, fashion corner protected. hotsale style
Optical Technology
ITATOUCH Interactive Optical Whiteboard with two kinds of solutions, 2 cameras & 4 cameras, which is separately 2touch points & 10points, Clients could select the interactive boards per the actual requirements. Three years warranty offered by ITATOUCH.
The package of ITATOUCH interactive boards include whiteboard software, which is a powerful interactive tool, ideally for education and business applications. The whiteboard can fulfill functions including handwriting, erase, add /edit pages, insert objects, record...etc., which will bring the teaching, learning and meeting with a vivid and interactive presentation.
- 18pieces Shortcut Keys on both sides
- 2points ~10points finger touch
- Aluminum frame with baked painting in black
- ABS Corner with painted color
- Free Whiteboard software
The Materials of the Board
The board materials will be constructed by three parts: Surface, Wick and Back, see below picture.,
Customer could choose the materials of this interactive whiteboard,
Surface Material:
Option A: Cold rolled steel surface, anti-damage, Nano surface.
Option B: Cold rolled steel surface, anti-damage, ceramic surface, hardness 7H. Dry-Ease, support marker pen.
Wick Material:
Back: Galvanized Steel Sheel
Option A
High density polyfoam
Option B
Honeycomb Aluminum
Dimensions of Interactive Optical Whiteboards
2 Cameras: - 2points touch
Size | Ratio | Projection (mm) | Active (mm) | Total Area (mm) | |||
L | W | L | W | L | W | ||
85” | 4:3 | 1592 | 1195 | 1697 | 1195 | 1754 | 1289 |
4 Cameras: 10Points touch
Size | Ratio | Projection (mm) | Active (mm) | Total Area (mm) | |||
L | W | L | W | L | W | ||
85” | 4:3 | 1592 | 1195 | 1697 | 1202 | 1754 | 1259 |
91.9” | 16:9 | 1184 | 1060 | 1989 | 1067 | 2046 | 1124 |
SPECIFICATION
Input Method | Finger or any other opaque object |
Transmittance | 100% without glass (or board panel) |
Touch Durability | Unlimited |
Touch Object Diameter | ≥10mm |
Touch Activation Force | No pressure required |
USB reported Resolution | 32768*32768 |
Interface Type | USB2.0 (Full Speed) |
Plug and Play | Supported |
HID | Supported |
Power Supply | Powered by USB |
Power Requirements | DC5V±5% @500mA |
Power Consumption | 5VAverage power consumption<2.5W,@5V |
Operating Temperature | 0℃～55℃ |
Storage Temperature | -25℃～75℃ |
Operating Humidity | 10% to 90% RH, non-condensing |
Storage Humidity | 10% to 90% RH, non-condensing |
Drift | No drift in operating temperature range |
ESD | Per EN 61000-4-2: Level 4, contact discharge 6KV, air discharge 8KV |
Mounting Flatness | ±2.5 mm |
Package
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
The Accessories Box:
1* USB Cable
3* Touch Pens
1* Wall Mounted
1* Pointer
1* Eraser
1* Whiteboard Software CD
Small box of the accessories package to be packed into the whiteboard carton
The Interactive Boards will be packed by double cartons, and fold the foam to ensure safety.
Package with stripe belt, and settle the wooden pallet if needs . (Container Loading)
FAQ
Q: Which accessories would be included for the package of this interactive boards?
R: the package accessories as below,
1* USB Cable
3* Touch Pens
1* Wall Mounted
1* Pointer
1* Eraser
1* Whiteboard Software CD
Q: What is the Lead-time?
R: Leadtime: within 15 days for 20' GP/40HQ Contatiner Qty
Q: How long time is for the warranty?
R: Three years .
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Company Features
1. For years, Shenzhen ITA Touch Technology Co., LTD has been specializing in the design, production, and trade of optical touch whiteboard . We have accumulated rich experience in our business.
2. Our technology takes the lead in the industry of interactive digital whiteboard .
3. ITATOUCH is designed to help customers realize their values and dreams. Contact us! Our final goal is selling products in every corner of the world. We are making much effort in realizing it by cultivating the customer service team, improving our R&D capability, and developing more valuable marketing channels.
