A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
In-store customer experiences play an increasing role in business development, that's why interactive kiosks and digital signage displays went popular in markets, stores, shopping centers and business offices.

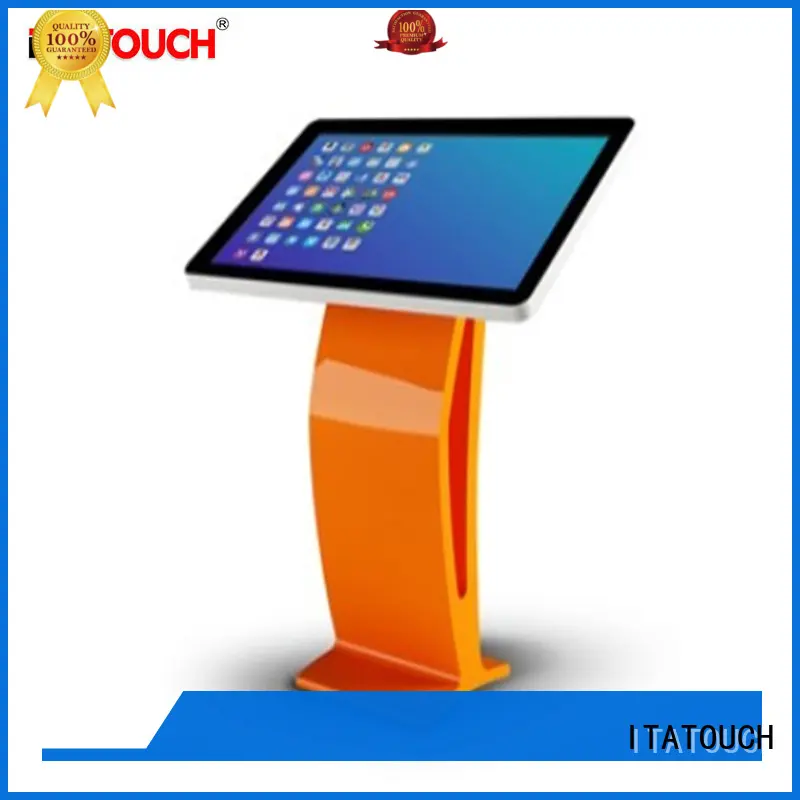

This piece of interactive device, with a 10 points touchscreen and adjustable stands, is custom-designed for this new trend. Customers can interact with the screen and do some self-service task right at their fingertips.
The stand is available for an adjustment from 45-85 degree. All for your convenience!
ITATOUCH offers interactive displays in different styles, for different applications. Table stand also supports customized design. Here we list three kinds of popular models for your reference.
Infrared / Capacitive Touch Screen Panels
Finger and any objects touch screen, 4mm tempered glass, high transmittance, fast response.
Support multiple people writing on the screen at the same time,
Anti-light interference, anti-shadow, adapt to a variety of environments
Easy to maintain and replace
Full touch to switch the channels.
Scroll up from the bottom of the screen to activate the access button of Menu Channel, which includes TV System, Android, OPS PC, HDMI 1/2/3, Sources, Display, then users could select the channels accordingly.
OPS PC attachable
This interactive flat panel equiped with OPS SLOTs on thebackside of the screen.
User could select OPS PC configuration as below:
Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU
Chipset: H61 /H81 /H110.
Stylish Appearance
Aluminum alloy drawing frame.
Multiple color options: Black, Golden, Sliver, White …
Super slim, narrow frame. OPS PC slots.
Multi Interfaces & Buttons
Front Interfaces: USB *2
Front buttons: Menu, Source, Vol-, Vol+
Backside interfaces: HDMI, VGA,
One key power on/off
Power on / off the touch screen and OPS PC by the remote control system for convenience use.
Screen panel | |||||
Panel size | 32inch | 43inch | 50inch | 55inch | 65inch |
Screen panel | TFT screen panel, LED backlight | ||||
Display (mm)(H/V) | 697.69 *392.3 | 941.2 x527.4 | 1095.1x615.5 | 1209.6x680.4 | 1538.8*865.6 |
Display Rate | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 |
Max resolution | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 |
Display color | 8 bit | 10 bit | 10 bit | 10 bit | 10 bit |
Brightness (nits) | 320cd/㎡ | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 470cd/㎡ |
Contrast | 1400:1 | 4000:1 | 4000:1 | 4000:1 | 1400:1 |
Visual angle | ±178° | ±178° | ±176° | ±176° | ±176° |
Response time | 8ms | 6.5ms | 6.5ms | 6.5ms | 6.5ms |
Speaker | MAX power: 15W*2 | ||||
Mainboard | |||||
TV System | PAL, NTSC/SECAM (Optional) | ||||
Input: RFx1,Y Pb Pr *1; CVBS*2; CVBS Audio L/R *2; PC Audio*1; VGA*1; Media USB2.0*1; HDMI*1; HDMI built-in *1 | |||||
Output: Earphone*1; AV*1; HDMI*1; HDMI built-in *1; PC USB*2 | |||||
Buttons on side frame:POW、IN、MENU、VOL+、VOL-、CH+、CH-、PC | |||||
Input on side frame: USB2.0 *2 | |||||
OPS COMPUTER | |||||
CPU | Intel Core i7/i5/i3 processor, intel H81 chipset | ||||
Memory | DDR3 1600Mhz 4G/8G option | ||||
SSD | 120G SSD (240G SSD or 500G HDD option) | ||||
Wi-Fi | Optional, Wi-Fi with Antenna, 802.11 b/g/n | ||||
PC Ports | HDMI*1, RS232*1, LAN*1, USB3.0*2, USB2.0*4, WIFI with antenna | ||||
Touch Technology | |||||
Multi Touch | Infrared technology, support 10point ~32point touch; finger or any objects touch | ||||
Glass | Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | ||||
Resolution | Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | ||||
Features | No drift, drive-free, waterproof, anti-dust; finger/object multi-touch, intelligence gesture recognizes etc | ||||
OS | Support Windows 7/ Windows 8 | ||||
Whiteboard Software | Option, widely used to education, conference, military etc; multi-functions and multi-languages; compatible with Windows OS | ||||
Power supply | |||||
Power supply | AC100~240V 50 /60 HZ; Consumption: Standby<1W | ||||
Consumption | ≦60W | ≦80W | ≦100W | ≦120W | ≦250W |
Environments | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | ||||
Physical Features | |||||
Case | Black color/ Aluminum alloy/ metal case | ||||
Dimension | 795.4*490*116 | 1018.4*606.5*72.8 | 1174.9*697.3*73.27 | 1287.9*761.4*73.2 | |
Package (mm) | 890*575*210 | 1150*730*225 | 1325*835*235 | 1495*925*235 | |
N/W & G/W (kg) | 23 & 28kg | 29 & 36kg | 30 & 38kg | 54 & 65kg | 79 & 94kg |
Accessories | ISO9001, CCC, CE, FCC | ||||
User Guide, Warranty card, Remote Control, USB Cable 3m; Power Cable 1.5m; Touch Pens /2pcs, |
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to prevent damage and water.
Workers are setting the safety strips to avoid shocking damage during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety.
Q: Which accessories would be included for the package of this interactive touch panel?
R: the package accessories as below,
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long is the warranty period?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry, or call us. the process please refer the OEM / ODM service page.
Q: Does ITATOUCH provide the OS for the interactive touch screen with OPS PC ?
R: Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needed, since we are the hardware interactive touch screen manufacturer.
Q: Is there extra whiteboard software for this interactive panel?
R: Yes, ITATOUCH could offer the whiteboard software if needed, or Users could download it from website.
