ITATOUCH Top digital advertising display supply for office
1. ITATOUCH digital display floor stands is manufactured under the guidance of experienced professionals using the best materials and modern technology.
2. This product offers varieties kinds of decorative embellishments, and provides users with additional styles and textures, such as embroidery.
3. It is lightweight compared to other types of alternatives, but also extremely strong. It provides much convenience for mobile phone users.

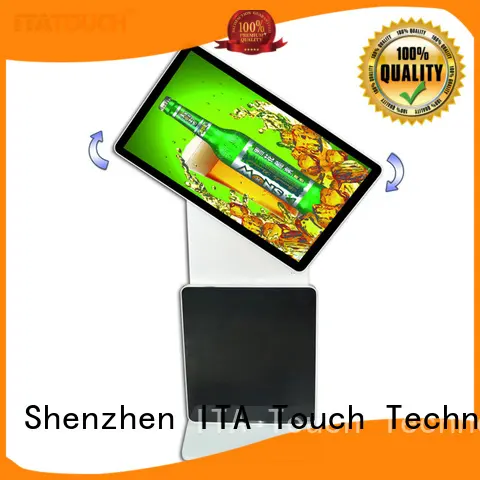

Rotatable Interactive Digital Signage Display
The rotated screen panel could stay at any angle you want ,like in horizontal (as the video), vertical, or slanted displaying.
The device as the video shows is 65” infrared 10points touch screen display, and built-in android OS (Android RK3288, 2GB RAM, 16GB flash Nandi), PC embedded option.
OEM & Customized welcome!
Rotated from 0 ~90 degrees.
Alunimumn frame with Round Corner, painting color
Interactive touch screen - infrared & capacitive multi touch 10 points
Android Lan (1GB/2GB RAM) or Built-in PC (Intel I3, I5, I7)
remote control managment software option
* 1080P Full high definition resolutions.
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Security Design, industrial mainboard, and tempered glass
* Support full media player format files.
* Metal-drawing with painting color
* Based stand with wheels option
* Printing Logo
USB2.0*2
SD Card Reader *1
LAN RJ45*1
WiFi*1
VGA*1 (option)
Power on/off
Customized Supporting:
The Appearance, Colorfuls , Finishing would be designed,
And built-in other hardwares option, such as: IC card reader, mini-printer .. Etc.
(MOQ: 10pcs)
Specification of Ratated Digital Signage
| Screen Panel | |||||
| Size | 32" (Customized) | 42" | 50" | 55" | 65" |
| Panel Brand | LED backlight, TFT screen panel | ||||
| Display Area (mm) | 930.2*523.2 | 1073.78x604 | 1209.6*680.4 | 1428.42*803.52 | |
| Resolution | 1366*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness (typ/min) | 350cd/m2 | 360cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
| Contrast (typ) | 4000:01:00 | 4000:01:00 | 4000:01:00 | 1400:01:00 | 4000:01:00 |
| Response Time | 8ms (typ) | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
| Pixel Pitch | 0.51075*0.17025 | 0.4845*0.4845 | 0.55926x 0.55926 | 0.630*0.630 | 0.802*0.802 |
| Visual Angle | R/L 160° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Life (typ) | 3000hrs (min) | 3000hrs (min) | 5000hrs (min) | 3000hrs (min) | 3000hrs (min) |
| Color Saturation (*% NTSC) | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 |
| Colorful | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 16.7M |
| Stereo speaker | 5W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android LAN Work Solutions | |||||
| mainboard | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2 | ||||
| Internet | RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||
| Input | USB2.0*2, TF*1, RJ45*1, DC12V*1 | ||||
| Output | HDMI*1, MINI AV*1 | ||||
| Features | Support all the usual audio formats | ||||
| Support music library, tag search, online streaming media | |||||
| Video | 3D 1080P; Video Decode AVI(h.264,DIVX,XVID,RM,RMVB,MKV,WMV,MOV,MP4,MPEG | ||||
| Flash | Support Adobe Flash V11.1 or Later | ||||
| Picture | Support JPEG,GIF,PNG,BMP files; Picture rotating, zooming out, support painting,(Gallery) | ||||
| others | Google Brower, Google APP, Market/APP Store download APK and games Google Map, Email | ||||
| Calculator, Calendar, files manager; Office documents (TXT,PDF, Office Doc/Xls/PPT editor) | |||||
| Support flash subtitle, Log management, time on/off, | |||||
| Normal LAN built-in PC Solutions | |||||
| Mainboard | Sigma 8635 mainboard ( LAN system) ; X86 mainboard ( built-in PC) | ||||
| Memory | SD card - 4GB option (can be expanded to 32GB) | ||||
| Network | IEEE802.3 10/100M Ethernet LAN | ||||
| Input | USB2.0*1; RJ45*1 | ||||
| Option | CF *1; SD *1 | ||||
| Audio | Support full format file(1080P) | ||||
| Video | support MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB | ||||
| picture | Support JPEG,GIF,PNG,BMP files | ||||
| others | Security design; multi-display modes; | ||||
| Support flash subtitle, Log management, time on/off, display instand messaging | |||||
| Built-in PC (option) | |||||
| PC | Intel J1900/ I3 /I5 CPU, 4G memory, 500G HDD Wi-Fi with Antenna (option) | ||||
| Interfaces | Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Touch Screen Option | |||||
| Touch Screen | Optional, Infrared multi touch points, Finger touch, gloved hand, or any opaque objects | ||||
| Other Features | |||||
| Case | Metal backside case, Aluminum Frame, 4mm Tempered Glass | ||||
| Work | Temperature: 0℃～40℃: Humidity:10%～90% | ||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| Consume | ≤30W | ≤60W | ≤100W | ≤130W | ≤130W |
| Quality appliance | CE, FCC, ROHS | ||||
| Accessories | CD, remote control, cables, user instruction | ||||
Remark: all specification are subject to change without previous notice
The rotated digital display is widely used to the airport, station, hotel, bank, office, ... etc
for advertisng display and infomation publicing commerce use.
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment
Container loading - the package with pallet and plastic film to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety
Q: Which accessories would be included for the package of this interactive touch display?
R: the package accessories as below,
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does it include remote control managment software ?
R: We offer the programme with the basic features, such as: flash player, divided screen, subtitle, log managment, time on/off ... etc.
Company Features
1. Shenzhen ITA Touch Technology Co., LTD is a competitive exporter in China for its digital advertising display .
2. Since establishment, we have won a good reputation and broad markets with continuous technological innovation and honest service. We have customers spreading all over the globe, including China, Australia, Africa, and America.
3. Survive with quality, seek development with technology, and create profit with scale. Ask online! Shenzhen ITA Touch Technology Co., LTD will continue to provide service with the tenet of digital display floor stands . Ask online!
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
