A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

ITATOUCH Top interactive smart boards for business for school 1
ITATOUCH Top interactive smart boards for business for school 2
ITATOUCH Top interactive smart boards for business for school 3
ITATOUCH Top interactive smart boards for business for school 4
ITATOUCH Top interactive smart boards for business for school 1
ITATOUCH Top interactive smart boards for business for school 2
ITATOUCH Top interactive smart boards for business for school 3
ITATOUCH Top interactive smart boards for business for school 4

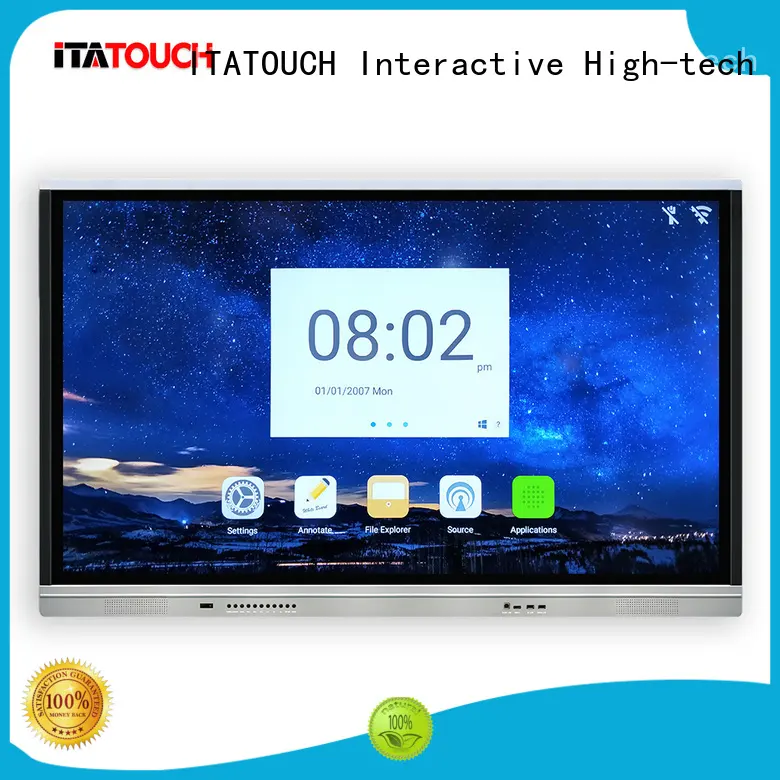

ITATOUCH Top interactive smart boards for business for school

Model#:
HT-65D NZ series
Size Range:
55
Touch Tech:
infrared multi touch technology
Resolution:
3840*2160
OS:
Android 5.01 OS
Interfaces:
HDMI, VGA, USB, RJ45, RS232
Computer :
OPS PC intel@HM86, H81, H110
Supply Ability:
5000pcs per month
Min. Order:
10pcs, sample supporting
Payment:
T/T Deopsit, Paypal, WestUnion
Shipping:
Air / Sea shipment
Port:
Shenzhen
Inquiry
Product Comparison
Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, ITATouch's Digital Signage Totem is highly competitive in the domestic and foreign markets.Compared with other products in the industry, Digital Signage Totem has more obvious advantages which are reflected in the following aspects.
  • ITATOUCH Top interactive smart boards for business for school 5
    ITATOUCH Top interactive smart boards for business for school 6
Enterprise Strength
  • While selling products, ITATouch also provides corresponding after-sales services for consumers to solve their worries.
Company Advantages
1. interactive smart boards outrival other similar products with its 4k interactive touch screen design.
2. The product exceeds industry standards in performance, durability and usability.
3. The product performance is fine, the quality is stable and reliable.
4. It enjoys a super long service life. If properly taken good care of, it offers stable and reliable performance for at least a decade.



Brief Introduction pp



With the latest infrared touchscreen technology, supporting 10-32 points touch, The interactive touchscreen flat offers you a smooth,flexible using experience that only a traditional mouse and keyboard can provide in the past ,  plus seamless interactive function will make you everything easier.

In addition, it supports the Android system and optional Windows OS OPS PC, which can offer you more APP choices and good using experiences. With  wide range of sizes, frames, and customized optional hardware equipment, it can suit for many solutions in education, conference, business presentation, etc fields.




ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen
4K ULTRA HD DISPLAY

D-LED screen panel, 3840*2160 display resolutions, improved and immersive visual experience, A+ quality

ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-1
DUAL OPERATION SYSTEM

Built-in Andriod 5.01 OS, 2GB DDR3, 16GB flash Nandi; Windows OS OPS PC attachable. More choices, more fun.

ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-2
ANTI-GLARE GLASS

4mm tempered glass with anti-reflective treatment,  high light transmission, improved vision, and reduced eye strain

ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-3
INFRARED 10 ~32 TOUCH-POINTS
The latest infrared technology with high density PCB, supporting multi users through its 10~32 points touch screen interface.

The latest infrared technology with high-density PCB, supporting multi-users through its 10-32 points touch screen interface.





ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-4

Rounder Corner and Frame with Oxidation Wire Drawing, a streamlined appearance with much aesthetic design;  Built-in Speaker*2 to create an immersive experience for users.

ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-5

Front Interfaces: HDMI *1, PC-USB*1, MEDIA-USB*1, TOUCH-USB*1, convenient and fast response to different occasions.

ITATOUCH-Interactive Smart Boards Interactive Boards Multi Touchscreen-6

Backside with 2 handles and 4 screws to ensure good stability, OPS PC Attachable  Intel@ HM86 /H81 /H110 Chipset Option, providing more systems, APPs and convenient services to users as need.







Screen Panel

Panel size55inch65"75"86"
Screen PanelTFT-LED   panelD-LED   LG panelD-LED   LG panelD-LED   LG panel
Display (mm)(H/V)1209.6   X 680.41428.48   x803.521649.6*927.91895.04x1065.96
Display Rate16:0916:0916:0916:09
Max resolution1920x10803840x21603840x21603840x2160
Display color16.7M   8bit1.07B   8bit1.07B   10bit1.07B   10bit
Pixel (mm)(H/V)0.21   x 0.630.372x   0.3720.429   x 0.4290.4935   x 0.4935
Brightness (nits)350cd/㎡500cd/m²400cd/m²350cd/m²
Contrast(typical)4000:14000:14000:14000:1
Visual angle ±176°±178°±178°±178°
Response time8ms6ms6ms8ms
SpeakerMAX   power: 15W*2
Android    System Mainboard  Android   5.01 OS Contex A53, Mail450MP4 Quad-core CPU, 1.4GHz, 2GB DDR3 RAM,  16GB Flash Nandi , IEEE802.11 a/b/g/n Dual   Band  5 GHz
InputHDMI*2,  VGA*1,  YPBPR*1,  TV*1, AV *1 (Mini Jack in 3.5mm)    USB 3.0*2,   TOUCH-USB*1,   RS232*1,   SD/TF card*1 (support 128GB MAX) ,   RJ45 LAN   *1,   WIFI *1,  OPS-SLOT*1
OutputEarphone*1, Mini-AV*1;    Coaxial *1, HDMI*1 (option) , VGA*1 (option)
Front frame

Interfaces:   HDMI*1,  USB-Media *1, USB-PC*1,  USB-TOUCH*1

Buttons: POWER, SOURCE, MENU, VOL+, VOL-, CH-, CH+, PC, ES, ENTER,   HOME

Video Features3D   digital comb filter、3D image motion noise reduction、3D Motion Adaptive   Digital comb filter
Touch SystemMulti   Touch Infrared   technology, support 10~20point touch; finger or any objects touch
GlassTempered   glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ;
ResolutionResponse   speed: 5ms;  Typical accuracy<1.5mm;Cursor Speed:180 d/s around;
Features No   drift, drive-free,waterproof,anti-dust;finger/object multi-touch,   intelligence gesture recongize etc
OSSupport   Windows 7/ Windows 8
OPS PC (option) CPUIntel®HM86   Chipset I3-4000M /I5-4200M /I7 -4600M,    Integrated HD Graphics;built-in HD audio 6(Realtek ALC661)
MemoryDDR3   1333Mhz 4G/8G  option
SSD128G   /256G SSD
Wi-FiWi-Fi   with Antenna, 802.11 b/g/n
PC Ports4*USB3.0,   2*USB2.0, 1*HDMI, 1*VGA, 1*RJ45 1000M internet, 1*Line out, 1*MIC
PowerPower   supplyAC100~240V   50 /60 HZ; Consumption: Standby <1W
Max consumption≦120W<=250W<=300W<=350W
Environment Working:   0°C to 40°C ;Storage:-20°C to 55°C;  Humidity:20%-80% RH at 40°C,   non-condensing
AppearanceBlack color/ Metal Shell
Package DimensionDimesion 1259*771*87.51514.8*102.6*934.711739*1063*124mm1989.6*114.3*1201.9
Package (mm)1455*195*935mm1680*1050*220mm1900*250*1195mm2134*1289*240mm
N/W & G/W (kg)47   & 61kg49   & 65kg76   & 88kg84   & 108kg
Quality CertificateISO9001,   CE, FCC, RoHs
Accessories Warranty card, Remote Control, USB Cable   1.5m; Power Cable 1.8m; VGA cable 1.5m, Touch Pens /2pcs,





Company Features
1. Shenzhen ITA Touch Technology Co., LTD is a large-scale backbone enterprise specializing in the production of interactive smart boards .
2. We have a customer-centered support team. They pursue excellent services and care about what clients feel and concern. It is their professionalism and support that we have won over such a number of clients.
3. Every day, we focus on sustainability practices. From production to customer partnerships, to supporting local charities and employee engagement, we implement sustainability strategies along the entire value chain. We have a clear business plan: to establish an R&D department in foreign markets. Therefore, at this point, we are going to invest more in cultivating talents or introducing R&D experts. Our company practices sustainability hand in hand with the government. All of our business activities will conform to the laws and regulations stipulated by the government.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
no data
Established in Oct, 2016, focusing on the interactive high-tech products, specializing in the development of LCD touch screen monitor, interactive whiteboard, interactive learning software, infrared touch screen frame, interactive tablet … etc.
