+ 86 13582949978Projected Capacitive Touch Screen
Capacitive 10points touch screen, finger touch writing, intelligent gesture recognizition.
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
ITATOUCH Wholesale 4k touch screen monitor for business for office
Model#:
HT-55D NE Series
Size Range:
32
Touch Tech:
Capacitive 10points touch screen
Resolution:
1920x1080P
OS:
Android & Windows
Interfaces:
USB, HDMI, VGA, RS232
Computer :
OPS PC attachable, Intel I3 /I5 /I7, 4GB/8GB
Supply Ability:
5000piece per month
Min. Order:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Shipping:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Port:
Shenzhen, China
Product Comparison
ITATouch provides diversified choices for customers. Digital Signage Totem is available in a wide range of types and styles, in good quality and in reasonable price.Compared with products in the industry, ITATouch's Digital Signage Totem has the outstanding advantages which are mainly reflected in the following aspects.
1. The manufacturing processes of ITATOUCH capacitive touch display involve several requirements. They mainly include the insulating performance for materials and safety testing for operation.
2. The product performance is fine, the quality is stable and reliable.
3. The product is got into a regular cadence of quality audits to ensure reliable quality.
4. The specifications and installations are designed to cater to the 4k touch screen monitor industry standard.
Projected capacitive touch technology, aluminum alloy drawing frame, widely used to commerce, education, such as hotel, restaurant station, airport, conference, classroom, etc.

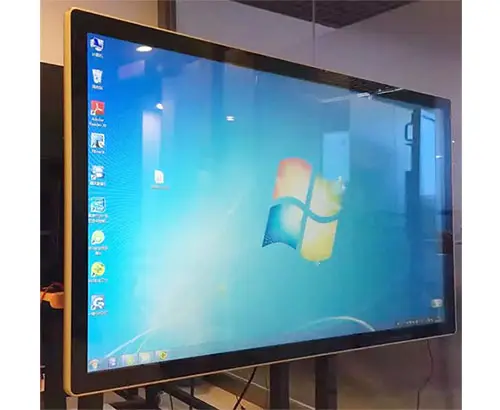

Products Details
Projected capacitive touch technology, aluminum alloy drawing frame, widely used to commerce, education, such as hotel, restaurant station, airport, conference, classroom … etc.,
This interactive display widely used for classroom, conference, hotel, office, supermarket, etc.
User can order the unit per actual needs, include color, PC configuration, apperance , etc.
2K / 4K Screen Panel
LCD LED backlight, LG /Samsung / AUO screen panel , 1920*1080p or 3840*2160
Perfect Design
Aluinium frame with covered finish and painting color, modular design, easy use
Android / Windows OS
Android 5.0/6.0 OS, 1GB/2GB RAM, WIFI / OPS PC Intel I3 /I5 /I7, 4GB/8GB RAM
Details Pictures

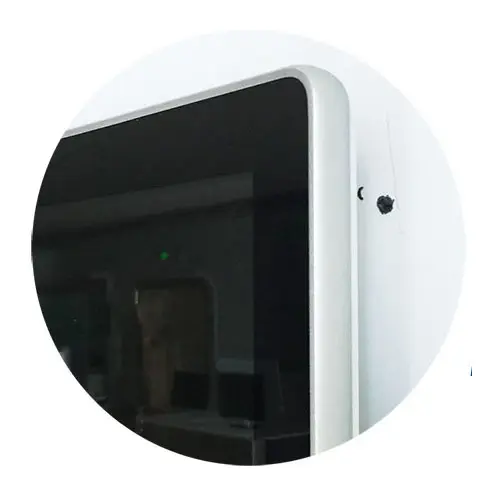

Aluminum frame with covered finish in golden color, treated by wire-drawing

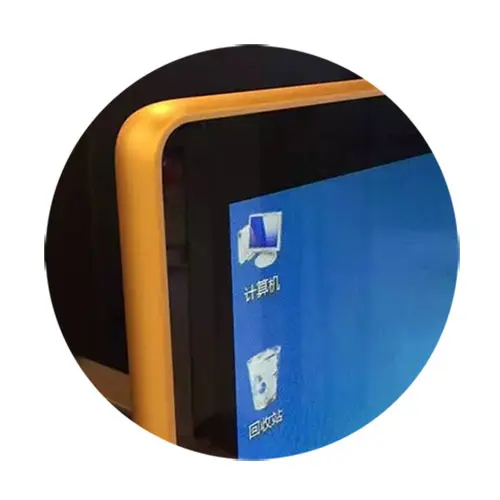

LCD LED backlight, 1080P black-gloden panel looks classical and perfect

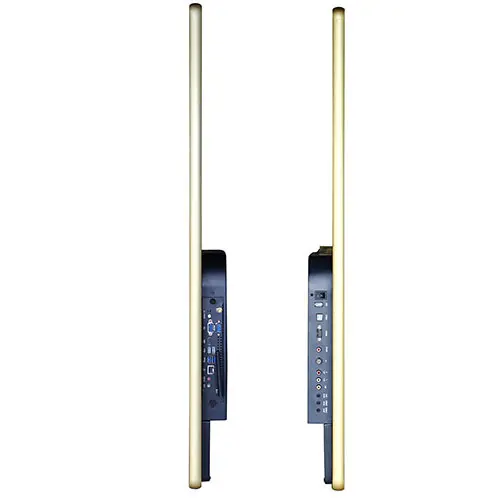

Super slim, ultra-thin, modular design for OPS PC and driver control board
Main Features Clarifcation for Capacitive Touch Screen Panel
- Multi Touch Points 10points
Projected capacitive multi touch technology, finger touch, touch sensitive.
Water-proof, anti-dust, and anti-scratch
- FHD/2K, UHD/4K screen panel
The screen panel will be LCD LED backlight, 2K /1080P or 4K / 2160P display, which offers the presentation with real and vivid images and words, giving a deep impressive teaching/conference.
- Intelligent gesture recognition,
Based on your gesture,you can control control the touch display, include Zoom in / out, Rotate, Erase, Multi Tasks Witching, Write … for easy teaching and presentation
- Android & Windows OS perfectly compatible, double guarantees.
Android mainboard built-in, android 5.0 OS , quad-core CPU, 1GB/2GB DDR3/DDR4 RAM, it also could smoothly sue the touch screen even if there is no computer connecting, access to the internet, edit, annotate, upload /save files … etc which offers non-worried application environments.
Android OS with multi-languages, include English, Spanish, Russian, Polish, Germany, Turkey, Arabic … etc
- Full touch to switch the channels.
Touch the bottom to pull up, there wil be menu channels, include TV System, Android, OPS PC, HDMI 1/2/3, Sources, Display, then user could select the channels accordingly, include adjustoing the screen parameters.
- One key power on/off
By the remote control to power on / off the touch screen and OPS PC for convenience use.
- OPS PC attachable, Intel I3 / I5 / I7
The device with OPS SLOTs which is for OPS PC attachable.
User could select the OPS PC configuration, include Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU chipset: H61 /H81 /H110.
- Super Slim, Ultra narrow frame, Round Corner
Module design with LED backlight screen panel
The stylish appearance with metal drawing, die-modular polishing
SPECIFICATION
| Screen Panel | Size | 32" | 43" | 50" | 55" | 65" |
| Sceen panel | ||||||
| View Area | 698.4x392.85mm | 914.184x529.416mm | 1073.78x604mm | 1209.6x680.4mm | 1428.48x803.52mm | |
| Resolutions | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
| Contrast | 3000:1 | 1200:01:00 | 4000:1 | 4000:1 | 4000:1 | |
| Brightness | 320 cd/㎡ | 300 cd/㎡ | 300 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Response time | 6.5ms | 8ms | 8ms | 8ms | 6.5ms | |
| Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | |
| Lifetime | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | |
| Speaker | 10W*2 | 10W*2 | 10W*2 | 8Ω5W | 10W*2 | |
| Glass | 4mm tempmered glass | |||||
| Touch | Technology | Capacitive 10point touch. Free driver, finger touch | ||||
| Android (Option) | Mainboard | Andriod 4.4 OS, RK3188, 4cores 1.8GHz CPU, Memory 2G, Flash Nand 8G, WIFI | ||||
| Computer (Option) | Mainboard | H61 / H81 Chipset | ||||
| CPU | InteCorei7/i5/i3/G2030/Celeron CPU 1150-pin | |||||
| RAM | DDR3 1333Mhz 4G/8 | |||||
| Storage | SATA500G；SSD60G/120G | |||||
| WiFi | yes, with antenna | |||||
| OS | Compatiable with WINDOWS 7/8, 10.. Etc | |||||
| Interfaces | I/O | AC*1, HDMI*1, VGA*1, USB2.0*2, USB3.0*2, RJ45*1, PC AUDIO *1, MIC*2 (some Difference per the differenct mainboard ) | ||||
| Others | Button | Power on/off, Light lamp | ||||
| Working Power | AC100 V ~ 240 V, 50-60 Hz | |||||
| Consumption | ≤80W | |||||
| Standby | ≤1W | |||||
| Envirnorment | Temperature | Working: -20℃~60℃, Storage:-40℃~85℃ | ||||
| Humidity | Working: 10%~90%RH, Storage: 10%~95%RH | |||||
| Max working time | 18 hours /day | |||||
| Apprance | Case | Aluminum alloy frame with paint sliver | ||||
| Installation | Wall mounted | |||||
| Package | Products | 762x460x67.6mm | 1020x608x75.1mm | 1158x689x76.8mm | 1296x767x74.5mm | 1517x892x79.3mm |
| Packages | ||||||
| Weight | N/W 18KG | N/W 20KG | N/W: 25KG | N/W: 26KG | N/W: 38KG | |
| Accessories | Power cable, wall mounts, user manal | |||||
Package
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantiy - settle wooden case or pallet with stripe to ensure safety.
FAQ
Q: Which accessories would be included for the package of this interactive flat panel?
R: the package accessories as below,
1* Remote Control
1* USB Cable for touch connecting
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* USB Cable for touch connecting
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* HDMI Cable (if device with HDMI interfaces)
2* Touch Pens
2* Touch Pens
1* Wall Mounted
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does ITATOUCH provide the OS for the interactive touch screen with OPS PC ?
R: Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needs, since we are the hardware interactive touch screen manufacturer.
Q: Is there extra whiteboard software for this interactive panel?
R: Yes, ITATOUCH could offer the whiteboard software if need, or User could download it from website.
Company Features
1. Shenzhen ITA Touch Technology Co., LTD has been focusing on 4k touch screen monitor for years with unique and exquisite craftsmanship.
2. Shenzhen ITA Touch Technology Co., LTD is equipped with strong research strength, having an R&D team dedicated to developing all types of new interactive flat panel display.
3. In order to ensure the optimization of production & manufacturing processes, Shenzhen ITA Touch Technology Co., LTD always adheres to the 'people-oriented' guiding ideology. Get info! Shenzhen ITA Touch Technology Co., LTD offers a whole set of service for interactive smart boards . Get info! To be the benchmark in capacitive touch screen field. Get info! capacitive touch display is a fundamental tenet of an efficient and well-organized development for Shenzhen ITA Touch Technology Co., LTD. Get info!
