Enterprise Strength
-
ITATouch not only produces high-quality products but also provide professional after-sales services.
Product Details
ITATouch's Interactive Flat Panels is of excellent quality, which is reflected in the details.ITATouch is certified by various qualifications. We have advanced production technology and great production capability. Interactive Flat Panels has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.
Company Advantages1. The production technique implemented in the production of ITATOUCH ITATOUCH is advanced and greatly guaranteed. It is a new production technique aimed at minimizing wastage.
2. Improved production technology is adopted to achieve its consistent quality.
3. For years, Shenzhen ITA Touch Technology Co., LTD has went on the interactive table price market in an invincible position.
4. As a professional interactive table price manufacturer, Shenzhen ITA Touch Technology Co., LTD has a strong and perfect quality assurance system and good corporate culture.
Product Description

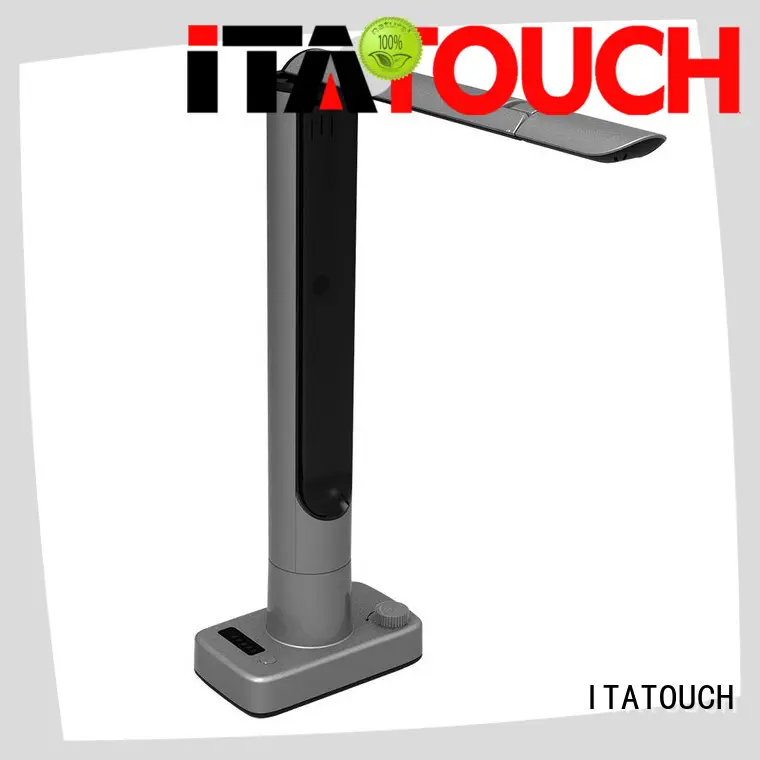

ITATOUCH Wireless Intelligent Document Scanner integrated the high definition video camera and smart control management, and adopt 5.8G WIFI with USB internet adapter and magnetic charging method offer user free, easy teaching/presentation experience.
This visualizer directly connects with the interactive flat panel display or the computer of interactive whiteboard by USB wireless adapter or cable.
1. Pixel: 8 million, maximum resolution: 3264 * 2448; the pixel can be adjusted according to different application scenarios.
2. Image rate: WiFi 5g full speed transmission, no delay, 1080p Full HD @ 25 FPS / s.
3. ★ display range: A3 format; the lens part can be rotated up and down to 270 degrees, left and right to 180 degrees, and displayed in multiple angles; the lens can be lowered to a relatively close distance of the desktop display object for micro distance display and shooting.
4. ★ transmission mode: USB wired and WiFi 5g wireless dual-mode; dual-mode interactive fast switching, according to the teacher's teaching scene, when the wall hanging is switched to the mobile desktop teaching, the application software does not need to be closed, realize intelligent recognition in the same interface, and automatically switch out the image.
5. Interactive button: the base is integrated with one button photo taking function, with knob switch for image enlargement and reduction.
6. Charging mode: the magnetic suction charging base is adopted, and the booth can be put into the wall hanging box to realize the magnetic suction charging.
7. Focusing mode: AF + MF on-demand focusing technology.
8. Working temperature: - 15 ℃ ~ 45 ℃.
9. Fill light mode: touch Level 3 light adjustment.
10. ★ electric quantity indication: the electric quantity percentage and charging flashing indication of one group of LED lamps are clear and visible.
11. Battery capacity: polymer cell 5600mAh; battery life: 6-8 hours.12. Wireless network card: default standard WiFi 5g USB wireless network card
The Details of Portable Wireless Document Visualizer
Appearance & Dimension
Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed
the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock
Box close: 450*150*100mm
Box Open: 450*460*225mm
Specification:
Model# | K6 |
Construction | Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed. |
Open method for box | the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock |
LENS | CMOS, 8 megapixel |
Resolution | 1700 TV line in the center, 1400-1600 TV line around |
Aperture and lens direction | Fixed aperture, vertical down |
Operating temperature and humidity | -15℃~45℃;20%~90% RH |
Shooting range | Take full A3 paper at the vertical distance from the sensor surface to the document (lens can be raised) |
Shooting type | Courseware, documents, documents, notes, pictures, magazines and books, ID cards, three-dimensional objects, etc |
zoom mode | AF autofocus + MF touch focus on demand |
Interface type | USB 2.0 free driver |
transmission mode | USB wire & IFI5 wireless |
Switch mode | Dual modes free switch, no need close whiteboard software, intelligent auto-recognize image |
Interactive button | The base with the button integrated the power on/off, shoot the image, and zoom in/out by rotating. |
Charger mode | the base with magnetic, put inside to charge immediately |
Battery | 1 set of LED light, power percentage and charge flashing indication (10% ~ 100%) |
Battery Capacity | Polymer cell 5600mAh; theoretical battery life 6-8 hours (depending on the environment)。 |
Power Adapter | Standard 5V ﹤ u 2.5A power adapter, it takes 4-5 hours to fully fill from 0-100% |
working frequency | 50Hz,support 60Hz |
Light supplement mode | touch switch(three sections of the light adjustment) |
Video format | MJPG/YUY2 |
The output frame rate of USB mode | MJPG:3264×2448(15~20 frame ), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame) |
YUY2(support android OS):3264×2448(2frame), 2592×1944(3frame), 640×480(30frame) |
The output frame rate of WIFI 5G wireless | MJPG:3264×2448(15~20frame), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame) |
Exposure / white balance | Power on auto exposure, white balance |
Time of exposure | 1~2S |
Colorful | 24bits |
The rotation angle of the cross arm | Rotate up and down to 270 degrees, left and right to 180 degrees |
USB Cable | USB cable 5m (optional) |
USB wireless network card | Standard configuration: WiFi 5g wireless network card |
Installation Applicaton:
- Wall-mounted the aluminum box. inserted the USB wireless internet adapter into the OPS PC of the interactive display or interactive whiteboard.
- Installed the ITA Whiteboard Software.
Inside the box, the visualizer will automatically be charging and connecting with PC by cable.
Take out from the wall mounted box, it can automatically connect with the interactive flat panel under running ITA TOUCH whiteboard software.
Company Features1. Shenzhen ITA Touch Technology Co., LTD transcends among peers in the developing and manufacturing of interactive table price . We are notable for excellence and experience in this industry.
2. Our interactive digital screen are all produced by the top technology and equipment in this field which has a strong foundation for the upgrading of high-end products.
3. Shenzhen ITA Touch Technology Co., LTD attaches great importance to the quality of best interactive whiteboard and aims to be the best. Get price! ITATOUCH Interactive High-tech insists on taking the market as our business direction. Get price!
