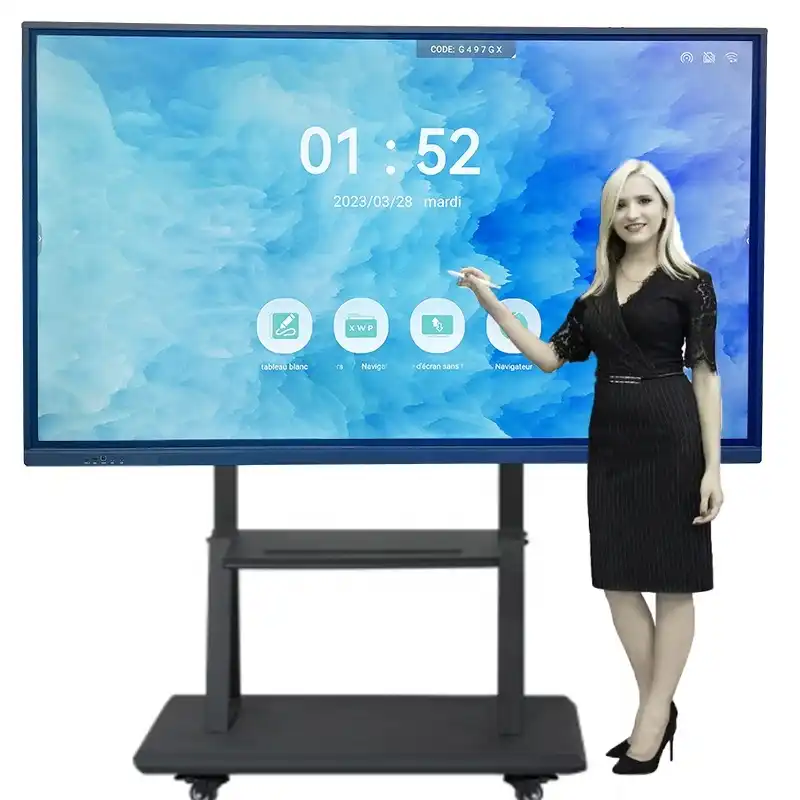

65 75 86 inches Free Whiteboard Software 4K Interactive Smart Boards with Camera Touch Display Panels for Conference
1. Super Narrow Frame
2. Magnetic Pen Holder on front.
3. Built-in 8 Megapixels Camera on top.
4. Array Microphone, which can pickup within 6meters
5. Mirror Screens - 4-picture transmission screen, compatible with Android & IOS, and WINDOWS OS (with the mirror dongle) ,
reverse control.
6. 4K Display LG panel, IR 20-touch points, Anti-glared Glass
7. One key power on/off, side floating icon. Android 8.0 OS
8. Intelligent gesture recognize, plug play
9. High speed USB3.0 port, HDMI, Type-C, RS232 .. interfaces.
10. Annotation, Edit Whiteboard APP, VIP Conference meeting
11. Free Whiteboard Software for Windows OS, which can directly Drag the Images /Text from Website.
12. Screen Cut, Timer, Record, Magnifier... Education / Conference Tools.
Specification:
Size | 65” | 75” | 85” |
Screen Panel | D-LED Panel | D-LED Panel | D-LED Panel |
View Area | 1428.48×803.52 | 1649.66 x 927.94 | 1860.48 ×1046.52 |
Resolution | 3840 x 2160 | 3840 x 2160 (pixels) | 3840 x 2160 |
Brightness | 350cd/m² nits (typ.) | 320cd/m² (typ.) | 400 cd/m2 nits (typ.) |
Contrast | 1200:1 (typ.) | 1200:1 (typ.) | 1200:1 (typ.) |
Response | 6ms (typ.) | 8ms (typ.) | 8ms (typ.) |
Pixel | 0.372x0.372mm | 0.429 x 0.429 mm | 0.4935 x 0.4935mm |
Visual Angle | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) |
Color | 1.07B (10bit) | 1.07B (10bit) | 1.07B (10bit) |
Saturation | 0.72 | 0.72 | 0.72 |
Lifetime | 30,000 hrs (min.) | 30,000 hrs (typ.) | 50,000 hrs (min.) |
Loud Speaker | 10W*2 | 10W*2 | 10W*2 |
Android Solutions | |||
Android | Android 8.0/9.0 OS | Android 8.0/9.0 OS | Android 8.0/9.0 OS |
CPU | Cortex ARM A73+A53, Quad Core 1.5GHz, GPU: MaliG51 | ||
RAM | 3GB | 3GB | 3GB |
Storage | 32GB | 32GB | 32GB |
Input | 2*HDMI, 1*VGA, 1*PC AUDIO, 1*MIC, 1*TOUCH USB, 2*USB2.0, 1*RS232, 1*RJ45, 1*WIFI (2.4G ) , 1*OPS PC SLOT 80PIN; | ||
Output | Earphone OUT x1, AV/COAX OUTx1 | ||
Front | USB X2 | ||
Buttons | Indicator light & IR receiver, Power | ||
Apps for Android | |||
Whiteboard App | annotation, edit/writing, screen cut, record, lock, calculator, countdown, clear ... etc. functions | ||
Mirror Screen | Option | Option | Option |
Google App | Compatible | Compatible | Compatible |
Video Camera | |||
Lens of Camera | Built-in 8 Megapixels on the top of the frame | ||
Resolution | 3264x2448 4K UHD | ||
Foucs | Auto-foucs, plug play | ||
Operation System | support WIN 10, Android OS, IOS, | ||
Touch Technology | |||
Sensor Type | Infrared 20-touching point | ||
Surface | 4mm Toughened Glass, Anti-glared | ||
Resolution | 32768*32768 | ||
Touch Accuracy | middle, 90% area +/-1mm | ||
Response Time | <=10ms | ||
Minimum Touch Object | Single touch ≥1.6mm, Multiple touch ≥3mm | ||
Connect Type | USB2.0 Full Speed pen | ||
Voltage | DC+5V±5% | ||
Power Consume | ≤2W | ||
Compatible OS | Multi-touch points for Windows 10/8/7,Android, Single touch point for Windows XP, Linux, Mac OS | ||
Power Consumption | |||
Power supply | AC 100 V ~ 240 V, 50/60 Hz | ||
Max Consumption | <220W | <400W | <440W |
Stand-by | ≤0.5W | ≤0.5W | ≤0.5W |
Application Environments | |||
Working | Temperature: 0℃~40℃ | ||
Humidity: 20% ~ 80% RH Non-Condensing.) | |||
Storage | Temperature: - 10℃~60℃ | ||
Humidity: 10% ~ 80% RH Non-Condensing | |||
The longest working time | 18 Hours×7 days | ||
Products Structure | |||
Shell Case | Aluminum Frame, Metal back shell | ||
Color | Black | Black | Black |
VESA Mount | 600*400(4-M8) | 400*400(4-M8) | 400*400(4-M8) |
Product Dimension (mm) | 1512x89.15x927 | 1741..7x103.4x1060.2 | 1995.2x112x1206.3 |
Package Dimension | 1660x245x1045 | 1880x280x1160 | 2140x280x1340 |
N/G Weight | 43.5Kg / 55Kg | 59Kg/ 78Kg | 81 / 102Kg |
Accessory | 1*Remote Control | 1*Remote Control | 1*Remote Control |
2*Magnetic Touch Pen | 2*Magnetic Touch Pen | 2*Magnetic Touch Pen | |
1* Power Cable | 1* Power Cable | 1* Power Cable | |
1* USB cable | 1* USB cable | 1* USB cable | |
1*Wall Mounted | 1*Wall Mounted | 1*Wall Mounted | |
Options | OPS PC / Movable Stand / Electric Stand – to be advised | ||
Qualtiy Compliance | CE, FCC, ROHS |
The above parameters are for reference only, please refer to the actual product
