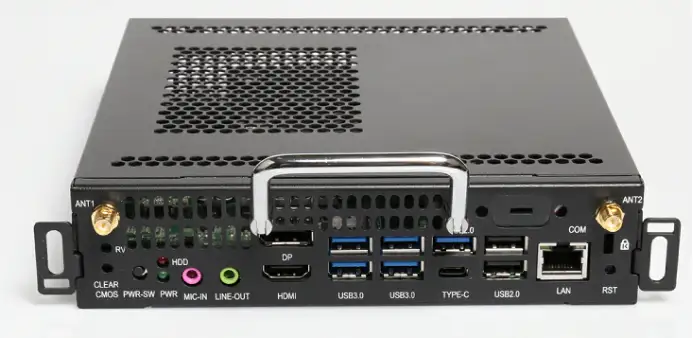

OPS 8th Generation with Video Card Series i3 i5 i7 Standard Mini pc
Hardware Parameter:
|
CPU |
Processor 8th generation Intel Coffee lake i3 i5 i7 series processor. |
|
Chipset |
H310 |
|
BIOS |
AMI 64MBit SPI Wake On LAN,Power on boot,Watchdog |
|
Capacity |
2XSO-DIMM/DDR4-2133/2400MHz, Maximum support 32G |
|
Lnterface |
1XM.2Slot,1XMsata,1X2.5inchSATA HDD/SSD |
|
Graphics card |
NV1030, NV1050M,NV1050Ti,NV1060,MXM standard type A/BGraphics card, Sata2.5-inch hard disk is not supported for MXM graphics card of platform above 1060 |
|
JAE Display |
HDMI Max 4096x2160@60Hz, DP Max 4096x2160@60Hz |
|
IO Display |
1xHDMI Max 4096x2160@30Hz ,Graphics card output. 1xDP Max 4096x2160@ HZ,Graphics card output. 1xVGA 3840x2160@30Hz,CPU output. |
|
Chip |
Realtek®8111H, 1xRJ45 10/100/1000M. |
|
WIFI |
1xM.2 for WIFI, RTL8723BE Modular |
|
USB |
6XUSB3.0, |
|
Audio frequency |
1xLine out,1xMic in |
|
Push-botton |
1xPower button 1xClear Cmos ,1xRV (One key reduction) |
|
Power supply |
DC-IN 12V-19V |
|
Dimensions |
180mm(L)x195mm (W)x42mm (H) |
|
Temperature |
Working temperature 0-50°C, Storage temperature -20-70°C |
|
Humidity |
5%-90% Non-condensing |
Features:
1. Intel® eighth generation Intel coffee Lake processor.
2. SO-DIMM/DDR4-2133/2400MHz, Maximum support 32G
3. Msata/HDD/SSD/,Support three hard disks and multiple storage options.
4. 1x80Pin Standard OPS interface.(Scalable standard card)
5. Ops-c interface can be interchanged with OPS standard,Compatible design of hardware.
6. IO interface, 6xUSB,1xHDMI,1xDP,1xVGA.
7. One restore function.
8. Support DC 12v-19v power supply.
Application
