Top Quality LCD Capacitive Restaurant Digital Smart Screen Bar DIY Multi Touch Table with PC
ITATOUCH Interactive Touch Table integrated the high quality of touch sensor (
10~40points, technology projected
CAPACTIVE touch screen /
INFRARED multi touchscreens ), LED backlight screen panel, and computer, which the prefect design and its clean finish have got highly appreciated from wide world market.
People just touch by finger /any objects to feel a free and smooth feeling which get an interactive and pleased playing, learning and vivid presentation.
It is widely used to the
office, classroom, restaurant, hotel, bank, hospital … etc. for conference meeting, teaching/learning, order booking, inquiry … etc.

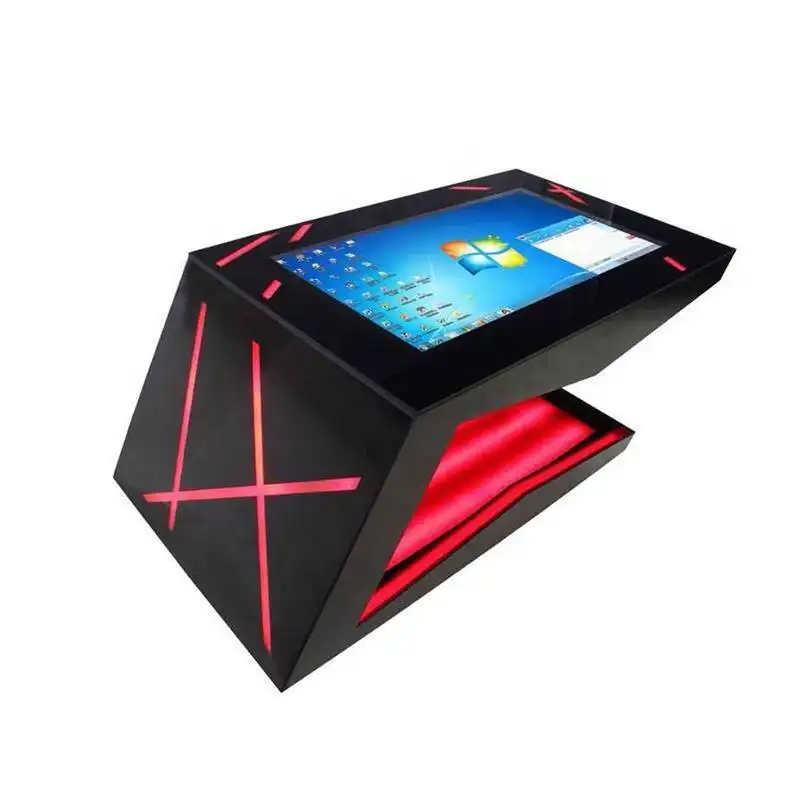

This is 50inch LCD LED projected capacitive touch screen coffee table
It is Anti static and metal interference, waterproof . Built-in Computer I5, 8GB, 128GB WIFI .
User can customize it per themselves requirements.
Welcome to inquiry: info@itatouch.com
www.itatouch.com
Detailed Picture for This Interactive Touch Table
(Customized size: 32", 43", 50", 55", 65", 75")
Top Quality LCD Capacitive Restaurant Digital Smart Screen Bar DIY Multi Touch Table with PC
Customized Clarification:
When the shape and configurations of the touch screen table is different, maybe the cost will be much various, please double check with ITATOUCH SALES for the details requirements.
Maybe you should clarify as the following, and we will send the drawing sketch of your touch table for APPROVAL before proceeding the touch table.
1. Out-looking & Color, include based stand
2. Configurations different: card reader, android LAN (default equipment), PC built-in
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in other components .... (MOQ: 5pcs)
ITA TOUCH Technician was testing the features of Waterproof & Anti-Metal
Brief Features of PCAP Touch Coffee Table
* PCAP Technology
* PCAP Multi Touch Film (10~40point)., finger touch
* The surface of the touch table meet IP65 standard, waterproof, and anti-metal interference.
* Metal shell with perfect finish, which the surface is painting and wire drawing.
* Customized appearance and color, LOGO print.* The area of the surface and the height of the touch screen table can be customized.
* Android OS option for the touch coffee table, such as 2GB RAM, 16GB flash
* PC Windows OS option - Intel I3 / i5 / I7, 4G/8GB RAM, 120G/240G SSD or 500G HDD, WIFI
The Technical Parameter for LCD Multi Touch Screen Table produced by ITATOUCH
Appearance | | |
Surface | Full tempered glass | |
Touch Panel | Projected capacitive multi touchscreen film with tempered glass | |
Table shell | Metal shell with painting color and drawing oxidation treatment | |
Table Dimension | | 2000*1200*198mm |
Table Height | 729.5mm include wheel, Round corner (to be customized) | |
Movable | Support, 4*wheels | |
Assemble method | The panel to be built-in the customized shell | |
Package | 1pc/2cartons | |
Screen panel | | |
Panel size | 55inch | 65inch |
Screen panel | D-LED AU screen panel | D-LED LG screen panel |
Display (mm)(H/V) | 1095.1 X 615.5mm | 1428.48x803.52mm |
Display Rate | 0.21(H) mm x 0.63(V) mm | 16:09 |
Max resolution | 1920x1080 | 1920x1080 |
Display color | 1.67MB | 1.07G |
Brightness (nits) | 320cd/㎡ | 350cd/㎡ |
Contrast | 5000:01:00 | 4000:01:00 |
Visual angle | ±178° | ±178° |
Response time | 9.5ms | 8ms |
Computer Configuration | | |
CPU | Intel I3/ I5 / I7 CPU, Integrated HD Graphics; built-in HD audio | |
Memory | DDR3 1333Mhz 4G/8GB | |
Storage | 120G/240G SSD / 500G HDD | |
Interfaces | HDMI, VGA, USB2.0, RJ45 | |
Touch Technology | | |
Technology | Projected Capacitive touchscreen , 10/20-touching | |
Touch type | Finger touch, anti-jamming of metal, water. | |
OS | Support Windows 7/ Windows 8/ Windows 10； MAC … etc. | |
Others | | |
Power supply | AC100~240V 50 /60 HZ; Consumption: Standby <1W | |
Max consumption | ≦200W | ≦300W |
Application Environment | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | |
Quality Certificate | CE, FCC, ROHs, ISO9001 | |
Accessories | Remote Control, USB Cable 3m; Power Cable 1.5m | |
Remark: just for reference, the actual parameters will be some difference per different components
Configuration of Android boards:
1. Rk3288 Quad Core Cortex-A17, frequency up to 1.8GB, memory 2GB, flash Storage: 8GB
2. Rk3399 Double Cortex-A72 + four cortex-A53, frequency up to 2.0 GHz, memory 2GB, flash storage: 8GB
The PCAP touch table will be packed by two cartons usuallyBoth the body and the stand were be packed separately to save volume weight, the more details please check with salesman, thank you!
Clients Visiting
Every year many clients from wide world markets visit us. ITA TOUCH factory warmly welcomes you in Shenzhen, China.
Call: +86 13582949978
Mail: info@itatouch.com
The customers visited our production lines- Interactive touch display, digital signage 3D hologram fan .. etc, and took some pictures.
The Wide World Buyers Witness With You!
With competitive price, our interactive touch screen has been more popular which also makes ITATOUCH to be more competitive. With interactive intelligence features, Ita Touch can offer you a convenient and smart experience.
Shenzhen ITA Touch Technology Co., LTD has the advantaged production predominance and market competition. With interactive intelligence features, Ita Touch can offer you a convenient and smart experience.
We, Shenzhen ITA Touch Technology Co., LTD, established in the year 2009, are among the prominent distributor, suppliers, traders, importer, exporter and retailers of a wide range of supreme quality Interactive Table. Our effective product range is inclusive of Interactive Table. Procured from trusted, reliable and well-known vendors of the industry, these products are known for their lightweight, sturdy construction, elegant design and durability. Due to our rich vendors base coupled with spacious and well-equipped warehousing unit, we have been able to offer the offered products in bulk quantities. The offered products are used in various industrial automation and controlling purposes. Our company has attained a remarkable position in this domain in such short period of time due to the customer-centric approaches, ethical business practices and ability to meet the bulk orders within the assured time frame.The premium quality of our product range is never compromised and is attained through various quality assurance checks conducted by our team of quality controllers.
