Display Size | 32" | 43" | 50" | 55" | 65" |

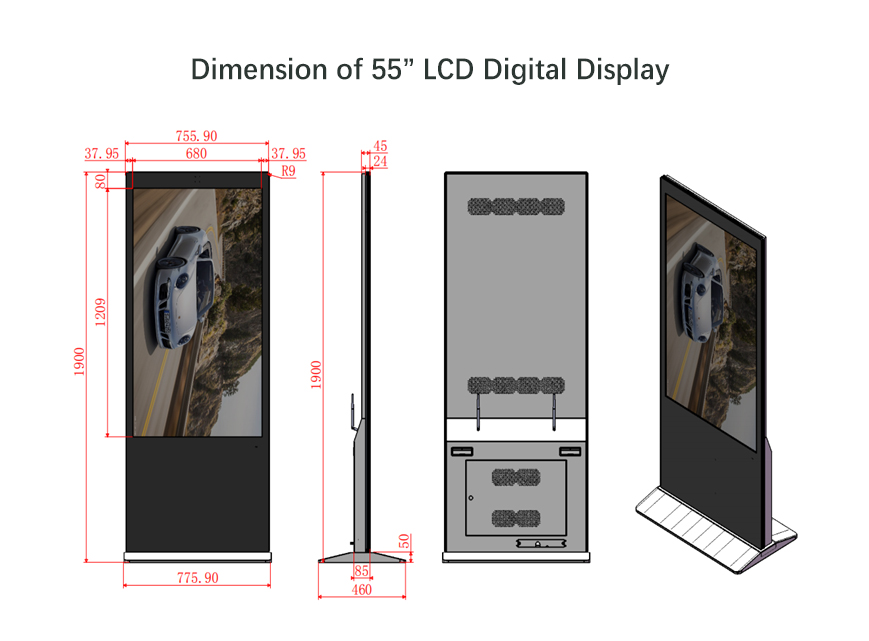

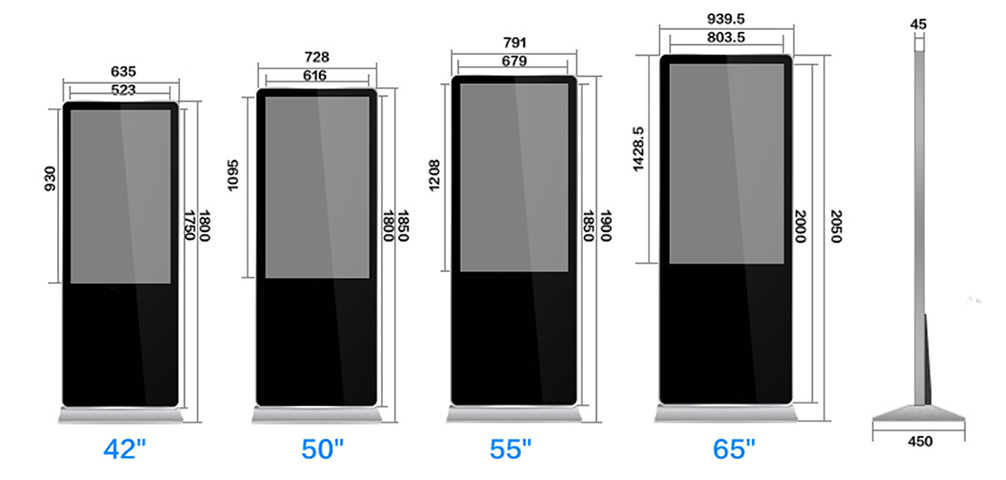

Product Dimension | 779*475*61.6 | 1800*635*458.5 | 1850*707*460 | 1900*755.9*460 | 2097.87*905*560 |
Active area | 696*392 | 940.896 x 529.25 | 1073.78x604 | 1209.6x680.4 | 1428.48x803.52 |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Contrast Ratio | 1400:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Brightness | 360 cd/m² | 300cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
Response time | 6ms | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
Color | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 10bit 1.07B |
Viewing angle | 178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
Stereo speaker | 10W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |

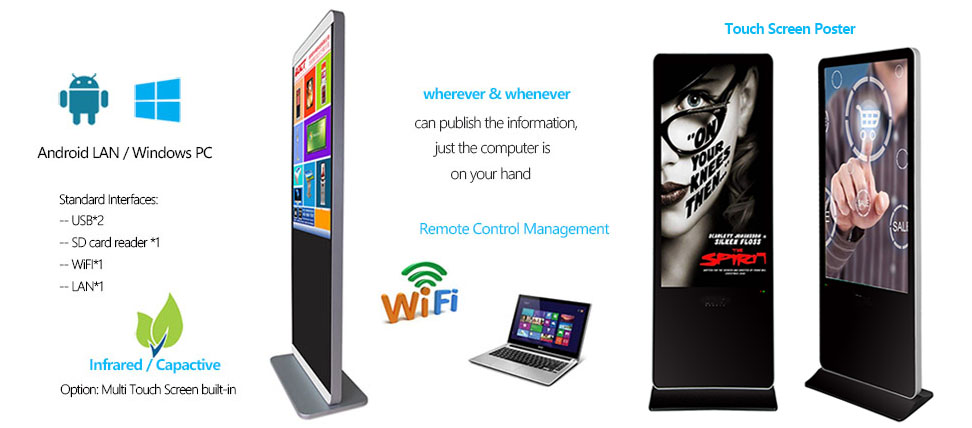

Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT |
HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1 |
PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 |
PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4;HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 |
Management Software | the default standard with advertising publishing software for the terminal android unit (including console and playback terminal) LAN Network computer server + unit terminal |

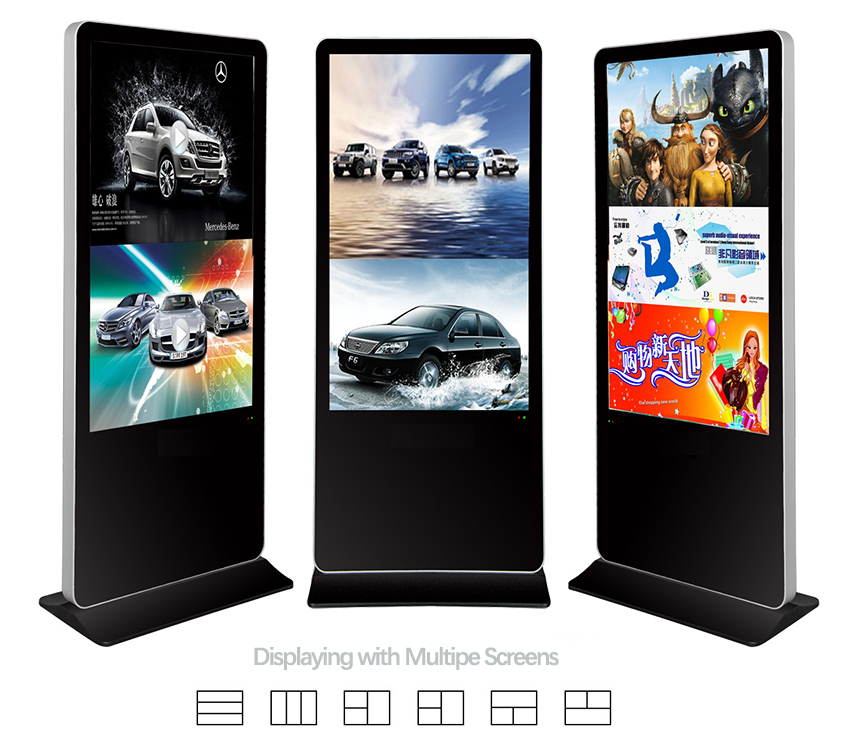

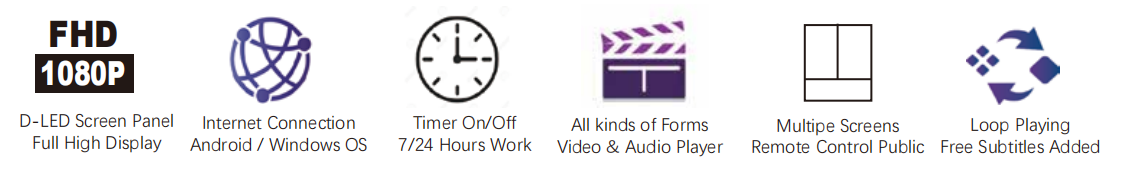

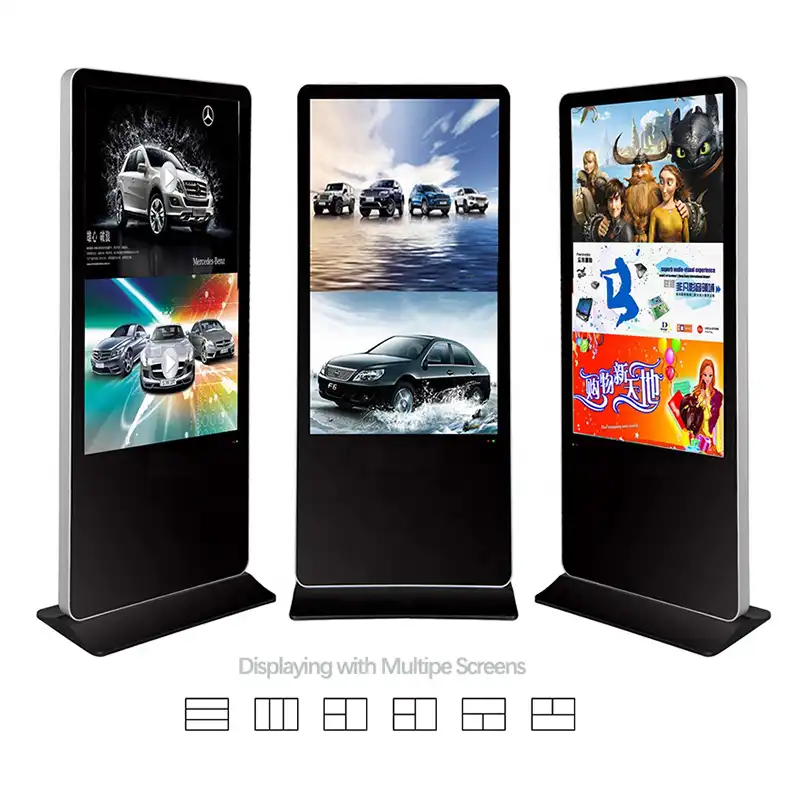

support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … |
Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects |
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass |
Work environment | Temperature: working 0℃~40℃, Storage: -20℃~55℃ ; Humidity: 10%~90% RH Non-Condensing, Storage: 20%~80% RH Non-Condensing |
The day longest time : 7/24 (days/hours) |
Power | AC 100-240V 50/60HZ; Stand by ≤1W |
|
≤60W | ≤60W | ≤80W | ≤150W | ≤200W |
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 |
Accessories | CD, Power Cable 1.8m, User Manual |
