info@itatouch.com |
+ 86 13582949978 Card Reader Built-in
This touch screen with card reader & carmera
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
ultrashort multi touch screen video wall video frame ITATOUCH company
Model#:
HT-22D
Touch Screen:
Projected Capacitive 10points
Screen Panel:
1920x1080P
Android OS:
Android / Windows
Windows OS:
Built-in, Intel I3 /I5 /I7, 4GB/8GB
Main Interfaces:
USB, HDMI, VGA,
Min. Order Qty:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Supply Ability:
5000piece per month
Sea Port:
Shenzhen, China
Shipment Mode:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Size Range:
18.5", 21.5", 24", 27"
Enterprise Strength
- ITATouch has professional technicians and high-quality management personnel to ensure product quality and promote corporate development.
- The ability to provide service is one of the standards for judging whether an enterprise is successful or not. It is also related to the satisfaction of consumers or clients for the enterprise. All these are important factors influencing the economic benefit and social impact of the enterprise. Based on the short-term goal to meet customers' needs, we provide diverse and quality services and bring good experience with the comprehensive service system.
- ITATouch always sticks to the business philosophy of 'efficient cooperation and mutual benefit'. We adhere to the enterprise spirit, which is to be hard-working, pragmatic and diligent. It would be our pleasure to partner with you and together, we can create a better tomorrow.
- ITATouch was founded in 2009. With years of unremitting efforts, we are now a company with certain industry influence.
- ITATouch's sales network covers many provinces and cities at home and abroad.
1. ITATOUCH video wall flat panel display adopts streamlined production process to minimize waste. Technology Innovation, Intelligent Life
2. The quality of the product has been greatly assured by our complete quality control system. One touch gives you convenience
3. The internal R&D capability and efficiency of Shenzhen ITA Touch Technology Co., LTD are impressive.
4. Shenzhen ITA Touch Technology Co., LTD highly values efficiency and will promise on-time delivery for our customers. Intelligent products can be found in Ita Touch

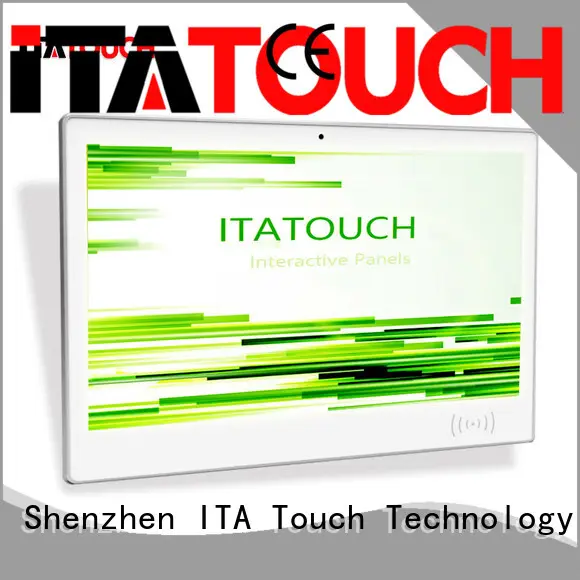

PACP Multi Touch Screen Display
Camera, Card Reader, Android/ PC
ITATOUCH produces the small size capacitive touch screen display for any commercial use, projected capacitive technology, built-in Camera, Card Reader,etc. customized supporting. User could select the device por actual use.
And
Normal Appanrance
The standard touch screen, built-in carmera option
Products Details
Capacitive Technology
ITATOUCH Interactive Flat Panels integrated in projected capacitive touch screen, full high-definition 1080P display, android OS / Computer, and the client could choose other configurations also, such as: built-in camera, carder reader … etc.
PCAP Touch Screen
Projected capacitive touch screen technology, 10 points finger touch, intelligence gesture, write smoothly
Built-in PC / Android OS
Android OS, 2GB RAM, 16GB flash Nandi. or PC Intel I3 /I5 /I7 4GB/8GB option
2K 1080P FHD
FHD 1080P screen panel from LG, SAMSUNG, AUO .. , quality A+, perfect out-looking
Customized Supporting
Supporting cusotmized, built-in camera, card reader,etc. hotsale stylish
The standard android board is high-performance RK3368, quad-core CPU 1.8GHz, 2GB RAM, built-in PC Intel J1900, I3, I5, I7, 4GB/8GB option.
Since the high-integrated all in one feature, it would be widely applied classroom, school, store, supermarket, station, airport, office, etc for information display, checking for any smart use, which strongly improves the working effectiveness
- FHD 1080P display
- Projected capacitive touch screen, 10points
- Android OS or Windows OS, WIFI built-in
- Built-in Camera, card reader option
- Two kinds of the appearance for the different applications
- Full sizes: 18.5”, 21.5”, 27”
SPECIFICATION
| Screen Panel | Size | 18.5" | 21.5" | 27" |
| Sceen panel | LCD LED backlight | |||
| View Area | 409.8*230.4mm | 476.64x268.11mm | 597.6*36.15mm | |
| Resolutions | 1366*768 | 1920*1080 | 1920*1080 | |
| Contrast | 600:1 | 3000:1 | 3000:1 | |
| Brightness | 350cd/㎡ | 250cd/㎡ | 300 cd/㎡ | |
| Response time | 8ms | 6.5ms | 12ms | |
| Viewing Angle | 100°(H) / 75°(V) | 170°(H) / 160°(V) | 178°(H) / 178°(V) | |
| Lifetime | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | |
| Speaker | 2W*2,8Ω | 2W*2,8Ω | 10W*2 | |
| Android (Option) | Mainboard | RK3368 A83T 8cores 1.8GHz CPU, Memory 2G, 64bit, Flash Nand 8G, WIFI, Android 5.1 OS | ||
| Computer (Option) | Mainboard | H61 / H81 Chipset | ||
| CPU | InteCorei7/i5/i3/G2030/Celeron CPU 1150-pin | |||
| RAM | DDR3 1333Mhz 4G/8 | |||
| Storage | SATA500G；SSD60G/120G | |||
| WiFi | yes, with antenna | |||
| OS | Compatiable with WINDOWS 7/8, 10.. Etc | |||
| Interfaces | I/O | USB*2, RJ45*1; SD*1; Microphone *1 | ||
| Touch (Option) | Technology | Capacitive 10point touch. Free driver, finger touch; 95% touch area, accuracy ± 2mm | ||
| Camera (Option) | Module Size | 55.2mm × 19mm × 24.5 mm; 2~5 millon piexls, USB2.0 interface | ||
| Object distance | 15CM-80CM | |||
| Card Reader (Option) | agreement: ISO14443A/ISO14443B/ISO15693 , Frenqucy: 13.56MHZ, Communication Interface: TTL; | |||
| Others | Button | Power on/off, Light lamp | ||
| Power Supply | Power | AC100 V ~ 240 V, 50-60 Hz | ||
| Consumption | ≤40W | ≤60W | ≤60W | |
| Standby | ≤1W | ≤1W | ≤1W | |
| Envirnorment | Temperature | Working: -20℃~60℃, Storage:-40℃~85℃ | ||
| Humidity | Working: 10%~90%RH, Storage: 10%~95%RH | |||
| Max working time | 18 hours /day | |||
| Apprance | Case | Aluminum alloy frame with paint sliver | ||
| Installation | Wall mounted | |||
| Package | Products | 467.1x299.1x52.6 | 532.72x336.72x51.6mm | 655.1x405.1x53.1mm |
| Packages | ||||
| Weight | N/W 5.5KG | N/W 6.5KG | N/W 7.8KG | |
| Accessories | Power cable, wall mounts, user manal | |||
Remark: just for reference, the actual parameters will be some deviations per different components.
Dimensions
18.5inch’s
++
21.5inch’s
++
27inch’s
++
Package
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety.
FAQ
Q: This andriod touch scree monitor could be customized?
R: Yes, offer customizied service, OEM welcome. Please give us what you like to, such as camera, card reader, android board ... etc .
Q: What is the MOQ for customized.
R: MOQ: 10pcs.
Q: How Long Leadtime for customized units.
R: It would be around 15~25pcs, which is based on the status of the changing. if no constructure change, then around 10days. it could be talk in case by case.
.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Which accessories would be included for the package of this interactive panels?
R: the package accessories as below,
1* Remote Control
1* USB Cable
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* USB Cable
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* Wall Mounted
Company Features
1. Shenzhen ITA Touch Technology Co., LTD offers customers with professional production and product design.
2. we have successfully developed a variety of touch screen video wall series.
3. ITATOUCH applies high-end technology to produce the highest quality electrical display stand. Contact!
