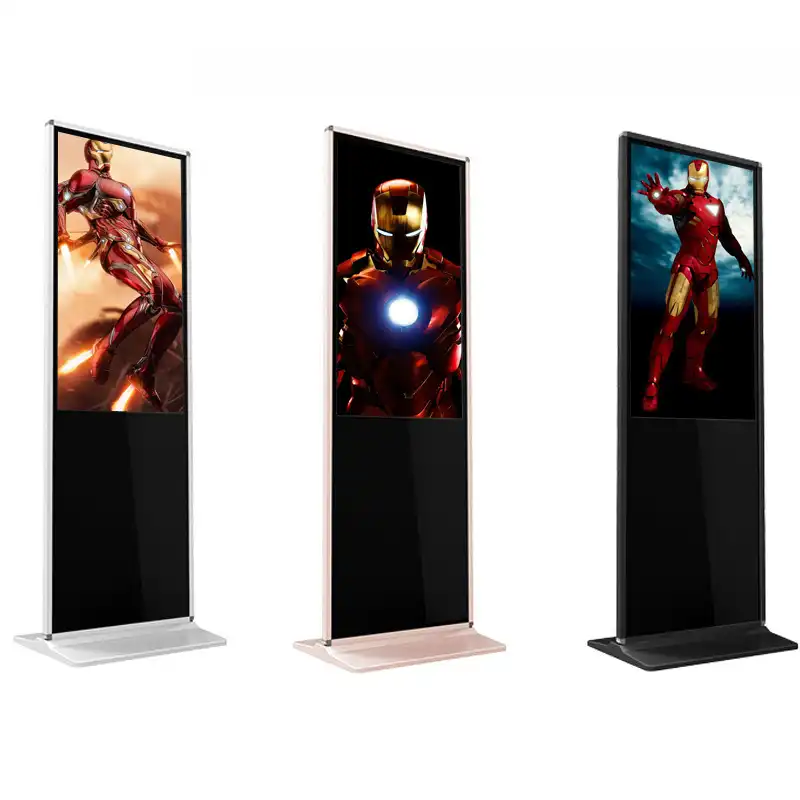

Vertical Ad Floor Stand Advertising Tv Wifi Media Player Led Digital Signage Display Monitor Hot Sellers Multi Inch TFT 4GB 1GB1
5.0
Size Range:
50
Touch Tech:
20 ~40points
Resolution:
1920x1080
OS:
Android 6.0 OS, 8.0 OS,
Interfaces:
USB,, HDMI MIC, RS232, VGA
Computer :
OPS PC attachable, Intel i3/ i5 / i7
Supply Ability:
2000
Min. Order:
1
Payment:
TT
Shipping:
BY SEA BY AIR
Port:
SHENZHEN
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
FULL SERVICES & COLLABORATION
OVER 10 YEARS EXPERIENCES INTERACTIVE PRODUCTS!
Hot Sellers Multi Inch Vertical Ad Floor Stand Advertising Tv Wifi Media Player Led Digital Signage Display Monitor
Product Description
Product Description
Indoor Android Lan Networking LCD Floor Stand Advertising Display with Ultra Thin Shell
Hardware & Software
* Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
* Net-working management software: The software will be installed if needs before delivery.
Optional: Built-in PC - X86 Configuration Advertisng Solutions
(Intel I3, i5, I7, 4GB RAM, 120GB SSD)
Specificaton
Specification of Digital Signage and Displays
| Display Size | 32" | 43" | 50" | 55" | 65" |
| Product Dimension | 779*475*61.6 | 1800*635*458.5 | 1850*707*460 | 1900*755.9*460 | 2097.87*905*560 |
| Active area | 696*392 | 940.896 x 529.25 | 1073.78x604 | 1209.6x680.4 | 1428.48x803.52 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Display Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 |
| Contrast Ratio | 1400:01:00 | 4000:01:00 | 4000:01:00 | 4000:01:00 | 4000:01:00 |
| Brightness | 360 cd/m² | 300cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
| Response time | 6ms | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
| Color | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 10bit 1.07B |
| Viewing angle | 178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Stereo speaker | 10W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||
| HDMI-compatible-compatible ×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1 | |||||
| PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 | ||||
| PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4;HDMI-compatible *1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | |||||
| Management Software | the default standard with advertising publishing software for the terminal android unit (including console and playback terminal) LAN Network computer server + unit terminal | ||||
| support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … | |||||
| Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects | ||||
| Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass | ||||
| Work environment | Temperature: working 0℃~40℃, Storage: -20℃~55℃ ; Humidity: 10%~90% RH Non-Condensing, Storage: 20%~80% RH Non-Condensing | ||||
| The day longest time : 7/24 (days/hours) | |||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| ≤60W | ≤60W | ≤80W | ≤150W | ≤200W | |
| Certification | CE, FCC, ROHS, ISO9001, ISO14000 | ||||
| Accessories | CD, Power Cable 1.8m, User Manual | ||||
Other sizes 15.6", 21.5", 24", 27" Advertsing Displays option
Support partial customize, such as built-in printer, card reader ... etc Factory Price offer.
OEM | ODM supporting!
The Dimension for Normal Sizes of Digital Signage and Displays
Remark: the actual measurements may be some differences according to its actual shape and configurations.
Clarification for The Customization:
For customized product, changes is including the following,
1. Out-looking & Color, include based stand.
2. Configurations different: card reader, android LAN (default equipment), PC built-in
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 20pcs)
5. Built-in printer, card reader ... etc.
Packaging & Shipping
Small Qty Order (1~5pcs) to be Air shipping EXPRESS /DHL/FEDEX/UPS....
Bulks (Obove 10pcs) to be sea shipment.
One floor standing totem is packed by two cartons usually, body and base stand are packed separately to save volume weight, details please check with salesman, thank you!
