A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

video wall flat panel display top rated vertical control ITATOUCH Brand 1
video wall flat panel display top rated vertical control ITATOUCH Brand 2
video wall flat panel display top rated vertical control ITATOUCH Brand 3
video wall flat panel display top rated vertical control ITATOUCH Brand 4
video wall flat panel display top rated vertical control ITATOUCH Brand 5
video wall flat panel display top rated vertical control ITATOUCH Brand 6
video wall flat panel display top rated vertical control ITATOUCH Brand 7
video wall flat panel display top rated vertical control ITATOUCH Brand 8
video wall flat panel display top rated vertical control ITATOUCH Brand 1
video wall flat panel display top rated vertical control ITATOUCH Brand 2
video wall flat panel display top rated vertical control ITATOUCH Brand 3
video wall flat panel display top rated vertical control ITATOUCH Brand 4
video wall flat panel display top rated vertical control ITATOUCH Brand 5
video wall flat panel display top rated vertical control ITATOUCH Brand 6
video wall flat panel display top rated vertical control ITATOUCH Brand 7
video wall flat panel display top rated vertical control ITATOUCH Brand 8

video wall flat panel display top rated vertical control ITATOUCH Brand

Model#:
HT-42D T1
Touch Screen:
Infrared Multi Touch 10point
Screen Panel:
1920x1080P
Android OS:
Android & Windows
Windows OS:
Built-in PC, Intel I3 /I5 /I7, 4GB/8GB
Main Interfaces:
USB, HDMI, VGA
Min. Order Qty:
5piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Supply Ability:
5000piece per month
Sea Port:
Shenzhen, China
Shipment Mode:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Size Range:
21.5
Inquiry
Company Advantages
1. Ita Touch: Offer the Best Intelligent Products. Presented products are enormously appreciated by ITATOUCH customers for characteristics such as video wall flat panel display and video wall with touch screen.
2. Technology Innovation, Intelligent Life. ITATOUCH – a famous brand of touch screen video wall,free standing interactive whiteboard, proudly designs and produces electrical display stand,mobile tv stand for sale.
3. prices of interactive smart boards is used for protection to control the smart interactive whiteboard. Ita Touch-Start your Intelligent Life
4. outdoor digital signage price is considered as the most promising whiteboard electronic smart board for outdoor digital display board. One Screen, One Ita Touch


Interactive multi touch table is usually used for kids education, office conference, hotel meeting, goverment working, etc.


ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |

Floor waterproof interactive multi touch table for restaurant ordering

ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-1

Projected capacitive touch screen table for office meeting discussion

ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-2

Interactive infrared multi touch screen table for hotel presentation


ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-3

Round corner Infrared mutli touch interactive table for kids learning

ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-4

Projected capacitive touch screen table 40points for shop working designer

ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-5

Tea / Coffee interactive table multi touch screen for office, goverment, supermarket use



Products Details


HITATOUCH

Interactive Touch Table integrated the high quality of touching, PC and FHD screen panel, a prefect design and its good finish, which offers you a interactive and pleased playing, learning and vivid presentation.
So you can easily enjoy the multi touch screen experience. Furthermore, you can use it as an information & displaying machine for its beautiful stylish appearance as well as  powerful functions.

CUSTOMIZED CLARIFICATIONS:

1.  Customers only clarify what features & use / applications will be needed, then HITATOUCH will design it according to  their requirments and offer for approval. But it had better provide the similar design or pictures for us as reference if you had.
2,  MOQ: 5pcs.  (sample could be supported, but will charge some cost for design and special labour)

SPECIAL REQUIREMENTS FOR OPTIONS:

● Infrared Multi Touch Screen--- 10 ~32points, finger or any objects touch.
● Projected Capacitive Touch --- 10 points /40points finger touch, waterproof function l
✲PC Options : Intel I3/I5/I7, 4GB/8GB RAM, 500GB HDD / 64GB/128GB SSD , WIFI
✲Card Reader, Fingerc Printer, Code Scan , Light Box, etc.

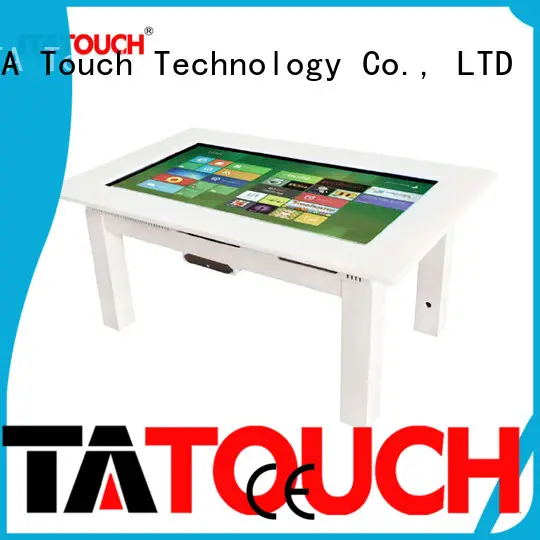

LED Multi Touch Screen Table


SPECIFICATION:



Basic Parameters

Active Size

42”

Glass

Tempered    glass

Glass Thickness

4mm

Construction

Wood table, Aluminum frame, tempered glass, LED    screen, built-in PC

Speaker

10W*2, 8Ω

Standard interface

USB2.0*2, USB3.0*2,HDMI*2, RJ45,    Binaural Headset Jack,
     Audio input/output, TV Tuner

Operating System

Windows 7 OS, Windows 8 OS

Power Consumption

Max 170W

Power Supply

Input AC: 100 ~ 240 V

Outline Dimension

1120mm(W)* 715mm(H)* 530mm(D)

Warranty

1 Year parts and technology support


Multi-touch Frame

Technology

Infrared Multi-touch

Detectable Touch Points

4, 10, 16, 32, 64 or more touch Points (Max to 256    points)

Data Connection Options

USB Series A

Touch Method

Finger, gloved hand or any other nontransparent

Touch Activation Force

No pressure needed

Finger Touch accuracy

>5mm

Report Resolution

4096*4096

Touch Durability

Unlimited

Touch Response Time

8ms - 15ms

Environment

Operating temperature: 0°C to 55°C;

Storage temperature: -25°C to 85°C

Operating humidity:10% to 90% RH,    non-condensing

Storage humidity: 10% to 90% RH, non-condensing


Micro PC

CPU

Intel Corei3-3240 CPU 3.4GHz    (i3,i5,i7 being optional)

Main board Chipset

Intel H61

Memory capacity

2.00GB (4GB, 8GB being optional)

Hard Disk

320GB/500GB/1TB

Display Chip

Intel    HD Graphic 2500
     (being different    according to different models)

Network Card

Internal wireless network card


LED Panel

Model

LCD(LED Backlight)

Active Size

42inch

Outline Dimension

968.4(H) × 564(V) X 18.3mm(D)    (Typ.)

Pixel Pitch

0.4845mm x 0.4845mm

Pixel Format

1920 horizon by 1080 vert. Pixels,    RGB stripe arrangement

Color Depth

8Bit(D), 16.7Million colors

Luminance, White

360cd/m2

Contrast Rate

1400:1

Viewing Angle (CR>10)

Viewing angle free ( R/L 178    (Min.), U/D 178 (Min.))

Display Mode

Transmission mode, Normally black

Surface Treatment

Hard coating (2H), Anti-glare    treatment of the front polarizer (Haze 10%)



APPLICATION CASE



ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-6

ITATOUCH-Interactive Table Led Infrared Multi Touch Screen Kids Learning Table |-7



Package


The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.



Container loading - the package with pallet and plastic flim to anit-damaged and waterproof


The workers are setting the safety strips to avoid shocking damaged during shipment.


Air shipment for small order quantiy - settle woodencase or pallet with stripe to ensure safety.




FAQ


Q: Which accessories would be included for the package of this interactive coffee table?

R:  the package accessories as below,

1* Remote Control
1* USB Cable
1* Power Cable  (the international standard, such as: EU, UK, US ..  per usser location)
1* HDMI Cable  (if device with HDMI interfaces)
2* Touch Pens



Q: What is the MOQ &  Lead-time?

R: Customized,  MOQ: 1~5pcs, Leadtime: within 30days



Q: How long time is for the warranty?

R:  Usually it is one year.  Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.



Q: How to order it?

R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.






Q: Does ITATOUCH provide the OS for the interactive touch table with OPS PC ?

R:  Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needs, since we are the hardware interactive touch screen manufacturer.





Company Features
1. ITATOUCH is quality-oriented and has gained wide market in touch screen video wall field. - At present, Shenzhen ITA Touch Technology Co., LTD has advanced production lines and various testing equipment for electrical display stand.
2. Over hundreds of skilled smart interactive whiteboard technicians provide customers with the most sophisticated products.
3. ITATOUCH has been always stressing the importance of outdoor digital signage price . - Ensuring a harmonious environment between employees can provide the best outdoor lcd displays. Welcome to visit our factory!
