Wholesale multi screen video wall interactive suppliers for education

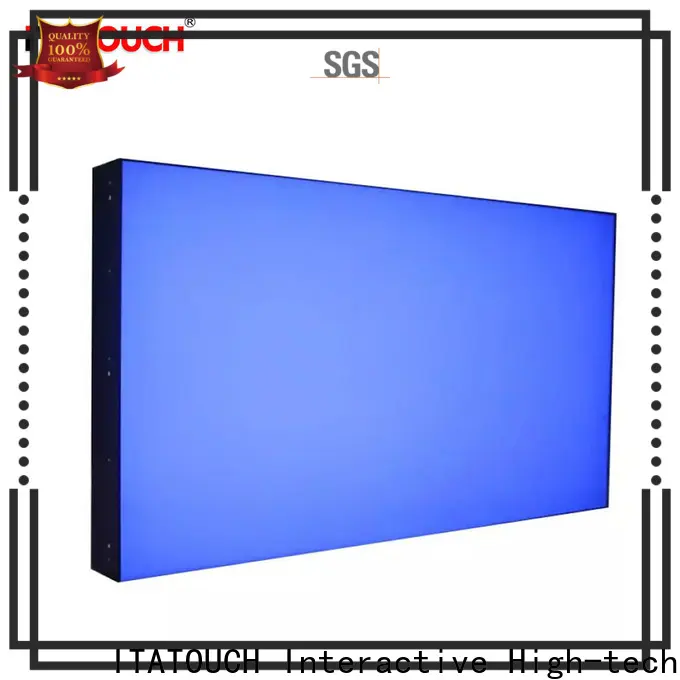

Video Wall with Multi Touch Screen
The large screen video wall with infrared multi touch screen technology, several people are playing the images / pictures smoothly… smart gesture recognition
* 1080P Full HD Display
* Support Remote Control by LAN connections
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Split Screen displaying
* Security Design, industrial mainboard, and tempered glass
* Support media files in different formats
Mobile Stand Installatiton
This is 2*2 49" mobile stand installation of video wall for commerce show presentation, 3.5mm splicing seam.
Wall Mounted Installation for LCD Video Wall
3.5mm Splicing seam with 3*4 55 inch LCD screen panel
maximized displayig
| Screen Panel | |||||
| Size | 32" (Customized) | 42" | 50" | 55" | 65" |
| Panel Brand | LED backlight, TFT screen panel | ||||
| Display Area (mm) | 930.2*523.2 | 1039.68*584.82 | 1209.6*680.4 | 1428.42*803.52 | |
| Resolution | 1366*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness (typ/min) | 350cd/m2 | 360cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
| Contrast (typ) | 4000:01:00 | 4000:01:00 | 1400:01:00 | 1400:01:00 | 4000:01:00 |
| Response Time | 8ms (typ) | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
| Pixel Pitch | 0.51075*0.17025 | 0.4845*0.4845 | 0.5415*0.5415 | 0.630*0.630 | 0.802*0.802 |
| Visual Angle | R/L 160° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Life (typ) | 3000hrs (min) | 3000hrs (min) | 5000hrs (min) | 3000hrs (min) | 3000hrs (min) |
| Color Saturation (*% NTSC) | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 |
| Colorful | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 16.7M |
| Stereo speaker | 5W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android LAN Work Solutions | |||||
| mainboard | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2 | ||||
| Internet | RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||
| Input | USB2.0*2, TF*1, RJ45*1, DC12V*1 | ||||
| Output | HDMI*1, MINI AV*1 | ||||
| Features | Support all the usual audio formats | ||||
| Support music library, tag search, online streaming media | |||||
| Video | 3D 1080P; Video Decode AVI(h.264,DIVX,XVID,RM,RMVB,MKV,WMV,MOV,MP4,MPEG | ||||
| Flash | Support Adobe Flash V11.1 or Later | ||||
| Picture | Support JPEG,GIF,PNG,BMP files; Picture rotating, zooming out, support painting,(Gallery) | ||||
| others | Google Brower, Google APP, Market/APP Store download APK and games Google Map, Email | ||||
| Calculator, Calendar, files manager; Office documents (TXT,PDF, Office Doc/Xls/PPT editor) | |||||
| Support flash subtitle, Log management, time on/off, | |||||
| Normal LAN built-in PC Solutions | |||||
| Mainboard | Sigma 8635 mainboard ( LAN system) ; X86 mainboard ( built-in PC) | ||||
| Memory | SD card - 4GB option (can be expanded to 32GB) | ||||
| Network | IEEE802.3 10/100M Ethernet LAN | ||||
| Input | USB2.0*1; RJ45*1 | ||||
| Option | CF *1; SD *1 | ||||
| Audio | Support full format file(1080P) | ||||
| Video | support MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB | ||||
| picture | Support JPEG,GIF,PNG,BMP files | ||||
| others | Security design; multi-display modes; | ||||
| Support flash subtitle, Log management, time on/off, display instand messaging | |||||
| Built-in PC (option) | |||||
| PC | Intel J1900/ I3 /I5 CPU, 4G memory, 500G HDD Wi-Fi with Antenna (option) | ||||
| Interfaces | Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Touch Screen Option | |||||
| Touch Screen | Optional, Infrared multi touch points, Finger touch, gloved hand, or any opaque objects | ||||
| Other Features | |||||
| Case | Metal backside case, Aluminum Frame, 4mm Tempered Glass | ||||
| Work | Temperature: 0℃～40℃: Humidity:10%～90% | ||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| Consume | ≤30W | ≤60W | ≤100W | ≤130W | ≤130W |
| Quality appliance | CE, FCC, ROHS | ||||
| Accessories | CD, remote control, cables, user instruction | ||||
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, including Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to prevent damage and water.
Workers are setting packing belts to avoid shocking damage during shipment.
Air shipment for small order quantity - settle wooden case or pallet with packing belts to ensure safety.
Q: Which accessories would be included for the package of this interactive touch display?
R: the package accessories as below,
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long is the warranty period?
R: Usually one year. Three yesrs for some special occasion, except the sceen panel (since the factory of screen panel only offers us one year warranty service). we could talk case by case
Q: How to order it?
R: Please send your inquiry, or call us. The process please refer to the OEM / ODM service page.
Q: Does it include remote control managment software ?
R: We offer the programme with the basic features, such as: flash player, divided screen, subtitle, log managment, time on/off ... etc.
