A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

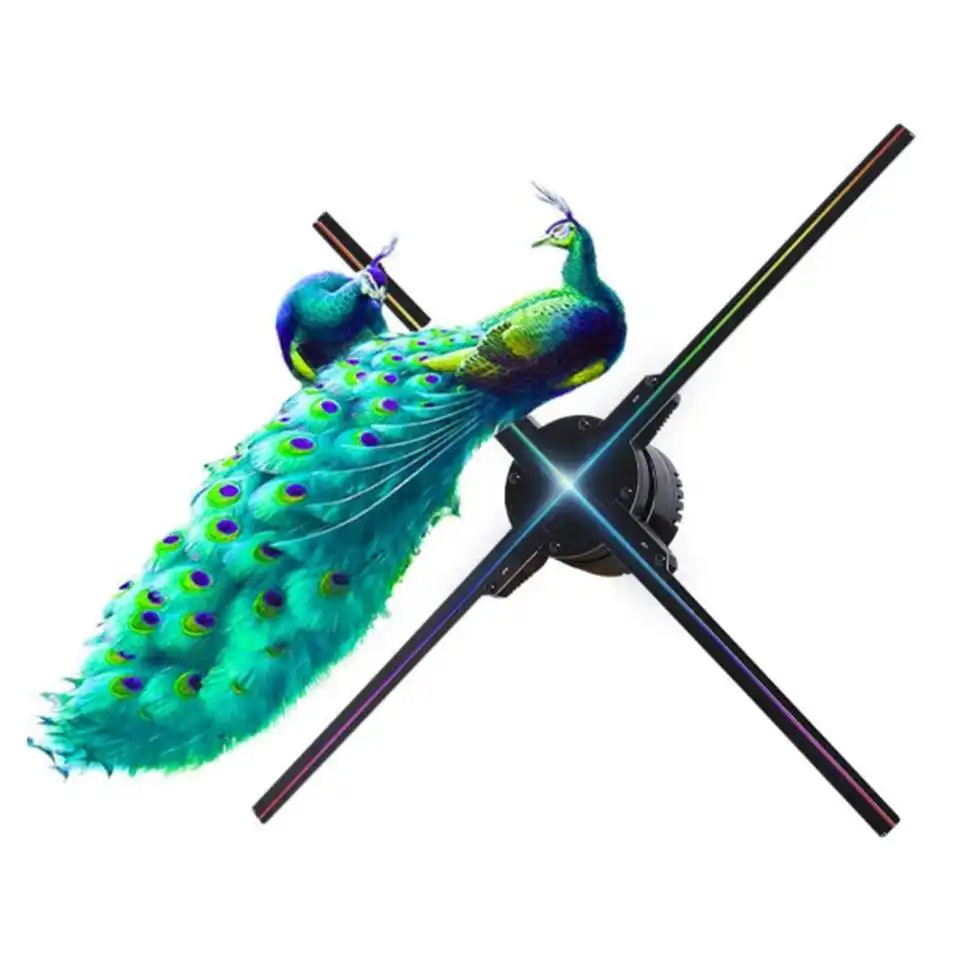

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 1

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 2

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 3

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 4

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 5

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display 6

65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display

Inquiry

Write a Review

70cm Head Mount Splicing screen Hologram Advertising Fan Led Android LAN Network 3d Holographic Display

High Brightness, APP Remote by Mobile Terminal

inquiry: info@itatouch.com Wechat: +86 13582949978

Product Description

ITATOUCH factory own the professional 3D holographic display technology, and equipment the remote control software, user can publish / send the advertising information contents, as video, image, words by mobile phone, computer, iPAD, android tablet ... mobile terminal. include power on / off the display .

The hologram fan software compatible with android OS, MAC OS, WINDOWS OS.

It is applied to the advertising industry, such as: launching ceremony, cultural and entertainment performances, annual meeting activities, new product launch, large amusement places, wedding venues, real estate sand table, physical stores, shopping malls, airports, auto shows, exhibitions, chain stores, window, museums, catering and entertainment industries, etc

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display-

ITATOUCH 3D Fan Holographic Advantage:

1. High definition and color restoration: the size of the main reference lamp, the smaller the lamp, the denser the definition, the higher the quality and technology of the next lamp.

2. High brightness: high brightness of carbon brush scheme, low brightness of wireless power supply

3. Splicing: multiple splicing functions, launch the first cloud splicing in the industry

4. Cluster: the most stable and powerful cluster function in the industry

5. Functions: the most complete functions (switch, on-demand, brightness adjustment, restart, timing switch, add and delete video, status query, support Bluetooth audio, volume adjustment)

Provide four kinds of the solutions for Users

1. Stand alone version (point-to-point): it is simple and convenient, and can only be connected to the device WiFi for single device control

2. Network version (cloud IOT version): account registration is required, remote centralized control is available, one click upload is supported, offline upload is supported, and online devices and apps must be guaranteed

3. PC version: splicing control computer software, LAN control.

4. Web end: for enterprise applications, it has remote control and management functions

Product Details

This is a splicing solution 3*2 holographic fan

The installation by the stand.

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--1

The Basic Parameter of ITATOUCH 3D hologram fan

1. Android 7.1 OS, ARM Quad-core 1.5G Processor 8GB storage.

2. Support controlling by point-to-point and network remote control; clustering, splicing, user can select the suitable solutions per various requirements.

3. High brightness: 1600cd/square meter, support indoor , outdoor display (with protected shell)

4. Support Bluetooth audio output, simple and easy.

5. Support all formats of images & videos（black background）

6. Control Method: Wi-Fi（2.4G）, Management App for the mobile terminal, such as android mobile phone, Apple phone, Pad, Tablet ... etc. it is very convenient and easy use.

7. Power on/off, Content Publishing .. etc by Mobile Terminal Controlling.

8. High Density of Light Beads 254pcs *4 bars to ensure the full high definition display, full real colorful, enhance the reviewing effects.

9. Support Windows OS , IOS, Android OS.

10. Materials for hologram fan digital panel: ABS+PC/AL

11. Lifetime: 30000 hours

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--2

the programme of the hologram fan display will be installed into the android board before assembling. user can directly use the 3D holographic display after installed the management app into their PC / Mobile Phone / Android Tablet / Ipad,

simple and convenient.

The power board will be assembled inside of the shell box

Place a metal shell above the power board, then assemble android board

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--3

Four pieces of the light strip bar installed finally.

The 3d fan with high density of led light beads, 1024pcs, which can display a vivid and real-time video, images .. etc.

24 hours baking

ITA Touch factory will 100% inspect the product after finish assembling, open 24hours to check if there is any LED light bead got bad and the display effects.

Product Paramenters

Parameter
Model#	X3
Display size	70CM
Max Power supply	120W 24V
Video format	Support all formats of images & videos（black background）
Control method	Wi-Fi（2.4G）
Input Volt	100-240VAC,50/60HZ
Color	Black
Quantity of Light Beads	256*4
Running OS	Android 7.1
Compatible OS	Support Windows, IOS, Android
CPU	ARM Quad-core 1.5G Processor
Storage	8GB
Products Dimension	75cm75cm7cm
Video Format	Support JPG GIF MP4 AVI RMVD MPEG
Video background	image & video（black background ）
Weight	0.78KG
Display Angle	176 degree
Permeability Rate	92%
Noise	55Db（with the cover protection）
Materials	ABS+PC/AL
Lifetime	30000hours
Max Resolution	1024*1024
Frame rate	24 frame/sec
Brightness	1600cd/m2
Environment Temperature	-30~60℃
Working environment	Indoor, outdoor (with the protected cover）
Audio output	Support Bluetooth
Features	Support controlling by point-to-point and network remote control; clustering, splicing

Remark: 75cm length of holographic 3d fan option.

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--4

3D Hologram Display for Train Stain

The high-speed train station installed the hologram fan to display all kinds of adverting images and videos.

The holographic 3D Fan for the Shopping Store

This fan 3d holographic with transparent cover box to display the various of the goods, as the ring.

The Mobile Stand for 3D HOLO Fan

The movable stand can be customized per the sizes of the hologram fan splicing. Customer only need to offer us how big area need to be installed the holographic 3d fan, then ITATOUCH can calculate how many hologram fans will need, and equip with the suitable mount mobile stand by a small program.

Products Installation

Running System Requirements for 3D Hologram Fan Splicing Screens

Computer: Above E5 CPU, Storage：>= 64GB SSD RAM：16GB DDR3 or above Operation System：Windows 7 above Router: It had to be TPlink-AC1900 , which one could be connected with 20 pieces of holographic advertising display

Installed The Management Software for 3D Digital Adverting Fan

Program name: HoloPlayer.msi

User can remote public any information by PC to manage all hologram fans.

Scan 2D code

Click the icon of access to scan the 2D code to management the place and height / direction.

Remark: each 3D holographic fan display will have the sole code when exw factory.

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--5

Manage the displaying Sort

User can manage what they want the hologram fan the displaying sort , and adjust the slant degree .. etc.

The 3d image / video can be displayed immediately when uploading.

Product packaging

3D Hologram Fan Package

The hologram fan will be put into thick foam with adapter, cable, installation accessories ... etc.

Small box for 1pcs 3D graphic fan

the foam with cover then will be placed into small box, the box dimension:

565*125*565mm Gross Weight: 6.3KG

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--6

Carton box with 4sets of 3D hologram

4 pieces of small boxes will be packed together into a large carton box

Dimension: 585*525*585mm Gross Weight: 27KG:

Why Choose It

Core Technology

* Own the key technology for 3D hologram fan * Full series offer, from point-to-point and network remote control; clustering, splicing * Smart management system, just mobile terminal controlling. * multi-dimensions and whole splicing provider.

* HD display technology, indoor, outdoor option.

7*24hours on-line pre-sales & after-sales service

* ITA TOUCH people always here, provide quick response anytime & anywhere. * Offer the whole sets of the solutions with patient & detailed clarification according to client various requirements. * Quick and fully tracking delivery, feedback follow-up, Technical support, maintenance & replacement instructions, ITA TOUCH offer real and worry-free service.

product-65cm Head Mount Splicing screen Hologram Advertising Fan Led Android 3d Holographic Display--7

100% inspection to ensure the quality guarantee

* ITA TOUCH factory seriously comply with international quality standard, such as the CE, FCC, ROHS, BIS, CB. * The Audit from the initial infrared PCB starting, product assembling test, high-temperature baking auditing, all interfaces, and features trial, every process will be done 100% testing.
