Company Advantages1. Choosing the fabric suitable for ITATOUCH interactive flat panel display is one of the most important aspects of its production. The designer chooses its fabrics on the basis of fashion trends, quality, performance, price, and suitability. Produced with nano surface, the screen is highly sensitive
2. Shenzhen ITA Touch Technology Co., LTD has the right customer service skills. Ita Touch Interactive Boards are designed to be of multiple features
3. To ensure product quality, products are produced under the supervision of our experienced quality assurance team. Ita Touch screen is water-proof
4. In order to eliminate the possibility of all defects, the product needs to be thoroughly inspected by a professional quality inspector. With interactive intelligence features, Ita Touch can offer you a convenient and smart experience
Product Details

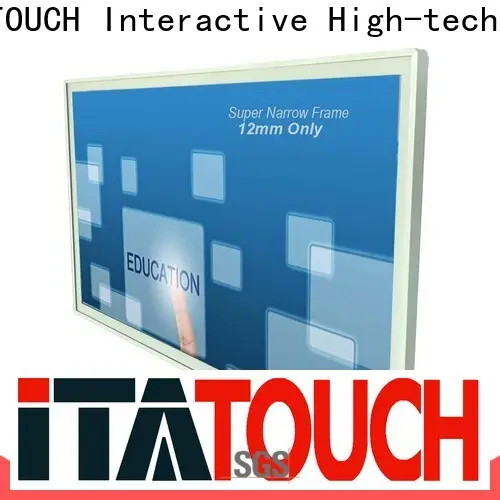

ITATOCUH commercial display with infrared Multi Touch Screen, Ultra Narrow Frame
only 12mm
Color customized: White / Black
Usually this digital display with android OS, 2GB RAM, 4GB/8GB flash nandi
ITATOUCH LCD digital signage display adopt LED back light screen panel with FHD 1080P resolution, usually the wall mount default configuration is android LAN network version.The materials of the case are aluminum frame with drawing painted treatment and metal backside with painted color, perfect finish. Infrared Multi Touch Screen TechnologyCUSTOMIZED & OEM supporting!
* IR 10points touch screen, finger touch to get what you wanna.
* 4mm tempered glass, anti-glared / reflective glass option
* The default configuration: Built-in Android board, 2GB RAM, 4GB Flash nandi
* The interfaces on the backside, HDMI in, USB, VGA
* Support full image and video format files for the player
* Standard equipment: wall mounted, power cable
* Table stand option, built-in camera also - need to be customized.
To be an Interactive Multi Touch Inquiry Table
Camera built-in the touch panel
Hardware of the LCD Commercial Display
Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shapeScreen panel : High definition display with printing
ITA TOUCH manufacturer adopt A+ quality screen panel for the touch screen unit
Factory LCD Multi Touch Screen Production Line
ITA TOUCH factory area 3500 square meters, own enough capacity for your touch screen order, welcome to joint us to expand more markets.
The Customized Clarification:ITATOUCH company support the customized products, user just offer below items to talk with sales,
The change / customized include the following
1. Out-looking & Colorful
2. Configurations different: android LAN (default equipment), PC built-in, touch monitor only
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 50pcs)
5. Built-in printer, card reader ... etc.
The Size Ranges fo This Wall Mounted Commerce Digital Smart Display : 32”, 43“, 49"/50", 55", 65"
Infrared Touch Display
Only 12mm Width
of the Frame
INFRARED MULTI TOUCH
The color and out-looking can be customized.
White / black, sliver ... etc.
Specification
The Technical Parameter for Multi touch screen panel display
Display Size | 32" | 43" | 49" | 55" | 65" |
Product Dimension | 779*475*61.6 | 1010*603*75.8 | 1150.5*682*77.2 | 1289*760*81.6 | 1508*883*85.6 |
Active area | 696*392 | 943.2.4*531 | 1077*607.5 | 1209*680 | 1427.08*805.32 |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Contrast Ratio | 1400:1 | 1400:1 | 3000:1 | 4000:1 | 4000:1 |
Brightness | 360 cd/m² | 360 cd/m² | 380 cd/m² | 380cd/m² | 350 cd/㎡ |
Response time | 6ms | 6ms | 6.5ms | 5.5ms | 6.5ms |
Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
Viewing angle | 178° | 178° | 178° | 178° | 178°(H) / 178°(V) |
Stereo speaker | 10W, 8Ω | 10W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
Android Solutions | Rk3368 eight core 64 bit cortex-a53, up to 1.5g in frequency, 2G in memory and 8g in flash memory |
Interfaces: HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1,WIFI×1 |
PC Solutions Option | Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4;HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 |
Multi Touch Technology | Infrared multi touch screen panel , support 6point - 10point touch; finger or any objects touch |
Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; |
Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; |
No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recongize etc |
Support Windows 7/ Windows 8 / Windows 10 |
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass |
Work environment | Temperature: working 0℃~40℃, Storage: -20℃~55℃ ; Humidity: 10%~90% RH Non-Condensing, Storage: 20%~80% RH Non-Condensing |
The day longest time : 7/24 (days/hours) |
Power | AC 100-240V 50/60HZ; Stand by ≤1W |
≤60W | ≤100W | ≤130W | ≤130W | ≤150W |
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 |
Accessories | wall mounted, Power Cable, User Manual |
Remark: just for reference, the actual parameters will be some difference per different componentsConfiguration of Android boards:
1. Rk3288 Quad Core Cortex-A17, frequency up to 1.8GB, memory 2GB, flash Storage: 8GB
2. Rk3399 Double Cortex-A72 + four cortex-A53, frequency up to 2.0 GHz, memory 2GB, flash storage: 8GB
Packing&Shipment
Small Qty Order (1~5pcs) to be Air shipping EXPRESS /DHL/FEDEX/UPS....
Bulks (Obove 10pcs) to be sea shipment.
Why Choose Us
About Us
ITA TOUCH Factory Production Lines
ITA Factory manufacture the interactive flat panel, interactive board, digital signage totem display, touch kiosk, 3D Holographic Fan Display ... etc
Welcome to visit us! We are always here!
Company Features1. Shenzhen ITA Touch Technology Co., LTD has strong technical force and exquisite workmanship.
2. We would like to constantly create new values with 'encouragement' as well as provide products and technology according to the viewpoint of customers and partners. Check now!
