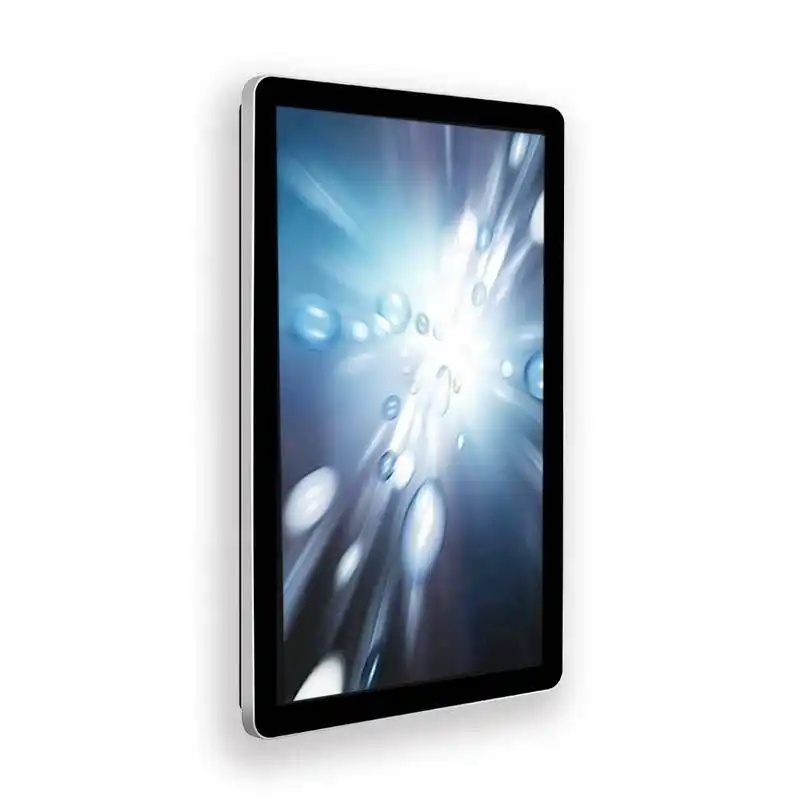

the wall mounted Advertising display applied to factory production lines for the process instruction ..
The color and out-looking can be customized.
White / black, green ... etc.
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
Best Seller Elevator LCD Screen TV Monitor Tempered Glass TFT 4mm D-LED Vertical Screens Android LAN Network 178 Degree 1GB 6ms
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Best Seller Elevator LCD Screen TV Monitor LED Android Digital Signage Advertisng Display
Touch Screen Display
Applied to Production Lines
Product Details
Interactive Touch Screen Option – Infrared / Capacitive Multi Touch Technology, finger or any objects touching.
* 1080P Full HD Panel Display
* Support LAN management control, directly issue any by sever computer.
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying screens.
* Security Design, industrial main board, and 4mm tempered glass
* Support full media format files
Hardware & Software
Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
Net-working management software
Each terminal/unit installed, the managment software to be installed computer sever if needs.
The following dimension of the sketch is for 21.5 inches floor stand display
other sizes option - 15.6", 19", 32", 43", 50", 55", 65", 75"
Customized Clarification:
a series of dimensions for various sizes, when the shape and configurations of the free standing digital signage are different, it will be a little change measurements.
The change / customized include the following
1. Out-looking & Colorful
2. Configurations different: android LAN (default equipment), PC built-in, touch monitor only
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 50pcs)
5. Built-in printer, card reader ... etc.
Specification
The Technical Parameter for Advertising Display
Remark: just for reference, the actual parameters will be some difference per different components
Display Size | 21.5" | 32" | 43" | 49" | 55" | ||||
Product Dimension | 524.9*320.9*47.1 | 779*475*61.6 | 1010*603*75.8 | 1150.5*682*77.2 | 1289*760*81.6 | ||||
Active area | 476.8*268,3. | 696*392 | 943.2.4*531 | 1077*607.5 | 1209*680 | ||||
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | ||||
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | ||||
Contrast Ratio | 1000:1 | 1400:1 | 1400:1 | 3000:1 | 4000:1 | ||||
Brightness | 300cd/m² | 360 cd/m² | 360 cd/m² | 380 cd/m² | 380cd/m² | ||||
Response time | 5 ms | 6ms | 6ms | 6.5ms | 5.5ms | ||||
Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | ||||
Viewing angle | 178° | 178° | 178° | 178° | 178° | ||||
Stereo speaker | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W, 8Ω | 10W,8Ω | ||||
Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||||||
HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1，WIFI×1 | |||||||||
PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 | ||||||||
PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | |||||||||
Management Software | the default : advertising publishing software for android solutions (including console and playback terminal) LAN Network: computer server + unit terminal | ||||||||
support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … | |||||||||
Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects | ||||||||
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass | ||||||||
Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃ ; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | ||||||||
The day longest time : 7/24 (days/hours) | |||||||||
Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||||||
≤40W | ≤60W | ≤100W | ≤130W | ≤130W | |||||
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | ||||||||
Accessories | CD, Remote Control, Power Cable 1.8m, User Manual | ||||||||
The wall mounted indoor display production lines: 15.6", 19”， 21.5“， 24”， 27“， 32”， 43“ ....
Packing
Small Qty Order (1~5pcs) to be Air shipping EXPRESS /DHL/FEDEX/UPS....
Bulks (Obove 10pcs) to be sea shipment.
