Interfaces: PUBLIC-USB*2, TOUCH-USB*1, HDMI*1 Speaker: 2*15W
Buttons: Indicator light, Power, Home, Redo, Setting, Vol-, Vol+ Silver /Black Decorative Line Option
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

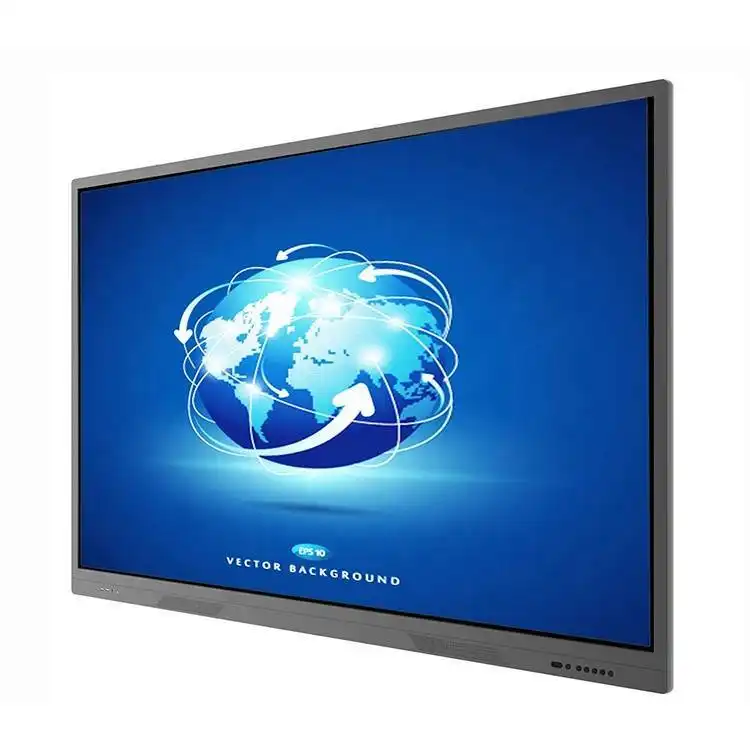

Best sellers wholesale virtuelle touch screen digital interactive flat panel monitor
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Best sellers wholesale virtuelle touch screen digital interactive flat panel monitor
Product Details
Built-in Android 8.0 OS, 3GB RAM 16GB ROM
* The side screen with the shortcut keys for android OS as above, hidden / display option
* Android Whiteboard APP - annotation, writing, erase, multi-screens .... full powerful features
* and the display also has the features of screenshots, spotlight, calculator, countdown, lock, vote, clean, record.
* Full channels setting and free switch
* Compatible with Google Apps, website
UHD display, 4K /3840*2160P screen panel
Infrared 20-touching point, more accurate tracking, smart pens
Anti-glared Glass 4 mm, AG.
Intelligence Gesture Recognization
Full Channels to touch switching
Mirror Screens option - compatible with android Pad and phone, Apple Phone, one touch panel to connect four mobile devices
OPS PC slots - Intel I3/I5/I7, 4GB/8GB RAM, 128GB/256GB option, customized supporting.
Free Whiteboard Software for Windows OS option.
Front Frame of NT Series Touch Screen Display
The NZ series style of Interactive Touch Display with the perfect round corner
It has the customized pen in which the writing color is different for two ends, and one end has the erase feature.
Usually no special requirements, the default interfaces as above picture.
1. Support Display Port 1.2 input 2. HDMI Out for all Channels. 3. Array Microphone 4. Support HDR
5. 2 LAN Ports support function 6. FRONT USB Auto Switch
Specification
The Technical Parameter for Interactive Flat Panel
|
Model#
|
HT-55D NT Series
|
HT-65D NT Series
|
HT-75D NT Series
|
HT-86D NT Series
|
||||
|
Sceen Panel
|
D-LED
|
D-LED
|
D-LED
|
D-LED
|
||||
|
View Area
|
1209.6x680.4
|
1428.48x803.52
|
1649.66 x 927.94
|
1860.48 ×1046.52
|
||||
|
Resolution
|
3840 x 2160
|
3840 x 2160
|
3840 x 2160 (pixels)
|
3840 x 2160
|
||||
|
Brightness
|
350cd/m² nits (typ.)
|
450cd/m² nits (typ.)
|
450cd/m² (typ.)
|
400 cd/m2 nits (typ.)
|
||||
|
Contrast
|
1300:1 (typ.)
|
1300:1 (typ.)
|
1200:1 (typ.)
|
1200:1 (typ.)
|
||||
|
Response
|
6ms (typ.)
|
6ms (typ.)
|
8ms (typ.)
|
8ms (typ.)
|
||||
|
Pixel
|
0.315x0.315mm
|
0.496x0.372mm
|
0.429 x 0.429 mm
|
0.4935 x 0.4935mm
|
||||
|
Visual Angle
|
178 °(H) / 178 °(V)
|
178 °(H) / 178 °(V)
|
178 °(H) / 178 °(V)
|
178 °(H) / 178 °(V)
|
||||
|
Color
|
1.07B (10bit)
|
1.07B (10bit)
|
1.07B (10bit)
|
1.07B (10bit)
|
||||
|
Saturation
|
0.68
|
0.72
|
0.72
|
0.72
|
||||
|
Life
|
30,000 hrs (min.)
|
30,000 hrs (min.)
|
30,000 hrs (typ.)
|
50,000 hrs (min.)
|
||||
|
Lound Speaker
|
15W*2
|
15W*2
|
15W*2
|
15W*2
|
||||
|
Android Solutions
|
||||||||
|
Android
|
Andriod 8.0 OS
|
Andriod 8.0 OS
|
Andriod 8.0 OS
|
Andriod 8.0 OS
|
||||
|
CPU
|
Cortex ARM A73+A53, Quad Core 1.5GHz, GPU: MaliG51
|
|||||||
|
RAM
|
3GB
|
3GB
|
3GB
|
3GB
|
||||
|
Storage
|
16GB
|
16GB
|
16GB
|
16GB
|
||||
|
Input
|
HDMI *2, DP*1, VGA*1, AV*1, YPBPR*1, LAN*2, USB*2, TOUCH-USB*1, PC-AUDIO*1, RS232*1. OPS Slot*1
|
|||||||
|
Output
|
SPDIF OUTx1, AUDIO OUTx1, HDMI OUT*1, AV OUT*1
|
|||||||
|
Front
|
PUBLIC-USB*2, TOUCH-USB*1, HDMI*1
|
|||||||
|
Buttons
|
Indicator light, Power, Home, Redo, Setting, Vol-, Vol+
|
|||||||
|
Touch Technology
|
||||||||
|
Sensor Type
|
Infrared 20-touching point
|
|||||||
|
Surface
|
4mm Toughened Glass, Anti-glared
|
|||||||
|
Resolution
|
32768*32768
|
|||||||
|
Touch Accuracy
|
middle, 90% area +/-1mm
|
|||||||
|
Response Time
|
<=10ms
|
|||||||
|
Minimum Touch Object
|
Single touch ≥1.6mm, Multiple touch ≥3mm
|
|||||||
|
Connect Type
|
USB2.0 Full Speedoard pen)
|
|||||||
|
Voltage
|
DC+5V±5%
|
|||||||
|
Power Consumption
|
≤2W
|
|||||||
|
Compatibl OS
|
Multi-touch points for Windows 10/8/7,Android, Single touch point for Windows XP,Linux,Mac OS
|
|||||||
|
Apps for Andriod
|
||||||||
|
Whiteboard App
|
Annotation, Editing, screenshots, voting, record, lock, calculator, countdown, clear
|
|||||||
|
Mirror Screens
|
Option
|
Option
|
Option
|
Option
|
||||
|
Google App
|
Compatiable
|
Compatiable
|
Compatiable
|
Compatiable
|
||||
|
Power Consumption
|
||||||||
|
Power supply
|
AC 100 V ~ 240 V, 50/60 Hz
|
|||||||
|
Max Comsumption
|
＜140W
|
＜220W
|
<400W
|
<440W
|
||||
|
Stand-by
|
≤0.5W
|
≤0.5W
|
≤0.5W
|
≤0.5W
|
||||
|
Applicaton Environments
|
||||||||
|
Working
|
Temperature: 0℃～40℃
|
|||||||
|
Humidity: 20% ~ 80% RH Non-Condensing.)
|
||||||||
|
Storage
|
Temperature: - 10℃～60℃
|
|||||||
|
Humidity: 10% ~ 80% RH Non-Condensing
|
||||||||
|
The longest working time
|
18 Hours×7 days
|
|||||||
|
Products Constructure
|
||||||||
|
Shell Case
|
Aluminum Frame, Metal backshell
|
|||||||
|
Color
|
Black
|
Black
|
Black
|
Black
|
||||
|
VESA Mount
|
400*400(4-M8)
|
600*400(4-M8)
|
400*400(4-M8)
|
400*400(4-M8)
|
||||
|
Product Dimension (mm)
|
1298.4x93.6x789.1
|
1512x89.15x927
|
1741..7x103.4x1060.2
|
1995.2x111.9x1206.3
|
||||
|
Package Dimension
|
1420x245x910
|
1660x245x1045
|
1880x280x1160
|
2140x280x1340
|
||||
|
N/G Weight
|
37 Kg / 46 Kg
|
43.5Kg / 55Kg
|
59Kg/ 78Kg
|
81 / 102Kg
|
||||
|
Accessory
|
1*Remote Control
|
1*Remote Control
|
1*Remote Control
|
1*Remote Control
|
||||
|
2*Magnetic Touch Pens
|
2*Magnetic Touch Pen
|
2*Magnetic Touch Pen
|
2*Magnetic Touch Pen
|
|||||
|
1*3m Power Cable
|
1*3m Power Cable
|
1*3m Power Cable
|
1*3m Power Cable
|
|||||
|
1*3m USB cable
|
1*3m USB cable
|
1*3m USB cable
|
1*3m USB cable
|
|||||
|
1*Wall Mounted
|
1*Wall Mounted
|
1*Wall Mounted
|
1*Wall Mounted
|
|||||
|
Quality Compliance
|
CE, FCC, ROHS, ISO9001
|
|||||||
Whiteboard Software
Free Whiteboard Software If Needs
Brief Function Description for ITA TOUCH Whiteboard Software
ITA Touch Whiteboard Software has powerful features, and very easy use for user.it can hide all display items, just show
whiteboard floated icon, adjust the main MENU direction, and free change short-cut list to display on right side, or left side.
hide source ... etc.
- Normal features all offered, such as zoom, rotated, annotation, edit, play video, images, all course of tools, background
setting, lines change, 8 kinds of pens ... etc.
- The key features are to
1. Directly drag the images, or content words from website, it is quite convenient for teacher/conference... etc.
2. It has two-screens, and which can transport the content to another screens.
3. Lab tools and all kinds of course pictures.
- Support multi touch points.
- Multi-languages : English, Spanish, Polish, Russian, Arabic, Germany, France ... etc.
- OEM supporting - provide the whiteboard software with client LOGO, or add some features option
whiteboard floated icon, adjust the main MENU direction, and free change short-cut list to display on right side, or left side.
hide source ... etc.
- Normal features all offered, such as zoom, rotated, annotation, edit, play video, images, all course of tools, background
setting, lines change, 8 kinds of pens ... etc.
- The key features are to
1. Directly drag the images, or content words from website, it is quite convenient for teacher/conference... etc.
2. It has two-screens, and which can transport the content to another screens.
3. Lab tools and all kinds of course pictures.
- Support multi touch points.
- Multi-languages : English, Spanish, Polish, Russian, Arabic, Germany, France ... etc.
- OEM supporting - provide the whiteboard software with client LOGO, or add some features option
