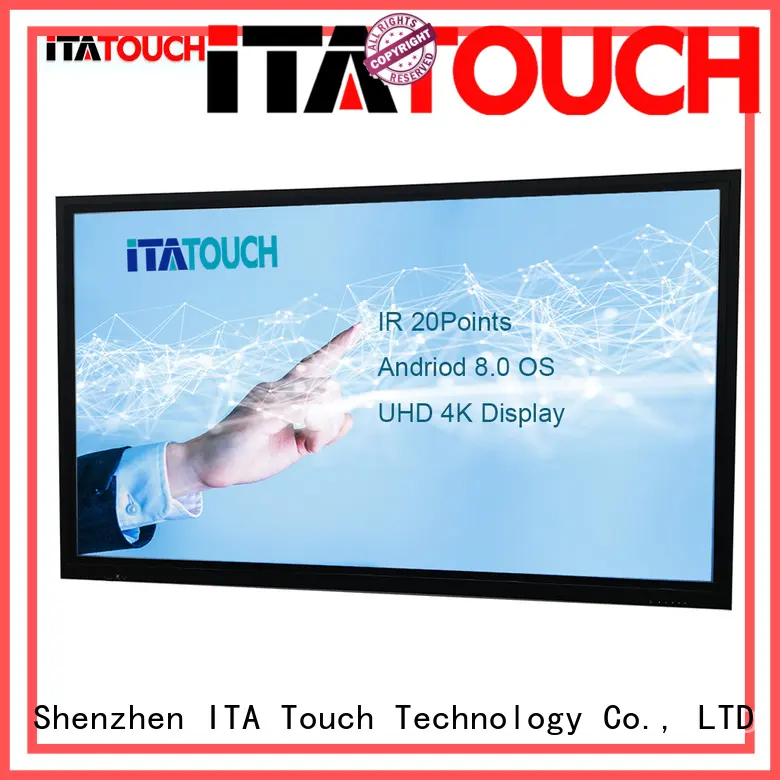

capacitive smart flat panel os for school ITATOUCH

Company Advantages
1. ITATOUCH interactive flat panel display is produced under the vigilance of proficient professionals.
2. The product is made to the highest quality standards available.
3. Its application prospect becomes more and more extensive.
4. The product has become the preferred product in the industry, seeing the great potential of the further application.

This series of interactive touch panel adopt 20-touching points infrared technology, and built-in Android 8.0 OS, it will offer the user more smoothly and good experience touch feeling.

Under android OS, there are APPs of Annotation, Interactive multiple screens, Whiteboard Software, and other apps from Google store, and the user also can download /Un-install the apps per their requirements.

It supports the drawing, writing on video, images, word, excel in all kinds of formats. with the multiple languages, so the user can freely change it.

  This series mainly are used to the education and conference area, such as school and classroom for teaching and learning, office and government for the meeting, hotel for commerce use... etc.

Aluminum alloy frame with Oxidation drawing treatment, the black color of the bezel.

Parameters:

Size		65 inch 4K	75inch 4K	86 inch 4K
Screen panel	View Area	1428.48x803.52	1649.66 x 927.94	1860.48 ×1046.52
	Resolution	3840 x 2160	3840 x 2160 (pixels)	3840 x 2160
	Brightness	450cd/m² nits (typ.)	450cd/m² (typ.)	400 cd/m2 nits (typ.)
	Contrast	1200:1 (typ.)	1200:1 (typ.)	1600:1 (typ.)
	Response	6ms (typ.)	8ms (typ.)	8ms (typ.)
	Pixel	0.496x0.372mm	0.429 x 0.429 mm	0.4935 x 0.4935mm
	Visual Angle	178 °(H) / 178 °(V)	178 °(H) / 178 °(V)	178 °(H) / 178 °(V)
	Color	1.07B (10bit)	1.07B (10bit)	1.07B (10bit)
	Saturation	68%	65%	65%
	Life	30,000 hrs (min.)	30,000 hrs (typ.)	50,000 hrs (min.)
	Lound Speaker	15W*2
Android 8.0 OS	Mainboard	MSD6A848  ARM   A73+A53, Quad Core 1.5GHz, GPU: MaliG51, 2GB /3GB DDR4 16GB flash Nand,   android 8.0 OS
	INPUT	HDMI*3, DP IN *1,VGA   IN*1, TV IN *1, AV IN*1, YPBPR IN *1, LAN *2, Android USB *2, Public USB*2,   Touch-USB*2, PC-Audio IN*1,  RS232   IN*1,
	OUTPUT	HDMI OUT*1, AV OUT   *1,  S/PDIF OUT *1, Audio OUT*1
Touch Screen	Technology	Infrared 20points supports touch by any of opaque   object (such as finger or whiteboard pen)
	Glass	4mm tempered glass，transparency rate＞88%，resolution:   32768×32768，against light interface
	Tec Parameter	response time：10ms，accuracy＜2mm;   power by USB port，Voltage：DC5V±6%,  Power：0.9W
	Compatible OS	Multipoint touch (6-20points) : Windows 7/8   /10
Main Features	Display Features	High accuracy touch screen, support 2mm writing/pen,   and 3mm writing /6pens at the same time.
		Full channels   annotation, Andriod OS with Whiteboard App
		The intelligent floating   menu on side screens
		Dual LAN interfaces,   support android / OPS windows OS, and external PC network
		front auto-USB recognize.
OPS   PC (option)	CPU	Intel i3 / I5 / I7 CPU 1155-pin; Integrated HD   Graphics; built-in HD audio 6(Realtek ALC661)
	Memory	DDR3 1333Mhz 4G/8G    option
	SSD	128GB/256GB SSD
	Wi-Fi	Wi-Fi with Antenna, 802.11 b/g/n
	PC Ports	HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1
Power   Consume	Max	＜140W	≤400W	<170W
	Stand-by	≤1W	≤0.5W	≤1W
Environment	Working	Temperature：0℃～40℃， Humidity：20%～80% non-condensing
	Storage	Temperature：-10℃～60℃， Humidity：10%～90%   non-condensing
Out-looking	Material	Aluminum/Metal plate,  Black /Black color
	VESA Mount	400*400(4-M8)	400*400(4-M8)	600*400(4-M8)
Dimension	Product(mm)	1506.3x96.1x901.3mm	1735.98x103.75x1034.52mm	1989.18x119.7x1180.22mm
	Package	1660x245x1045mm	1880x280x1160mm	2140x280x1340mm
	N/G Weight	43.5Kg / 55Kg	59Kg/ 78Kg	81 / 102Kg
Quality Compliance		ISO14000, ISO9000, CCC, CE, FCC, ROHS
Accessory		Wall mounted *1, Remote Control*1、Power Cable 3m   *1、Touch Pen*2、3m USB*1, 3m HDMI*1

Remark:

 just for reference, the actual parameters will be some difference per different components.

Package: 1pc/carton

Carton box:  Rigid carton materials
