IR 9th generation technology, finger & any objects touch, support 10 users writing, response fast , smoothly
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
Popular out-looking with multi functions and features, which are mainly used for education, school, classroom, conference, meeting, military … etc

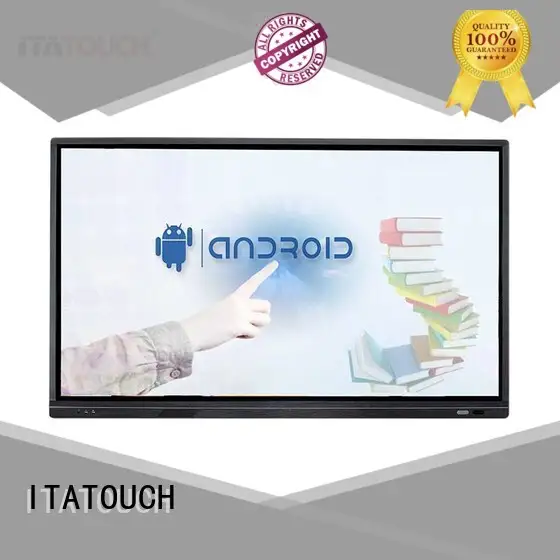

NZ Series Interactive Flat Panel
It is a hotsale style, with infrared multi touch screen 10points, aluminum alloy frame with oxidation drawing treatment, perfect finish and fashion style
Android 5.0 OS with multi language and writing software, Intelligence gesture recognize, smart interactive touch screen for education, conference, office ... etc.
And this structure is modular, each configuration parts (as OPS PC, driver board) are separated so that it is quite convenient for maintenance, repairing and upgrading .User just need open the part which need to be changed, no need to open whole device again.
Welcome to offer some new ideas about the interactive displays, your suggestions would be highly appreciated!
Interactive Touch Panel is usually applied in school classroom for interactive teaching/learning, office/goverment for meeting ,presentation,or conference, hotel/ airport/supermarket for instruction, advertising display, booking,direction ... etc.
ITATOUCH Interactive Touch Panels adopts the 9th generation infrared multi touch technology, high-density infrared light tube integrated PCB, which assures a accurate and smooth touch sensor, offers amazing using experience with multiple touch points.
ITATOUCH NZ Series Interactive Flat Panel with built-in android OS and attachable OPS PC, projector is no longer needed to create an interactive learning / teaching / meeting the environment, which is really easy and convenient.
IR 9th generation technology, finger & any objects touch, support 10 users writing, response fast , smoothly
LED backlight, LG /Samsung / AUO screen panel, A+ Quality, 3840*2160 resolutions
Android 5.0 OS, 4cores CPU, 1GB/2GB RAM, WIFI. option OPS PC Intel I3 / I5 / I7, 4GB/8GB
Intelligence gesture, touch switching all, one key power on/off , eye-protects, kids lock, engery saving ...
AG glass option for interactive panel, real synthetic anti-glared technology for all lifetime
Android OS with interactive transferring software, support multi screens, divided screens, gesture eraser ...
<On the sideback of the interactive flat panel there are more interfaces: USB, HDMI, VGA, RJ45, A/O, RS232 .... WIFI with antenna. OPS PC attachable.
Infrared Multi Touch Screen
Infrared 9th generation technology, finger / any objects touch screen, 4mm tempered glass, high transmittance
Fast response, write/annotate smoothly for teaching and demo presentation.
Support over 10 people write on the screen at the same time, people will enjoy the using experience.
Anti-light interference, anti-shadow, adapt to a variety of environments
Easy maintenance and replacement – equipped with self-checking software in case any problem happens.
Android & Windows OS
Android mainboard built-in, android 5.0 /6.0 OS , quad-core CPU, 1GB/2GB DDR3/DDR4 RAM, it also could smoothly sue the touch screen even if there is no computer connecting, including access to the internet, edit, annotate, upload /save files … etc which offer non-worried application environments.
Android OS with multi-languages, include English, Spanish, Russian, Polish, Germany, Turkey, Arabic …
OPS SLOTs for OPS PC attachable
User could select the OPS PC configuration, including Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU chipset: H61 /H81 /H110.
4K Screen Panel
The screen panel will be LCD LED backlight, 4K / 2160P display, which offers the presentation with real and vivid images and words, giving a deep impressive teaching/conference.
Intelligence gesture recognize
Based on your gesture,you can control the touch display, include J Zoom in / out, Rotate, Erase, Multi Tasks Witching, Write …for easy teaching and presentation.
Full touch to switch the channels
Touch the bottom to pull up, there well be the menu channels, including TV System, Android, OPS PC, HDMI 1/2/3, Sources, Display, then user could select the channels accordingly, including adjust the screen parameters.
Anti-Glared Glass
If user need the anti-reflective device, then the tempered glass will be handled with special technology, so please bring out when you order.
Round Corner, anti-scratch screen
Module design with LED backlight screen panel, the device is thin and narrow, include the touch panel – tempered glass.
The stylish appearance with metal drawing, die-modular polishing,

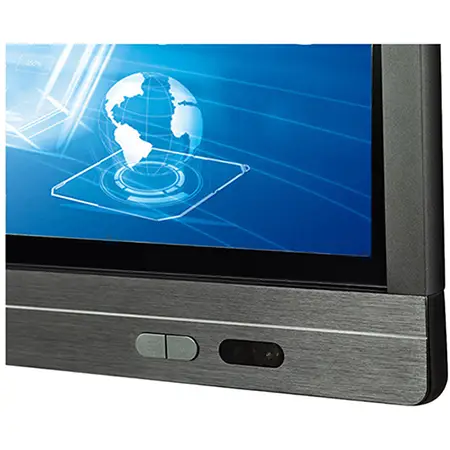

Front buttons & Interfaces
On front bottom with the buttons – Power on / off, Interfaces: USB-Touch, USB-TV, HDMI
Size | 55 inch 4K | 65 inch 4K | 75inch 4K | 86 inch 4K | |
Screen panel | View Area | 1209.6x680.4 | 1428.48x803.52 | 1649.66 x 927.94 | 1860.48 ×1046.52 |
Resolution | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 (pixels) | 3840 x 2160 | |
Brightness | 350cd/m² nits (typ.) | 450cd/m² nits (typ.) | 450cd/m² (typ.) | 400 cd/m2 nits (typ.) | |
Contrast | 1200:1 (typ.) | 1200:1 (typ.) | 1200:1 (typ.) | 1600:1 (typ.) | |
Response | 6ms (typ.) | 6ms (typ.) | 8ms (typ.) | 8ms (typ.) | |
Pixel | 0.315x0.315mm | 0.496x0.372mm | 0.429 x 0.429 mm | 0.4935 x 0.4935mm | |
Visual Angle | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | |
Color | 1.07B (10bit) | 1.07B (10bit) | 1.07B (10bit) | 1.07B (10bit) | |
Saturation | 65% | 72% | 72% | 72% | |
Life | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (typ.) | 50,000 hrs (min.) | |
Lound Speaker | 8W*2 | ||||
Solutions | Andriod 4.4 OS | Cortex A53, Dual Core 1.5GHz, 1GB DDR3 8GB flash Nand, andriod 4.4OS | |||
interfaces: HDMI*2, LAN*1, TV*1, VGA*1, PC-AUDIO*1, Y Pb Pr*1, AV*1, DP*1, Media-USB2.0*1, Touch-USB*1, PC-USB*2, MIC*1, RS232*1; S/PDIF*1 out, Earphone out*1 | |||||
Andriod 5.0 OS | Cortex A53, Quad Core 1.4GHz, GPU: Mali-450, 2GB DDR3 8GB flash Nand, andriod5.0 OS | ||||
interfaces: HDMI*2, LAN*1, TV*1, VGA*1, PC-AUDIO*1, Y Pb Pr*1, AV*1, DP*1, Media-USB2.0*1, Media-USB3.0*2, Touch-USB*1, PC-USB*2, MIC*1, RS232*1; S/PDIF*1 out, Earphone out*1 | |||||
Other Function | supports High Definition display, true color OSD, humanized operation interface , Android 4.2.2 OS | ||||
Touch Screen | Technology | Infrared multi touch- 10points, supports touch by any opaque object (such as finger or whiteboard pen) | |||
Glass | 4mm tempered glass,transparency rate>88%,resolution: 32768×32768,against light interface | ||||
Tec Parameter | response time:15ms,accuracy<2mm; power by USB port,Voltage:DC5V±6%, Power:0.9W | ||||
Compatibl OS | Multi point touch (6-10points) : Windows 7/8 /10 | ||||
Built-in PC (option) | CPU | Intel i3 / I5 / I7 CPU 1155-pin; Integrated HD Graphics; built-in HD audio 6(Realtek ALC661) | |||
Memory | DDR3 1333Mhz 4G/8G option | ||||
HDD | SATA 500GB /1TB option; or 128GB/256GB SSD | ||||
Wi-Fi | Wi-Fi with Antenna, 802.11 b/g/n | ||||
PC Ports | HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1 | ||||
Power Consume | Max | <140W | <170W | <400W | <440W |
Stand-by | ≤1W | ≤1W | ≤1W | ≤1W | |
Environment | Working | Temperature:0℃~40℃, Humidity:20%~80% non-condensing | |||
Storage | Temperature:-10℃~60℃, Humidity:10%~90% non-condensing | ||||
Out-looking | Material | Front case-metal; backside: plastic, color: black | |||
VESA Mount | 400*400(4-M8) | 600*400(4-M8) | 400*400(4-M8) | 600*400(4-M8) | |
Dimension | Product(mm) | 1299.9x103.5x810.8 | 1518.3x113.8x934.3 | 1744.61x110.7x1063.16 | 1997.9x114.5x1208.9 |
Package | 1532x252x967 | 1660x245x1045 | 1880x280x1160 | 2140x280x1340 | |
N/G Weight | 39 Kg / 48 Kg | 53.5Kg / 64Kg | 66Kg/ 82Kg | 143.5 / 174..5Kg | |
Quality Compliance | ISO14000, ISO9000, CCC, CE, FCC, ROHS | ||||
Accessory | Remote Control*1、Power Cable*1、Touch Pen*2、Certificate*1、User Guide*1、Warranty Card*1 |
The package will be settled by wooden case or pallet to ensure shipment safety,. ITATOUCH always keeps communication with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Q: Which accessories would be included for the package of this interactive touch panel?
R: the package accessories as below,
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does ITATOUCH provide the OS for the interactive touch screen with OPS PC ?
R: Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needs, since we are the hardware interactive touch screen manufacturer.
Q: Is there extra whiteboard software for this interactive panel?
R: Yes, ITATOUCH could offer the whiteboard software if need, or User could download it from website.
