A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years

display touch screen video wall network outdoor ITATOUCH company 1
display touch screen video wall network outdoor ITATOUCH company 2
display touch screen video wall network outdoor ITATOUCH company 3
display touch screen video wall network outdoor ITATOUCH company 4
display touch screen video wall network outdoor ITATOUCH company 5
display touch screen video wall network outdoor ITATOUCH company 6
display touch screen video wall network outdoor ITATOUCH company 7
display touch screen video wall network outdoor ITATOUCH company 8
display touch screen video wall network outdoor ITATOUCH company 1
display touch screen video wall network outdoor ITATOUCH company 2
display touch screen video wall network outdoor ITATOUCH company 3
display touch screen video wall network outdoor ITATOUCH company 4
display touch screen video wall network outdoor ITATOUCH company 5
display touch screen video wall network outdoor ITATOUCH company 6
display touch screen video wall network outdoor ITATOUCH company 7
display touch screen video wall network outdoor ITATOUCH company 8

display touch screen video wall network outdoor ITATOUCH company

Model#:
HT-88 W02
Touch Screen:
Infrared Multi Touch 10point
Android OS:
Compatible with Android & Windows OS
Windows OS:
Intel I3 /I5 /I7, 4GB/8GB
Main Interfaces:
USB, HDMI, VGA, RS232
Min. Order Qty:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Supply Ability:
5000piece per month
Sea Port:
Shenzhen, China
Shipment Mode:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Size Range:
89", 96", 120"
Inquiry
Product Details
In the production, ITATouch believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Under the guidance of market, ITATouch constantly strives for innovation. interactive touch screen has reliable quality, stable performance, good design, and great practicality.
  • ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard
Company Advantages
1. It is video wall flat panel display that contributes to the uniqueness of our touch screen video wall. One touch gives you convenience
2. Ita Touch: Offer the Best Intelligent Products. electrical display stand,video wall with touch screen provides high reliability and superior performance at a low cost.
3. smart interactive whiteboard is well equipped with excellent properties such as free standing interactive whiteboard.
4. Interactive products, Efficient communication. it is widely known that our products has gained a lot of qualified certifications which earned many trust from companions.



Products Details


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard
The device is embedded in The Computer, Amplifier, Control System, Visualizer, Microphone and Interactive Whiteboard

So this electonic whiteboard called “ All In One whiteboard ”, User has only one piece of this board + Projector, then it could present a high-quality conference / teaching ,Etc.
The All In One Interactive Whiteboard offers high-effective solutions, people do not worry the connections again, it is getting so simple to finish the speech / teaching, also save the room, to bring a comfortable and convenient environment.

This digital whiteboard is infrared multi touch technology, finger touch board to control what you wanna. The conponents include below,


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-1

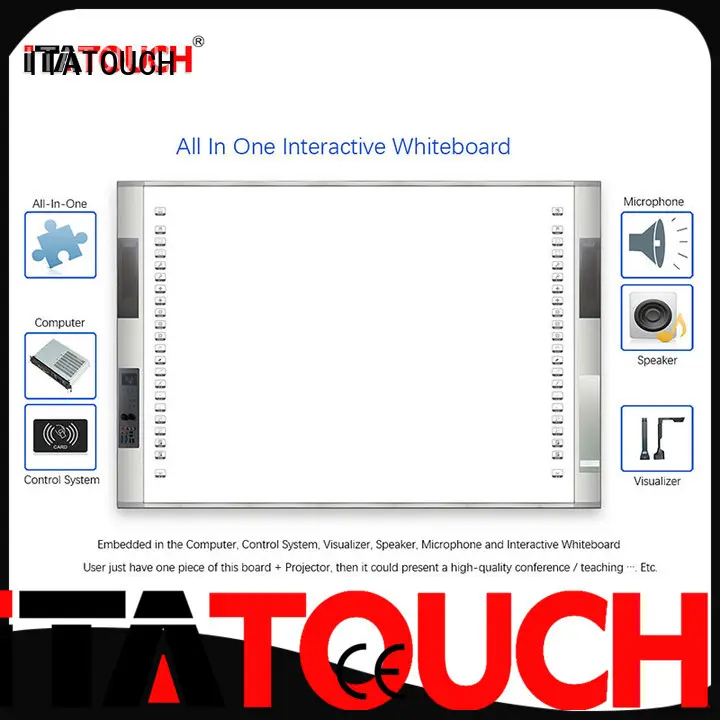

All IN One Interactive Whiteboard


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-2


Embedded in the Computer, Control System, Visualizer,Speaker.Microphone and Interactive Whiteboard
User just have one piece of this board*projector,then it could present a high-quality conference/teaching...,Etc.



Visualizer Details


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-3



Details of the Control Panel


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-4



The Materials of the Board

The board materials will be constructed by three parts: Surface, Wick and Back, see below picture.,


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-5



Customer can choose the board materials per below

Surface Material:
Option A:  Cold rolled steel surface, anti-damage, Nano surface.
Option B:  Cold rolled steel surface, anti-damage, ceramic surface, hardness 7H. Dry-Ease, support marker pen.

Wick Material:

Back:  Galvanized Steel Sheet


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-6

Option A

High density polyfoam

ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-7

Option B

Honeycomb Aluminum


SPECIFICATION


Product Size

79"

86"

Touch Technology

 Infrared Touch

Infrared Touch

Projection Size

1126*1501MM (73.9"

1220*1627MM(80.1")

Active Size

 1140*1643MM(78.8")

1234*1797MM(85.9")

Inner Size

 1140*1651MM(79.0")

1234*1805MM(86.1")

Total Area Size

1186*1884*60MM(87.6")

 1280*2038*60MM(94.7")

Input Ports

HDMI*2, VGA*2, Audio*2, MIC*1,    USB*1, Touch USB*1, AV*1, OPS Slot*1

Output Ports

HDMI*1, VGA*1, RS232*1, AV*1

Others

RFID Card x1,       Speaker Volume Control Knob x1

Microphone Volume Control Knob x1

Press-Button and Indicator Light    x9,         Buzzer x1

Speaker 10W x2

Speaker 15W x2

Power Amplifier 20W

 Power Amplifier 30W

Visualizer

5 million pixels / 8 million    pixels option

OPS Mini Computer

Intel I3/I5, 4G RAM, 500G HDD,    WIFI

Input Voltage

AC(90~240)V-50/60HZ

Power Supply

Standby Power:<1W, Rated Power:<190W

Working Temperature

0°C~40°C

Touch Input

 4,6, 10 or more option

Responding Time

<15ms,  continuous <8ms;  Cursor Speed: 108 dot/second;  object Size: ≥Φ8mm

Touch Port

USB 2.0 / USB 3.0

Touch Lifetime

600 minions at same position

Accessories

1.8M Power Cable x1, 1.8M VGA    Cable x1, 5M USB Cable x1, Touch Pens x3,


Pointer x1, Software CD x1 Wall    mounted Accessories x 1 set



APPLICATION CASE


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-8



Package


The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.


ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-9

The Accessories Box:

1* USB Cable
3* Touch Pens

1* Wall Mounted

1* Pointer

1* Eraser

1*  Whiteboard Software CD


Small box of the accessories package to be packed into the whiteboard carton

ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-10



The Interactive Boards will be packed by double cartons, and fold the foam to ensure safety.

ITATOUCH-Document Camera For Classroom Infrared All In One Interactive Whiteboard-11



Package with stripe belt, and settle the wooden pallet if needs . (Container Loading)


FAQ


Q: Which accessories would be included for the package of this interactive boards?

R:  the package accessories as below,

1* USB Cable
3* Touch Pens

1* Wall Mounted

1* Pointer

1* Eraser

1*  Whiteboard Software CD





Q: What is the Lead-time?

R: Leadtime: within 15 days for 20' GP/40HQ Contatiner Qty




Q: How long time is for the warranty?

R: Three years .




Q: How to order it?

R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
