43inch Table Stand Capacitive Multi Touch Screen Panel Lcd Display Interactive Kiosk
Inquiry: info@itatouch.com Wechat: +86 13582949978
The PCAP / capacitive multi touch screen technology has been applied into the commerce display and advertising information, more and more the industrial areas adopt this technology, since it can be done a sleek design and the good feel touching for user.
ITATOCUH factory manufacture the interactive digital kiosk with PCAP touch screen 10~20 touching points , several kinds of the table stands option, which widely use to hotel, station, school, office conference ... etc.
Usually the default configuration for the PCAP capacitive touch screen with android OS, 2GB RAM, 4GB/8GB flash nandi
( customized service : customer can select the android board with various RAM and Storage for the touch display)
Built-in Computer / OPS PC option, as I3, I5, I7
ITATOUCH PCAP interactive lcd digital signage display adopt LED back light screen panel with FHD 1080P resolution, usually the wall mount default configuration is android LAN network version.
The materials of the case are aluminum frame with drawing painted treatment and metal backside with painted color, and the clean finish.
CUSTOMIZED & OEM supporting!* Usually PCAP 10points touch screen (20points option) , finger touch to get what you wanna.
* 4mm tempered glass, anti-glared / reflective glass option
* The default configuration: Built-in Android boards, 2GB RAM, 4GB Flash nandi
* The interfaces on the backside, HDMI in, USB, VGA
* Support full image and video format files for the player
* Standard equipment: wall mounted, power cable
* Table stand option, built-in camera also - need to be customized.

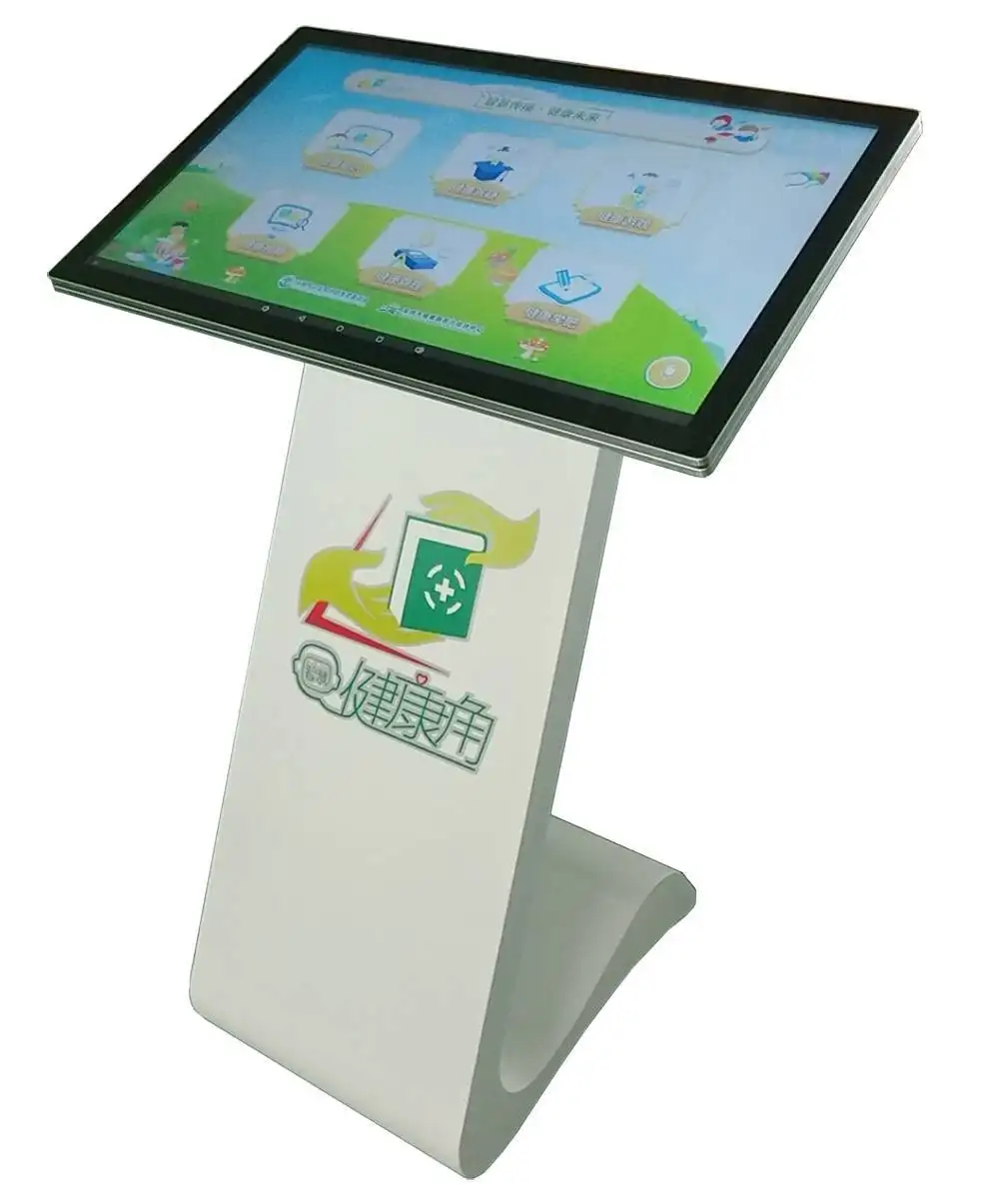

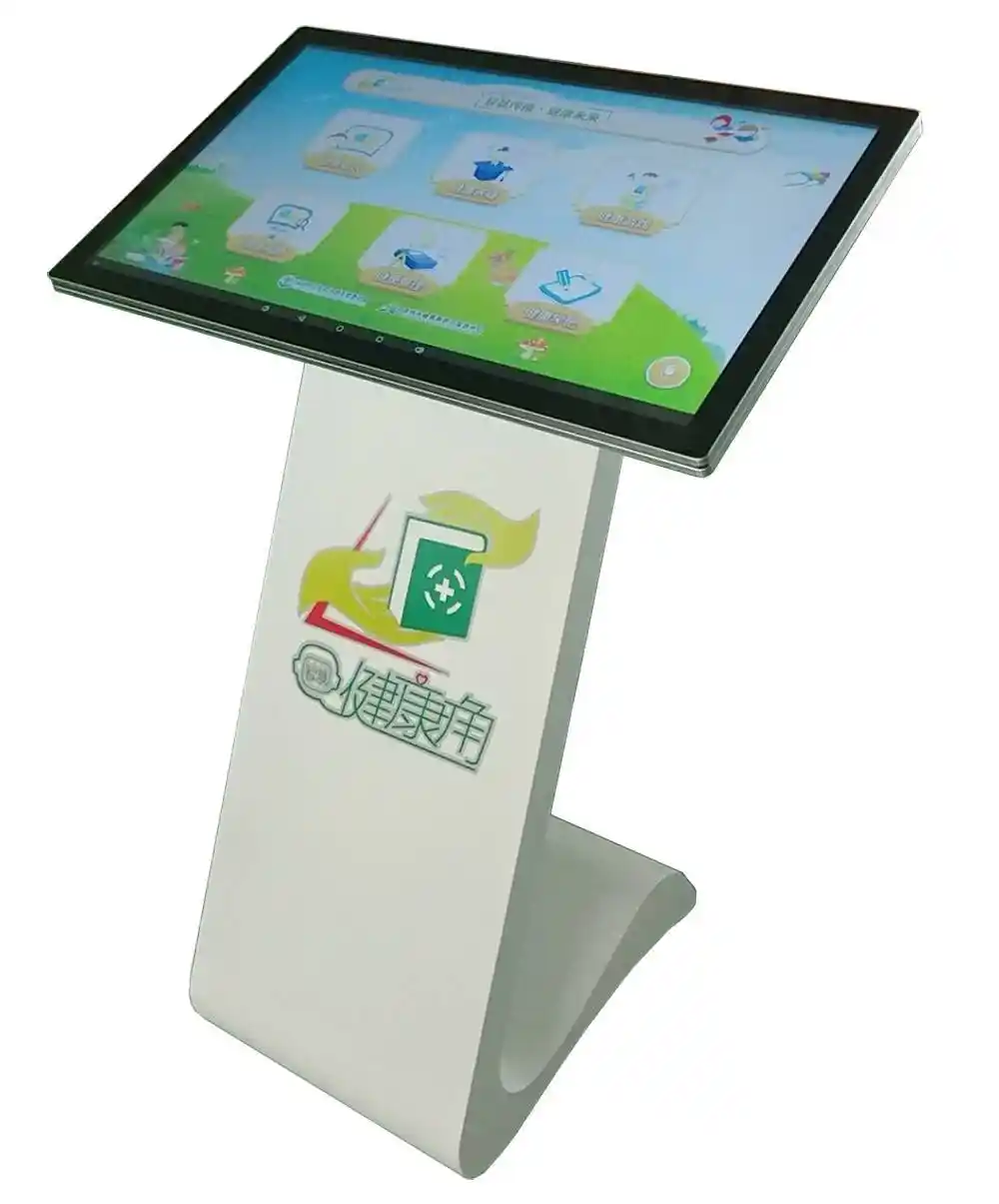

With table stand to be an Interactive Multi Touch Inquiry /Conference Table -
Below list three kinds of table stand - which can be adjustable from 0 ~45degree , clients can select the stand per the actual requirements, other touch screen table stand option
The detailed picture of the LCD touch screen digital display
It is quite sleek design, and super slim, round corner, sliver color side frame, black painting
Hardware
Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shapeScreen panel : High definition display with printing
ITA TOUCH manufacturer adopt A+ quality screen panel for the touch screen unit
Factory LCD Multi Touch Screen Production Line
ITA TOUCH factory area 3500 square meters, own enough capacity for your touch screen order, welcome to joint us to expand more markets.
The Customized Clarification:
ITATOUCH company support the customized products, user just offer below items to talk with sales,
The change / customized include the following1. Out-looking & Colorful
2. Configurations different: android OS (default equipment), PC built-in, touchscreen monitor only
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 50pcs)
5. Built-in printer, card reader ... etc.
The size range of the wall mounted interactive commerce digital display : 32”, 43“, 49"/50", 55", 65"
We are always here, welcome to inquiry! Info@itatouch.com; Wechat: +86 13582949978
The Technical Parameter for Multi touch screen panel display
Size | 21.5" | 32" | 43" | 50" | 55" | 65" |
Sceen panel | LCD LED backlight | | | | | |
View Area | 476.64*268.11mm | 698.4x392.85mm | 914.184x529.416mm | 1073.78x604mm | 1209.6x680.4mm | 1428.48x803.52mm |
Resolutions | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Contrast | 1000:1 | 3000:1 | 1200:01:00 | 4000:1 | 4000:1 | 4000:1 |
Brightness | 250cd/㎡ | 320 cd/㎡ | 300 cd/㎡ | 300 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ |
Response time | 8ms | 6.5ms | 8ms | 8ms | 8ms | 6.5ms |
Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
Lifetime | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) |
Speaker | 5W*2 | 10W*2 | 10W*2 | 10W*2 | 8Ω5W | 10W*2 |
Glass | 4mm tempmered glass | | | | | |
Technology | Capacitive 10point touch. Free driver, finger touch | | | | | |
Mainboard | Andriod OS, RK3288, 4cores ARM-A17 CPU，1.8GHz, Mali-T764 GPU, DDR 2G, Storage : EMMC 8G, WIFI | | | | | |
Mainboard | H61 / H81 Chipset | | | | | |
CPU | InteCorei7/i5/i3/G2030/Celeron CPU 1150-pin | | | | | |
RAM | DDR3 1333Mhz 4G/8 | | | | | |
Storage | SATA500G；SSD60G/120G | | | | | |
WiFi | yes, with antenna | | | | | |
OS | Compatiable with WINDOWS 7/8, 10.. Etc | | | | | |
I/O | AC*1, HDMI*1, VGA*1, USB2.0*2, USB3.0*2, RJ45*1, PC AUDIO *1, MIC*2 (some Difference per the differenct mainboard ) | | | | | |
Button | Power on/off, Light lamp | | | | | |
Power | AC100 V ~ 240 V, 50-60 Hz | | | | | |
Working Power | AC100 V ~ 240 V, 50-60 Hz | | | | | |
Consumption | ≤60W | ≤80W | ≤100W | ≤120W | ≤120W | ≤150W |
Standby | ≤1W | ≤1W | ≤1W | ≤1W | ≤1W | ≤1W |
Temperature | Working: -20℃~60℃, Storage:-40℃~85℃ | | | | | |
Humidity | Working: 10%~90%RH, Storage: 10%~95%RH | | | | | |
Max working time | 18 hours /day | | | | | |
Case | Aluminum alloy frame with paint sliver | | | | | |
Installation | Wall mounted | | | | | |
Products | 532.6x336.6x62.2 | 762x460x67.6mm | 1020x608x75.1mm | 1158x689x76.8mm | 1296x767x74.5mm | 1517x892x79.3mm |
Packages | | | | | | |
Weight | N/W 7.2KG | N/W 18KG | N/W 20KG | N/W: 25KG | N/W: 26KG | N/W: 38KG |
Accessories | Power cable, wall mounts, user manal | | | | | |
Remark: just for reference, the actual parameters will be some difference per different components
Configuration of Android boards:
1. Rk3288 Quad Core Cortex-A17, frequency up to 1.8GB, memory 2GB, flash Storage: 8GB
2. Rk3399 Double Cortex-A72 + four cortex-A53, frequency up to 2.0 GHz, memory 2GB, flash storage: 8GB
Carton Package
Usually the multi touch display will be packed into the rigid carton box with foam and bag, and also sealed a plastic film to avoid the rain weather
Wooden Case for Air shipment
Air / Express shipment, ITA Touch company will require the forwarder settle the wooden case to ensure the transaction safety.
Wooden Pallet for Sea Shipment
Sea or Air shipment for bulks goods, ITA Touch will settle the wooden pallet with poly film to ensure safety and avoid humility during long time ship.
Support OEM / Customized Products
* LOGO display on the device
* Support small order with customized design for Touch Table, information Kiosk Display..etc.
* Special configurations and features customized.
7*24hours on-line pre-sales & after-sales service
* ITA TOUCH people always here, provide quick response anytime & anywhere.
* Offer the whole sets of the solutions with patient & detailed clarification according to client various requirements.
* Quick and fully tracking delivery, feedback follow-up, Technical support, maintenance & replacement instructions, worry-free service.
100% inspection to ensure the quality guarantee
* ITA TOUCH factory seriously comply with international quality standard, such as the CE, FCC, ROHS, BIS, CB.
* The Audit from the initial infrared PCB starting, LCD screen panel inspection, product assembling test, high-temperature baking auditing, all interfaces, and features trial, every process will be done 100% testing.
Clients Visiting
Every year many clients from wide world markets visit us. ITA TOUCH factory warmly welcomes you in Shenzhen, China.
Call: +86 13582949978
Mail: info@itatouch.com
The customers visited our production lines- Interactive touch display, digital signage 3D hologram fan .. etc, and took some pictures.
The Global World Buyers Witness With You!
ITA TOUCH Factory Production Lines
ITA Factory manufacture the interactive flat panel, interactive board, digital signage totem display, touch kiosk, 3D Holographic Fan Display ... etc
Shenzhen ITA Touch Technology Co., Ltd. focus on the interactive high-tech products- Interactive Touchscreen, Commerce Digital Display, interactive whiteboard, Interactive Table, Digital Kiosk Totem, Graphic Tablet, 3D hologram Fan … etc. With the setting up of the scientific management system in production, sales, technical supporting, and service organization, ITA’s products passed the ISO, CE, FCC, ROHS BIS certification.
ITA Touch own the R&D team with over a dozen of employees, who are masters or higher, and a large-scale plant with automatically production lines. OEM /ODM & Customized products offering with high quality and moderate cost, which have been appreciated from over 30 countries and regions in the world.
ITA Touch people are full of confidence and earnestly hope to have your joint to enlarge our business, establish the health and long business relationship in the near feature. Please feel free contact us for any order discussion!
The product is widely used at various industry sectors for various purposes. Ita Touch provides a series of products for interactive teaching/learning classroom and conference.
The product has passed all relative quality certificates. Ita Touch provides a series of products for interactive teaching/learning classroom and conference.
Inaugurated in the year 2009, Shenzhen ITA Touch Technology Co., LTD is considered amongst the prominent manufacturer of Interactive Table. Our offered products include Interactive Table. Our range is extensively appreciated for its features like excellent performance, high efficiency, low maintenance and high yield. We are actively engaged in providing all essential mobile and computer components on the large market scale. We have successfully embellished our quality and technology with increasing market requirements. Owing to these factors we have been able to garner a huge customer base. We are committed to offering such products which incorporate the latest technology and offer effortless user-experience to the consumers at an affordable price point. The modern and sound infrastructural facility we have established is the pillar of strength for our organization. Comprising of the various sub-functional department like manufacturing, engineering, quality management, research & development, sales & marketing our infrastructure sprawls over a large geographical area and equipped with all the required amenities. All these departments are managed by our highly experienced professionals that maintain proper coordination among them to ensure the organized and hassle-free functioning of entire business operation. The entire range is subjected to rigorous quality checking procedures so that our clients get the finest products from us. The raw material we use to fabricate this range is procured from the reliable and certified vendors of the market.
