Products Description

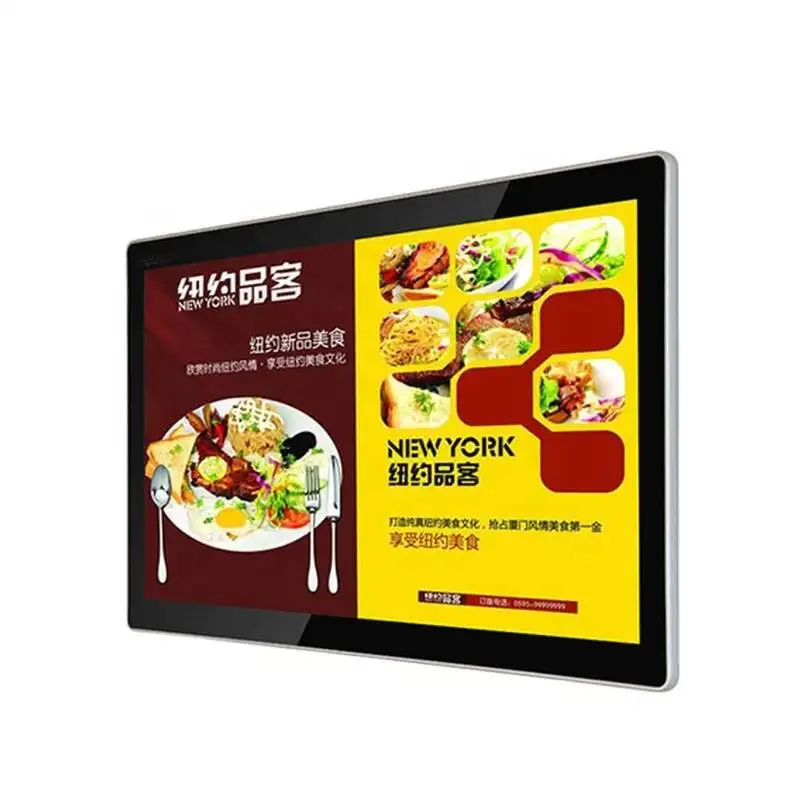

ITATOUCH LCD digital signage adopt LED back light screen panel with FHD 1080P resolution, usually the wall mount default configuration is android LAN network version.
The materials of the case are aluminum frame with drawing painted treatment and metal backside with painted color, perfect finish.
Interactive touch screen option – infrared multi touch or capacitive touch, finger or any objects touching.
CUSTOMIZED & OEM supporting!* 1080P Full HD Panel Display
* Support LAN management control, directly issue any by sever computer.
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying screens.
* Security Design, industrial main board, and 4mm tempered glass
* Support full media format files
Hardware & SoftwareHardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
Net-working management software
Each terminal/unit installed, the managment software to be installed computer sever if needs.
The following dimension of the sketch is for 21.5 inches floor stand display
other sizes option - 15.6", 19", 32", 43", 50", 55", 65", 75"
Customized Clarification:
a series of dimensions for various sizes, when the shape and configurations of the free standing digital signage are different, it will be a little change measurements.
The change / customized include the following1. Out-looking & Colorful
2. Configurations different: android LAN (default equipment), PC built-in, touch monitor only
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera (MOQ: 50pcs)
5. Built-in printer, card reader ... etc.
The wall mounted indoor display production lines: 15.6", 19”， 21.5“， 24”， 27“， 32”， 43“ ....
Manufacturing Technique
The Technical Parameter for Advertising Display
Remark: just for reference, the actual parameters will be some difference per different components
Display Size | 21.5" | 32" | 43" | 49" | 55" |
Product Dimension | 524.9*320.9*47.1 | 779*475*61.6 | 1010*603*75.8 | 1150.5*682*77.2 | 1289*760*81.6 |
Active area | 476.8*268,3. | 696*392 | 943.2.4*531 | 1077*607.5 | 1209*680 |
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Contrast Ratio | 1000:1 | 1400:1 | 1400:1 | 3000:1 | 4000:1 |
Brightness | 300cd/m² | 360 cd/m² | 360 cd/m² | 380 cd/m² | 380cd/m² |
Response time | 5 ms | 6ms | 6ms | 6.5ms | 5.5ms |
Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
Viewing angle | 178° | 178° | 178° | 178° | 178° |
Stereo speaker | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W, 8Ω | 10W,8Ω |
Android Solutions | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2, RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | | | | |
| HDMI×1,VGA×1,USB2.0×2,RJ45×1,AUDIO×1，WIFI×1 | | | | |
PC Solutions Option | X86 mainboard (PC built-in), Interfaces: USB2.0*1; RJ45*1, Option: SD*1 | | | | |
| PC option: Chipset InterlHM76/ H81/H110, Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi Interfaces: USB*4；HDMI*1, DVI*1,
VGA*1, RJ45*1,RS232*1, MIC*1 | | | | |
Management Software | the default : advertising publishing software for android solutions (including console and playback terminal) LAN Network:
computer server + unit terminal | | | | |
| support all forms of Video & Audio files. Support loop, timing, insert and other playback modes, multipe screens, subtitles … | | | | |
Touchscreen Option | Optional, Infrared / projected capacitive multi touch points, Finger touch, gloved hand, or any opaque objects | | | | |
Shell | Color and shape to be customized - the default : Aluminum frame, metal case backside.4mm Tempered Glass | | | | |
Work environment | Temperature: working 0℃～40℃, Storage: -20℃～55℃ ; Humidity: 10%～90% RH Non-Condensing, Storage: 20%～80% RH Non-Condensing | | | | |
| The day longest time : 7/24 (days/hours) | | | | |
Power | AC 100-240V 50/60HZ; Stand by ≤1W | | | | |
| ≤40W | ≤60W | ≤100W | ≤130W | ≤130W |
Quality appliance | CE, FCC, ROHS, ISO9001, ISO14000 | | | | |
Accessories | CD, Remote Control, Power Cable 1.8m, User Manual | | | | |
Product packaging
Carton Package
Usually the interactive touch display will be packed into the rigid carton box with foam and bag, and also sealed a plastic film to avoid the rain weather
Wooden Case for Air shipment
Air / Express shipment, ITA Touch company will require the forwarder settle the wooden case to ensure the transaction safety.
Wooden Pallet for Sea Shipment
Sea or Air shipment for bulks goods, ITA Touch will settle the wooden pallet with poly film to ensure safety and avoid humility during long time ship.
