ITATOUCH Best android digital signage factory for office
1. ITATOUCH best vertical monitor is carefully manufactured after the design is confirmed. The cutting machine will make it standard according to the data of the design structure and the design diagram.
2. android digital signage is widely applied in the field for its properties as best vertical monitor .
3. People cherish and love it the most because it's not like a lot of commercialism and immense amounts of gifts they can simply purchase and hand over.
Make choices as you need！
ITATOUCH offers two types of indoor digital signage:
floor standing one & wall mounting one, with diversified sizes: 19", 21.5", 32", 43", 46", 50", 55", 65", 75", 86".
All signage displays were equipped with tempered glass and aluminium frame with covered finish that had been painted and sanded.
More choices for your needs:
Touch screen option,
Three kinds of version options - a. U disk inserted to display ; b. android lan networking. c. built-in PC intel I3/ i5 ...
Management software in English offered freely.
* 1080P Full HD Display
* Support LAN management of documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Adjustable Displaying Modes: horizontal, vertical, full or split screen displaying
* Super slim, security design, industrial mainboard, and tempered glass
* Support full media player format files.
* Metal-drawing with painted color
The configuration of this digital display :
Android LAN networking : android 4.4OS, 1GB /2GB RAM
Built-in PC: Intel I3 / I5 /i7, 4GB/8GB RAM, 120G/240G SSD, WIFI.
Card Reader Version: SD card insert to play.
Interactive Touch Screen - Infrared / Capacitive Technology, 10-point touch.
Remote Control Management System: Edit and publish the documents, pictures, videos by remote internet working server.
USB2.0*2
SD Card Reader *1
LAN RJ45*1
WiFi*1
VGA*1 (option)
Power on/off
Customized Supporting:
The appearance, color and finish of the kiosks are customizable.
Optional built-in hardwares, such as: IC card reader, mini-printer .. Etc.
(MOQ: 10pcs)
Dimensions:
| Screen Panel | |||||
| Size | 32" (Customized) | 42" | 50" | 55" | 65" |
| Panel Brand | LED backlight, TFT screen panel | ||||
| Display Area (mm) | 930.2*523.2 | 1039.68*584.82 | 1209.6*680.4 | 1428.42*803.52 | |
| Resolution | 1366*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness (typ/min) | 350cd/m2 | 360cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
| Contrast (typ) | 4000:01:00 | 4000:01:00 | 1400:01:00 | 1400:01:00 | 4000:01:00 |
| Response Time | 8ms (typ) | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
| Pixel Pitch | 0.51075*0.17025 | 0.4845*0.4845 | 0.5415*0.5415 | 0.630*0.630 | 0.802*0.802 |
| Visual Angle | R/L 160° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Life (typ) | 3000hrs (min) | 3000hrs (min) | 5000hrs (min) | 3000hrs (min) | 3000hrs (min) |
| Color Saturation (*% NTSC) | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 |
| Colorful | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 16.7M |
| Stereo speaker | 5W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android LAN Work Solutions | |||||
| mainboard | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2 | ||||
| Internet | RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||
| Input | USB2.0*2, TF*1, RJ45*1, DC12V*1 | ||||
| Output | HDMI*1, MINI AV*1 | ||||
| Features | Support all the usual audio formats | ||||
| Support music library, tag search, online streaming media | |||||
| Video | 3D 1080P; Video Decode AVI(h.264,DIVX,XVID,RM,RMVB,MKV,WMV,MOV,MP4,MPEG | ||||
| Flash | Support Adobe Flash V11.1 or Later | ||||
| Picture | Support JPEG,GIF,PNG,BMP files; Picture rotating, zooming out, support painting,(Gallery) | ||||
| others | Google Brower, Google APP, Market/APP Store download APK and games Google Map, Email | ||||
| Calculator, Calendar, files manager; Office documents (TXT,PDF, Office Doc/Xls/PPT editor) | |||||
| Support flash subtitle, Log management, time on/off, | |||||
| Normal LAN built-in PC Solutions | |||||
| Mainboard | Sigma 8635 mainboard ( LAN system) ; X86 mainboard ( built-in PC) | ||||
| Memory | SD card - 4GB option (can be expanded to 32GB) | ||||
| Network | IEEE802.3 10/100M Ethernet LAN | ||||
| Input | USB2.0*1; RJ45*1 | ||||
| Option | CF *1; SD *1 | ||||
| Audio | Support full format file(1080P) | ||||
| Video | support MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB | ||||
| picture | Support JPEG,GIF,PNG,BMP files | ||||
| others | Security design; multi-display modes; | ||||
| Support flash subtitle, Log management, time on/off, display instand messaging | |||||
| Built-in PC (option) | |||||
| PC | Intel J1900/ I3 /I5 CPU, 4G memory, 500G HDD Wi-Fi with Antenna (option) | ||||
| Interfaces | Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Touch Screen Option | |||||
| Touch Screen | Optional, Infrared multi touch points, Finger touch, gloved hand, or any opaque objects | ||||
| Other Features | |||||
| Case | Metal backside case, Aluminum Frame, 4mm Tempered Glass | ||||
| Work | Temperature: 0℃～40℃: Humidity:10%～90% | ||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| Consume | ≤30W | ≤60W | ≤100W | ≤130W | ≤130W |
| Quality appliance | CE, FCC, ROHS | ||||
| Accessories | CD, remote control, cables, user instruction | ||||

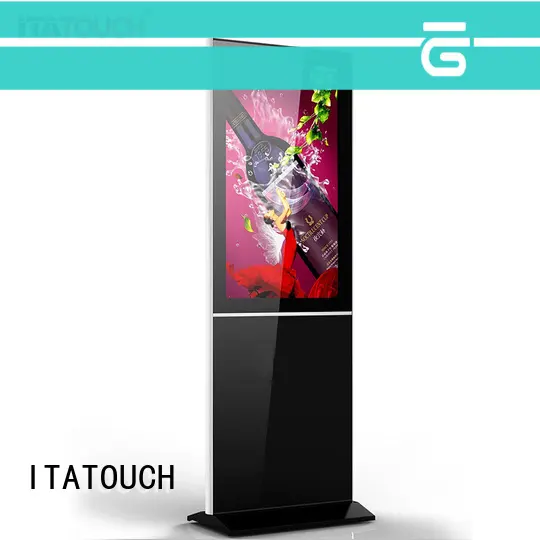

The floor stand totem digital signage is widely used in station, hotel,
airport, store, supermarket, bank, office, school, goverment ... etc
for advertisng displaying and commerce infomation pesenting.
The package will be fixed by wooden case or pallet to ensure shipment safety, ITATOUCH will keep communicate with our clients to arrange all, including Air shipment(by express or airport) and Ocean shipment
Container loading - the package with pallet and plastic film to avoid damaging, waterproof
Workers are setting safety strips to avoid damage from shocking during shipment.
Air shipment for small order quantity - packed in wooden case and pallet and fastened by stripe to ensure safety
Q: Which accessories would be included for the package of this interactive touch display?
R: the package accessories as below,
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
Q: What is the Lead-time?
R: Leadtime: within 10 days for 1~10pcs. around 10~20 days for 20~100pcs.
Q: How long is the warranty period?
R: Usually one year. Certainly, three years also feasible, except the screen panel (since the factory of screen panel just offered one year). we can talk in case by case.
Q: How to order?
R: Please send your inquiry, or call us. Please refer the OEM / ODM service page for more details.
Q: Does it include remote control managment software ?
R: We offer programme with basic features, such as: flash player, split screen, subtitle, log managment, time on/off ... etc.
