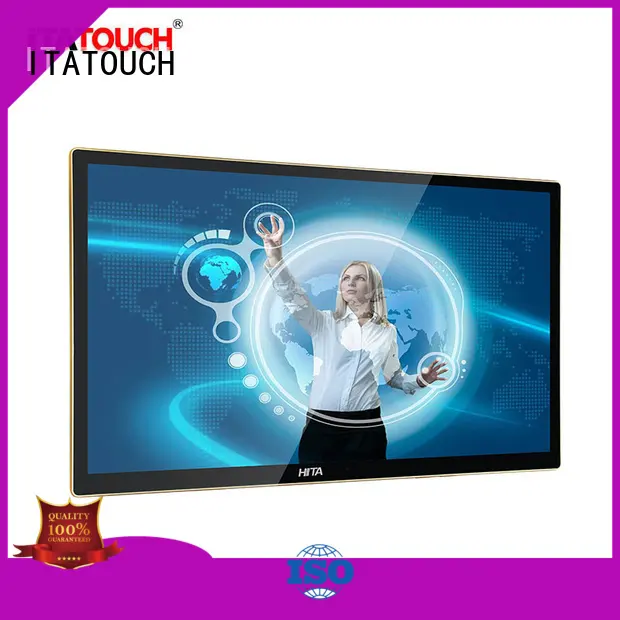

ITATOUCH commerce interactive flat panel display application for school

Model#:
HT-55D NE Series
Size Range:
32", 43", 50", 55", 65", 75"
Touch Tech:
Capacitive 10points touch screen
Resolution:
1920x1080P
OS:
Android & Windows
Interfaces:
USB, HDMI, VGA, RS232
Computer :
OPS PC attachable, Intel I3 /I5 /I7, 4GB/8GB
Supply Ability:
5000piece per month
Min. Order:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Shipping:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Port:
Shenzhen, China
Inquiry
Enterprise Strength
  • ITATouch insists on providing professional services for customers with an enthusiastic and responsible attitude. This enables us to improve customers' satisfaction and trust.
Company Advantages
1. To be responsible for consumers, ITATOUCH ir multi touch screen is strictly tested by various regulations and standards home and abroad, including RoHS, CE, CCC, FCC, etc.
2. Treated with special paint, the metal parts of this product will not corrode, oxidize, or rust, which helps prolong its lifespan.
3. This product features high efficiency with low power consumption, and it is widely applied in the Internet, scientific research, and education fields.
4. It demonstrates the ultimate combination of craftsmanship and sophistication, designed to ensure a high quality sleep quality experience.



Projected capacitive touch technology, aluminum alloy drawing frame, widely used to commerce, education, such as hotel, restaurant station, airport, conference, classroom, etc.


Products Details

Projected capacitive touch technology, aluminum alloy drawing frame, widely used to commerce, education, such as hotel, restaurant station, airport, conference, classroom … etc.,

This interactive display widely used for classroom, conference, hotel, office, supermarket, etc.
User can order the unit per actual needs, include color, PC configuration,  apperance , etc.



ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display
Projected Capacitive Touch Screen

Capacitive 10points touch screen, finger touch writing, intelligent gesture recognizition.

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-1
2K / 4K Screen Panel

LCD LED backlight, LG /Samsung / AUO  screen panel , 1920*1080p or 3840*2160

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-2
Perfect Design

Aluinium frame with covered finish and painting color, modular design, easy use

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-3
Android / Windows OS

Android 5.0/6.0 OS,  1GB/2GB RAM, WIFI / OPS PC Intel I3 /I5 /I7, 4GB/8GB RAM



Details Pictures



ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-4

Aluminum frame with covered finish in golden color, treated by wire-drawing

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-5

LCD LED backlight, 1080P black-gloden panel looks classical and perfect

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-6

Super slim, ultra-thin, modular design for OPS PC and driver control board



Main Features Clarifcation for Capacitive Touch Screen Panel


ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-7

-       Multi Touch Points 10points

Projected capacitive multi touch technology, finger touch, touch sensitive.

Water-proof, anti-dust, and anti-scratch

-       FHD/2K, UHD/4K screen panel

The screen panel will be LCD LED backlight, 2K /1080P or 4K / 2160P display, which offers the presentation with real and vivid images and words, giving a deep impressive teaching/conference.

-       Intelligent gesture recognition,

Based on your gesture,you can control control the touch display, include Zoom in / out, Rotate, Erase, Multi Tasks Witching, Write … for easy teaching and presentation



ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-8

-       Android & Windows OS perfectly compatible, double guarantees.

Android mainboard built-in, android 5.0 OS , quad-core CPU, 1GB/2GB DDR3/DDR4 RAM, it also could smoothly sue the touch screen even if there is no computer connecting, access to the internet, edit, annotate, upload /save files … etc which offers non-worried application environments.

Android OS with multi-languages, include English, Spanish, Russian, Polish, Germany, Turkey, Arabic  … etc

-       Full touch to switch the channels.

Touch the bottom to pull up, there wil be menu channels, include TV System, Android, OPS PC, HDMI 1/2/3, Sources, Display, then user could select the channels accordingly, include adjustoing the screen parameters.



ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-9

-       One key power on/off

By the remote control to power on / off the touch screen and OPS PC for convenience use.

-       OPS PC attachable, Intel I3 / I5 / I7

The device with OPS SLOTs which is for OPS PC attachable.

User could select the OPS PC configuration, include Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU chipset: H61 /H81 /H110.

-       Super Slim, Ultra narrow frame, Round Corner

Module design with LED backlight screen panel

The stylish appearance with metal drawing, die-modular polishing





SPECIFICATION


Screen PanelSize32" 43"50"55"65"
Sceen panel




View Area698.4x392.85mm914.184x529.416mm1073.78x604mm1209.6x680.4mm1428.48x803.52mm
Resolutions1920*10801920*10801920*10801920*10801920*1080
Contrast 3000:11200:01:004000:14000:14000:1
Brightness320 cd/㎡300 cd/㎡300 cd/㎡350 cd/㎡350 cd/㎡
Response time6.5ms8ms8ms8ms6.5ms
Viewing Angle178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)178°(H) / 178°(V)
Lifetime30,000 hrs (min.)30,000 hrs (min.)30,000 hrs (min.)30,000 hrs (min.)30,000 hrs (min.)
Speaker 10W*210W*210W*28Ω5W10W*2
Glass4mm tempmered glass
TouchTechnologyCapacitive 10point touch. Free driver, finger touch
Android  (Option)Mainboard Andriod 4.4 OS, RK3188, 4cores 1.8GHz CPU, Memory   2G,  Flash Nand 8G,  WIFI
Computer   (Option)Mainboard H61 / H81 Chipset
CPUInteCorei7/i5/i3/G2030/Celeron CPU 1150-pin
RAMDDR3 1333Mhz    4G/8
StorageSATA500G;SSD60G/120G
WiFiyes, with antenna
OS Compatiable with WINDOWS 7/8, 10.. Etc
Interfaces I/O  AC*1, HDMI*1, VGA*1, USB2.0*2, USB3.0*2, RJ45*1, PC   AUDIO *1, MIC*2      (some Difference per the differenct   mainboard )
OthersButtonPower on/off, Light lamp

Working PowerAC100 V ~ 240 V, 50-60 Hz
Consumption≤80W
Standby≤1W
EnvirnormentTemperatureWorking: -20℃~60℃, Storage:-40℃~85℃
HumidityWorking: 10%~90%RH,  Storage: 10%~95%RH
Max working time 18 hours /day
AppranceCaseAluminum alloy frame with paint sliver
InstallationWall mounted
PackageProducts762x460x67.6mm1020x608x75.1mm1158x689x76.8mm1296x767x74.5mm1517x892x79.3mm
Packages




WeightN/W 18KGN/W 20KGN/W: 25KGN/W: 26KGN/W: 38KG
AccessoriesPower cable, wall mounts, user manal


Package


The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.


ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-10


Container loading - the package with pallet and plastic flim to anit-damaged and waterproof

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-11


The workers are setting the safety strips to avoid shocking damaged during shipment.

ITATOUCH-Factory Capacitive Multi Touch Screen Interactive Flat Panel Display-12


Air shipment for small order quantiy - settle wooden case or pallet with stripe to ensure safety.


FAQ

Q: Which accessories would be included for the package of this interactive flat panel?

R:  the package accessories as below,

1* Remote Control
1* USB Cable for touch connecting
1* Power Cable  (the international standard, such as: EU, UK, US ..  per usser location)
1* HDMI Cable  (if device with HDMI interfaces)
2* Touch Pens
1* Wall Mounted




Q: What is the Lead-time?

R: Leadtime: within 10days for 1~10pcs.  around 10~20days for 20~100pcs.



Q: How long time is for the warranty?

R:  Usually it is one year.  Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.



Q: How to order it?

R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.






Q: Does ITATOUCH provide the OS for the interactive touch screen with OPS PC ?

R:  Normally offer the finish device only, certainly we could help to install a tral version (WIN 7 / WIN 10) if needs, since we are the hardware interactive touch screen manufacturer.




Q: Is there extra whiteboard software for this interactive panel?

R: Yes, ITATOUCH could offer the whiteboard software if need,  or User could download it from website.
