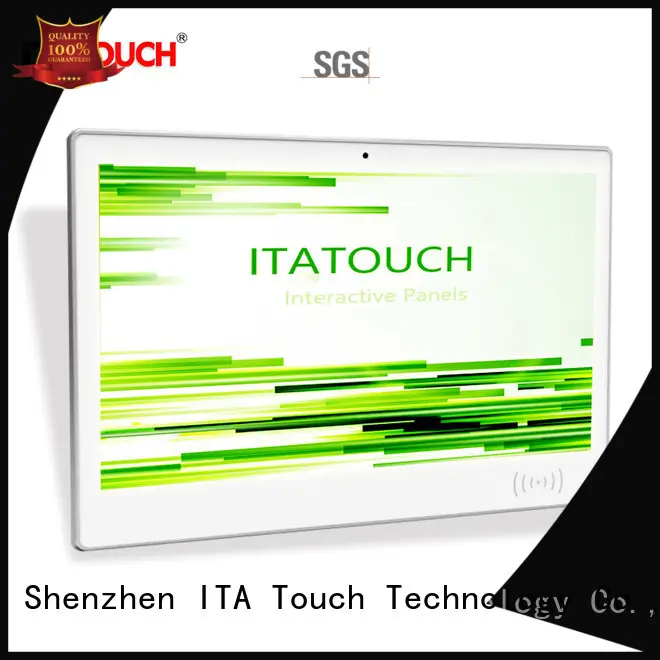

ITATOUCH Latest interactive flat panel display company for military

Company Advantages
1. interactive flat panel display fabricate by Shenzhen ITA Touch Technology Co., LTD is primarily made by capacitive touch screen buy .
2. It has accurate color fidelity. It has the ability to maintain the same RGB (Red-Green-Blue) color balance of the projector’s actual light signal.
3. interactive flat panel display enjoys a high reputation in some overseas market.
4. Shenzhen ITA Touch Technology Co., LTD turns customers' most worthy opportunities and most rigorous challenges into their real competitive advantages.

ITATOUCH produces the small size capacitive touch screen display for any commercial use, projected capacitive technology, built-in Camera, Card Reader,etc. customized supporting. User could select the device por actual use.

ITATOUCH Interactive Flat Panels integrated in projected capacitive touch screen, full high-definition 1080P display, android OS / Computer, and the client could choose other configurations also, such as: built-in camera, carder reader … etc.

Screen Panel	Size	18.5"	21.5"	27"
	Sceen panel	LCD LED backlight
	View Area	409.8*230.4mm	476.64x268.11mm	597.6*36.15mm
	Resolutions	1366*768	1920*1080	1920*1080
	Contrast	600:1	3000:1	3000:1
	Brightness	350cd/㎡	250cd/㎡	300 cd/㎡
	Response time	8ms	6.5ms	12ms
	Viewing Angle	100°(H) / 75°(V)	170°(H) / 160°(V)	178°(H) / 178°(V)
	Lifetime	30,000 hrs (min.)	30,000 hrs (min.)	30,000 hrs (min.)
	Speaker	2W*2,8Ω	2W*2,8Ω	10W*2
Android  (Option)	Mainboard	RK3368 A83T 8cores 1.8GHz    CPU, Memory 2G, 64bit,  Flash Nand    8G,  WIFI, Android 5.1 OS
Computer    (Option)	Mainboard	H61 / H81 Chipset
	CPU	InteCorei7/i5/i3/G2030/Celeron    CPU 1150-pin
	RAM	DDR3 1333Mhz  4G/8
	Storage	SATA500G；SSD60G/120G
	WiFi	yes, with antenna
	OS	Compatiable with WINDOWS    7/8, 10.. Etc
Interfaces	I/O	USB*2,    RJ45*1; SD*1; Microphone *1
Touch (Option)	Technology	Capacitive 10point touch.    Free driver, finger touch; 95% touch area,     accuracy ± 2mm
Camera (Option)	Module Size	55.2mm × 19mm × 24.5 mm;    2~5 millon piexls, USB2.0 interface
	Object distance	15CM-80CM
Card Reader (Option)		agreement:    ISO14443A/ISO14443B/ISO15693 , Frenqucy: 13.56MHZ, Communication Interface:    TTL;
Others	Button	Power on/off, Light lamp
Power    Supply	Power	AC100 V ~ 240 V, 50-60 Hz
	Consumption	≤40W	≤60W	≤60W
	Standby	≤1W	≤1W	≤1W
Envirnorment	Temperature	Working: -20℃~60℃,    Storage:-40℃~85℃
	Humidity	Working: 10%~90%RH,  Storage: 10%~95%RH
	Max working time	18 hours /day
Apprance	Case	Aluminum alloy frame with    paint sliver
	Installation	Wall mounted
Package	Products	467.1x299.1x52.6	532.72x336.72x51.6mm	655.1x405.1x53.1mm
	Packages
	Weight	N/W 5.5KG	N/W 6.5KG	N/W 7.8KG
	Accessories	Power cable, wall mounts,    user manal

Remark:  just for reference, the actual parameters will be some deviations per different components.

The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.

Q: This andriod touch scree monitor could be customized?

 R: Yes, offer customizied service, OEM welcome. Please give us what you like to, such as camera, card reader, android board ... etc .





Q: What is the MOQ for customized.

 R: MOQ: 10pcs.





Q: How Long Leadtime for customized units.

 R: It would be around 15~25pcs, which is based on the status of the changing. if no constructure change, then around 10days. it could be talk in case by case.

.

Q: How long time is for the warranty?

 R:  Usually it is one year.  Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.

Q: How to order it?

R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.



Q: Which accessories would be included for the package of this interactive panels?

R:  the package accessories as below,

Company Features
1. Based in China, Shenzhen ITA Touch Technology Co., LTD is regarded as one of the most competent manufacturers of capacitive touch screen buy . We are also becoming an international-oriented company.
2. ITATOUCH has constantly concentrated on technological innovation.
3. We are committed to offering top-of-grade customer services. We will treat each customer with respect and take appropriate actions based on the actual situations, and we will keep track of customer feedback at all time. We strictly abide by environmental obligations. During our production, we ensure that our use of energy, raw material, and natural resources are totally legal and environmentally friendly. We drive change and positive environmental impact, by going above and beyond compliance in all aspects of our operations. We strictly track energy consumption, CO2 emissions, water usage, total waste generation, and disposal.
