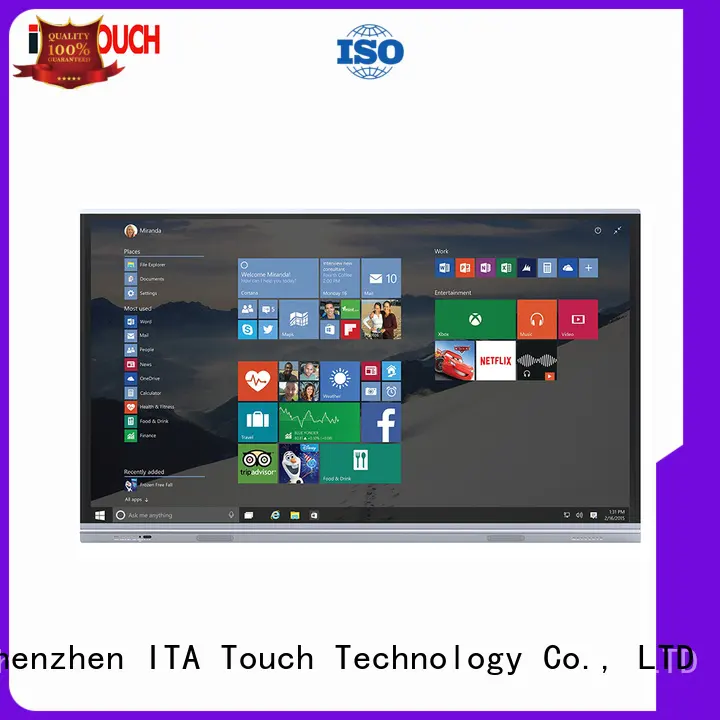

ITATOUCH Latest interactive flat panel display factory for government

Company Advantages
1. ITATOUCH interactive flat panel display is manufactured with quality components and parts which are less likely to ruin the board after soldering. Of course, the soldering procedure is also carefully carried out with professional workers.
2. This product has electromagnetic compatibility. It has the ability to operate satisfactorily in its electromagnetic environment without causing unacceptable electromagnetic interference to anything in that environment.
3. This product has electromagnetic compatibility. Designed in accordance with the EMC Directive, it does not generate or is immune to electromagnetic disturbance.
4. This product will fit perfectly into any room or space with its flexible design and style, making a compliment to the surroundings.

1. Android 8.0 OS,  4GB RAM, 32GB ROM

2. Touch panel with 5G WIFI & Blue Antennas.

3. Floating Menu - the floating icon can freely move anywhere and help the user quickly open the application, and add/delete what you want to display.

4. Conference Whiteboard App - the user can use the context menu to open, save the file, scan a QR code to share documents/files, and insert image and mail delivery.

5. Intelligence screen lock, the user can set the screen lock password, smart recognition, standby mode, time switch, and more options.

6. The user can customize the implement user-selected add-on applications

7. People can touch the screen or by the front button /remote control to turn on/off the energy saving.

8. Screen recording function

9. Camera icon (which need to connect with the camera )

9. Timer function - set timing time,  counting down, and stop counting

10. Extension tool-When you enter the selected state, the extension toolbar will pop up,

which copies, cuts, deletes, renames, compresses, encrypts, and collects functions.

11. VIP reception app which has the feature Text Editor, Signature mode, and OR code sharing.

12. Multi-screens projection functions  ( this feature need to buy the authorization if needs)



The clean finish with painting color in silver/black or full black bezel by materials of aluminum alloy frame, and the backside with the metal shell in black. slim thickness and frame.

Below is a dimension of 75" touch panel for reference.

Panel
Sizes	54.64inch	64.53inch	74.52inch
Screen Panel Type	D-LED	D-LED	D-LED
Resolution	3840*2160	3840*2160	3840*2160
Brightness (type)	350 cd/㎡	400 cd/㎡	400 cd/㎡
Contrast	4000:1	4000:1	1200:1
Display Area	1209.6*680.4 mm	1428.5*803.5 mm	1649.66*927.94mm
Pixel (mm)(H/V)	0.21 x 0.63	0.372x 0.372	0.429 x 0.429
Display Rate	16:9	16:9	16:9
Reviewing Angle	178°	178°	178°
Colorful	10bit,10.7B	10bit,10.7B	10bit,10.7B
Response time	8ms	6ms	6ms
Lifetime	Above 50,000h	Above 50,000h	Above 50,000h
Touch Glass	AG	AG	AG
Sound System
Speaker	2*15W	2*15W	2*15W
Video type	PAL、NTSC、SECAM	PAL、NTSC、SECAM	PAL、NTSC、SECAM
Sound type	D/K、 B/G、 I、M	D/K、 B/G、 I、M	D/K、 B/G、 I、M
Android System
Android OS	Andriod 8.0 OS	Andriod 8.0 OS	Andriod 8..0 OS
Android CPU	CPU: Dual-core A73 and dual-core A53, 1.5GHz;  GPU: Quad-core MaliG51
Flash Nandi  EMMC	32G	32G	32G
RAM  DDR3	4G	4G	4G
Input Resolution	1920*1080/60HZ, 3840*2160/60HZ
Front Frame	HDMI-IN*1, USB*2,, AUDIO OUT*1
Input	2*HDMI,  1*VGA, 1*YPBPR, 1*AV (3.5mm jack in), 2*USB3.0,  1*TOUCH-USB,  1*RS232,  1*SD (support MAX 128GB) ,  1*RJ45,  1*WIFI 5G,   1*OPS PC SLOT 80PIN
Output	1*SPDIF, 1*HDMI, 1*Earphone, 1*AV
Front Button	POWER, MENU, CH-, CH+, VOL-, VOL+, IN, ECO
Touch Technology
TouchPoints	Infrared 20-touch points, support 2, 6, 10, 20points
Touch Method	Finger or Pens, any objects
Calibration Technology	Infrared magnetical sensor
Accurate	<2mm	<2mm	<2mm
Resolution	4096*4096/16384*16384/32768*32768
Response time -1st touch	<15ms	<15ms	<15ms
Continuous touching	<8ms	<8ms	<8ms
Light Sensor	>220dot/second	>220dot/second	>220dot/second
Touch interface	USB	USB	USB
Support OS	Support WINDOWS /LINUX /MAC  /Android
Touch objects	≥Φ3mm	≥Φ3mm	≥Φ3mm
Touch times	above 6000millions times at the same point
Software under Andriod OS
Whiteboard App	Yes	Yes	Yes
Mirror Server	Option	Option	Option
Google App	Compatible	Compatible	Compatible
Power Supply
Power	AC(100-240)V～50/60HZ
Rated current	1.5A	2.5A	3A
Environments
Temperature	Working Temperature: 0°C to 40°C ;   Storage Temperature: -20°C to 55°C;
Humidity	20%-80% RH at 40°C, non-condensing
Others
The shell	Black bezel/ Aluminum alloy frame with Oxidation drawing treatment/metal shell of the backside
Accessories	Touch Pen x2	Touch Pen x2	Touch Pen x2
	HDMI cable (1.5M) x1	HDMI cable (1.5M) x1	HDMI cable (1.5M) x1
	USB cable (1.5M) x 1	USB touch cable (1.5M) x 1	USB touch cable (1.5M) x 1
	Power cable（1.8M) x 1	Power cable（1.8M) x 1	Power cable（1.8M) x 1
	Remote control  x 1	Remote control  x 1	Remote control  x 1
Package Dimension	1385*175*890mm	1630*180*1090mm	1865*220*1180mm
Net Weight	39Kg±1Kg	55Kg±1Kg	79Kg±1Kg
Gross Weight	49.5Kg±1.5Kg	62.47Kg±1.5Kg	85Kg±1.5Kg
Quality Compliance	CE, FCC, ROHS, ISO

Company Features
1. In order to keep a leading of profession position, Shenzhen ITA Touch Technology Co., LTD will continuously outstrip ourselves.
2. interactive flat panel display is made by our best technology.
3. We want to become even more a brand that people love - A future-proof and high-quality company with strong premium consumer and business relations. Our primary goal is to create brands that are constantly preferred and to provide long-term customer satisfaction with our sales / after-sales support teams. Call now! Our mission is to create consistent customer delight. We constantly provide innovative products with the highest standards to help our customers become more competitive. We energetically promote environmental protection and sustainable development. We will use cost-effective and mature technological production facilities to reduce environmental negative influence.
