ITATOUCH pc all in one interactive whiteboard visualizer for military
1. all in one interactive whiteboard we quoted are all made of the best multimedia whiteboard and of various kinds of styles and colors in order to meet different requirements.
2. The product is of the highest quality, performance and durability.
3. The product meets the most stringent quality requirements and can be used for quite a long time.
4. This product does not pose any safety risk. On the contrary, it makes people feel safe, increases their confidence and boosts their mood.
5. This product actually needs little maintenance. This will reduce the time and cost of maintenance and finally help save production costs.
So this electonic whiteboard called “ All In One whiteboard ”, User has only one piece of this board + Projector, then it could present a high-quality conference / teaching ,Etc.
The All In One Interactive Whiteboard offers high-effective solutions, people do not worry the connections again, it is getting so simple to finish the speech / teaching, also save the room, to bring a comfortable and convenient environment.
This digital whiteboard is infrared multi touch technology, finger touch board to control what you wanna. The conponents include below,

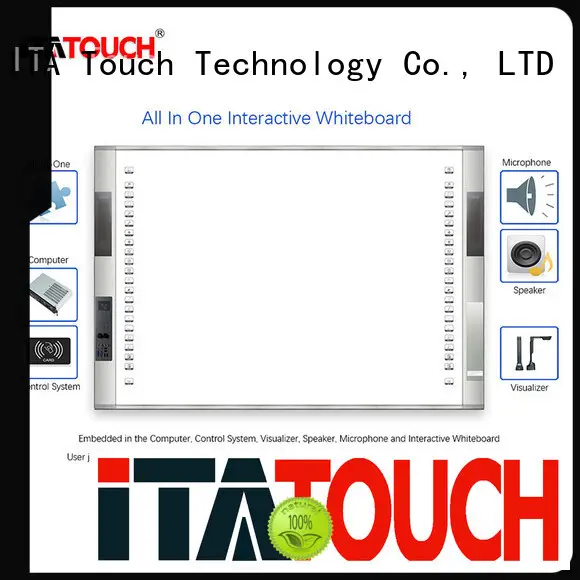

Embedded in the Computer, Control System, Visualizer,Speaker.Microphone and Interactive Whiteboard
User just have one piece of this board*projector,then it could present a high-quality conference/teaching...,Etc.
The board materials will be constructed by three parts: Surface, Wick and Back, see below picture.,
Customer can choose the board materials per below
Surface Material:
Option A: Cold rolled steel surface, anti-damage, Nano surface.
Option B: Cold rolled steel surface, anti-damage, ceramic surface, hardness 7H. Dry-Ease, support marker pen.
Wick Material:
Back: Galvanized Steel Sheet
Option A
High density polyfoam
Option B
Honeycomb Aluminum
Product Size | 79" | 86" |
Touch Technology | Infrared Touch | Infrared Touch |
Projection Size | 1126*1501MM (73.9" | 1220*1627MM(80.1") |
Active Size | 1140*1643MM(78.8") | 1234*1797MM(85.9") |
Inner Size | 1140*1651MM(79.0") | 1234*1805MM(86.1") |
Total Area Size | 1186*1884*60MM(87.6") | 1280*2038*60MM(94.7") |
Input Ports | HDMI*2, VGA*2, Audio*2, MIC*1, USB*1, Touch USB*1, AV*1, OPS Slot*1 | |
Output Ports | HDMI*1, VGA*1, RS232*1, AV*1 | |
Others | RFID Card x1, Speaker Volume Control Knob x1 | |
Microphone Volume Control Knob x1 | ||
Press-Button and Indicator Light x9, Buzzer x1 | ||
Speaker 10W x2 | Speaker 15W x2 | |
Power Amplifier 20W | Power Amplifier 30W | |
Visualizer | 5 million pixels / 8 million pixels option | |
OPS Mini Computer | Intel I3/I5, 4G RAM, 500G HDD, WIFI | |
Input Voltage | AC(90～240)V-50/60HZ | |
Power Supply | Standby Power：<1W, Rated Power：<190W | |
Working Temperature | 0°C～40°C | |
Touch Input | 4,6, 10 or more option | |
Responding Time | <15ms, continuous <8ms; Cursor Speed: 108 dot/second; object Size: ≥Φ8mm | |
Touch Port | USB 2.0 / USB 3.0 | |
Touch Lifetime | 600 minions at same position | |
Accessories | 1.8M Power Cable x1, 1.8M VGA Cable x1, 5M USB Cable x1, Touch Pens x3, | |
Pointer x1, Software CD x1 Wall mounted Accessories x 1 set | ||
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
The Accessories Box:
1* Wall Mounted
1* Pointer
1* Eraser
1* Whiteboard Software CD
Small box of the accessories package to be packed into the whiteboard carton
The Interactive Boards will be packed by double cartons, and fold the foam to ensure safety.
Package with stripe belt, and settle the wooden pallet if needs . (Container Loading)
Q: Which accessories would be included for the package of this interactive boards?
R: the package accessories as below,
1* Wall Mounted
1* Pointer
1* Eraser
1* Whiteboard Software CD
Q: What is the Lead-time?
R: Leadtime: within 15 days for 20' GP/40HQ Contatiner Qty
Q: How long time is for the warranty?
R: Three years .
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
