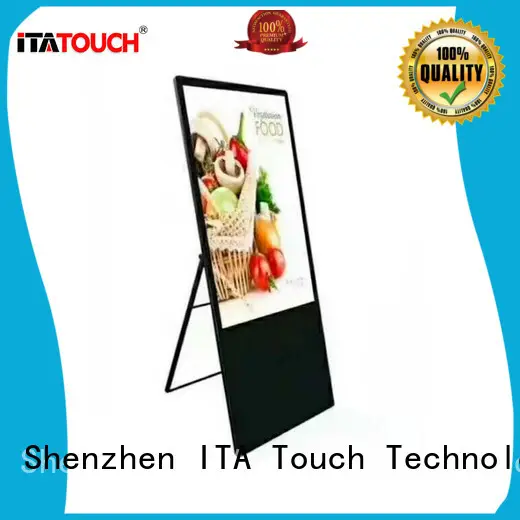

ITATOUCH poster totem display use for company
1. ITATOUCH commercial lcd display is developed adopting the philosophy of ergonomics by the in-house R&D department. Each part of the product is designed with different functions for the foot.
2. To ensure durability, our highly skilled QC professionals strictly inspect the products.
3. After several years of development, Shenzhen ITA Touch Technology Co., LTD now owns a formidable technology power and its products are sold well at home and abroad.
4. Shenzhen ITA Touch Technology Co., LTD is an enterprise which devotes ourselves into manufacturing and designing totem display .
It is portable information kiosk for advertisng display, and the cost is very competitive for store, supermarket ... etc.
* 1080P Full HD Display
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying
* Security Design, industrial mainboard, and tempered glass
* Support full media format files
Optional Configrations:
1. Configuration : Card Reader, Android LAN or PC built-in
2. Touch built-in: IR or Capacitive multi touch screen
3. Remote Control Management System : edit /publish the documents/ pictures / video by internet serve.
Such as: Colors , Shape or Built-in other hardware, such as: IC card reader, mini-printer .. Etc.
(MOQ: 10pcs)
Screen Panel | ||||||||||||
Size | 32" (Customized) | 42" | 50" | 55" | 65" | |||||||
Panel Brand | LED backlight, TFT screen panel | |||||||||||
Display Area (mm) |
| 930.2*523.2 | 1039.68*584.82 | 1209.6*680.4 | 1428.42*803.52 | |||||||
Resolution | 1366*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |||||||
Brightness (typ/min) | 350cd/m2 | 360cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 | |||||||
Contrast (typ) | 4000:01:00 | 4000:01:00 | 1400:01:00 | 1400:01:00 | 4000:01:00 | |||||||
Response Time | 8ms (typ) | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) | |||||||
Pixel Pitch | 0.51075*0.17025 | 0.4845*0.4845 | 0.5415*0.5415 | 0.630*0.630 | 0.802*0.802 | |||||||
Visual Angle | R/L 160° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |||||||
Life (typ) | 3000hrs (min) | 3000hrs (min) | 5000hrs (min) | 3000hrs (min) | 3000hrs (min) | |||||||
Color Saturation (*% NTSC) | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 | |||||||
Colorful | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 16.7M | |||||||
Stereo speaker | 5W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω | |||||||
Android LAN Work Solutions |
| |||||||||||
mainboard | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2 |
| ||||||||||
Internet | RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT |
| ||||||||||
Input | USB2.0*2, TF*1, RJ45*1, DC12V*1 |
| ||||||||||
Output | HDMI*1, MINI AV*1 |
| ||||||||||
Features | Support all the usual audio formats |
| ||||||||||
| Support music library, tag search, online streaming media |
| ||||||||||
Video | 3D 1080P; Video Decode AVI(h.264,DIVX,XVID,RM,RMVB,MKV,WMV,MOV,MP4,MPEG |
| ||||||||||
Flash | Support Adobe Flash V11.1 or Later |
| ||||||||||
Picture | Support JPEG,GIF,PNG,BMP files; Picture rotating, zooming out, support painting,(Gallery) |
| ||||||||||
others | Google Brower, Google APP, Market/APP Store download APK and games Google Map, Email |
| ||||||||||
| Calculator, Calendar, files manager; Office documents (TXT,PDF, Office Doc/Xls/PPT editor) |
| ||||||||||
| Support flash subtitle, Log management, time on/off, |
| ||||||||||
Normal LAN built-in PC Solutions |
| |||||||||||
Mainboard | Sigma 8635 mainboard ( LAN system) ; X86 mainboard ( built-in PC) |
| ||||||||||
Memory | SD card - 4GB option (can be expanded to 32GB) |
| ||||||||||
Network | IEEE802.3 10/100M Ethernet LAN |
| ||||||||||
Input | USB2.0*1; RJ45*1 |
| ||||||||||
Option | CF *1; SD *1 |
| ||||||||||
Audio | Support full format file(1080P) |
| ||||||||||
Video | support MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB |
| ||||||||||
picture | Support JPEG,GIF,PNG,BMP files |
| ||||||||||
others | Security design; multi-display modes; |
| ||||||||||
| Support flash subtitle, Log management, time on/off, display instand messaging |
| ||||||||||
Built-in PC (option) |
| |||||||||||
PC | Intel J1900/ I3 /I5 CPU, 4G memory, 500G HDD Wi-Fi with Antenna (option) |
| ||||||||||
Interfaces | Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 |
| ||||||||||
Touch Screen Option |
| |||||||||||
Touch Screen | Optional, Infrared multi touch points, Finger touch, gloved hand, or any opaque objects |
| ||||||||||
Other Features |
| |||||||||||
Case | Metal backside case, Aluminum Frame, 4mm Tempered Glass |
| ||||||||||
Work | Temperature: 0℃～40℃: Humidity:10%～90% |
| ||||||||||
Power | AC 100-240V 50/60HZ; Stand by ≤1W |
| ||||||||||
Consume | ≤30W | ≤60W | ≤100W | ≤130W | ≤130W |
| ||||||
Quality appliance | CE, FCC, ROHS |
| ||||||||||
Accessories | CD, remote control, cables, user instruction |
| ||||||||||
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic film to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety.
Q: Which accessories would be included for the package of this interactive touch display?
R: the package accessories as below,
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does it include remote control managment software ?
R: We offer the programme with the basic features, such as: flash player, divided screen, subtitle, log managment, time on/off ... etc.
