+ 86 13582949978Infrared Multi Touch Screen
IR the 9th generation of technology, finger & any objects touch, support 10 users writing, response fast , smoothly
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
ITATOUCH Top capacitive touch screen for business for government
Model#:
HT-75D
Size Range:
55”, 65”, 75”, 86”, 98”
Touch Tech:
Infrared Multi Touch 10points
Resolution:
1920x1080P / 3840x2160
OS:
Android & Windows
Interfaces:
USB, HDMI, VGA, RS232
Computer :
OPS PC attachable, Intel I3 /I5 /I7, 4GB/8GB
Supply Ability:
5000piece per month
Min. Order:
1piece
Payment:
T/T, Western Union, PayPal, Alipay, L/C
Shipping:
Express / Air / Sea per the requirements (Transparent and fair price, online tracking)
Port:
Shenzhen, China

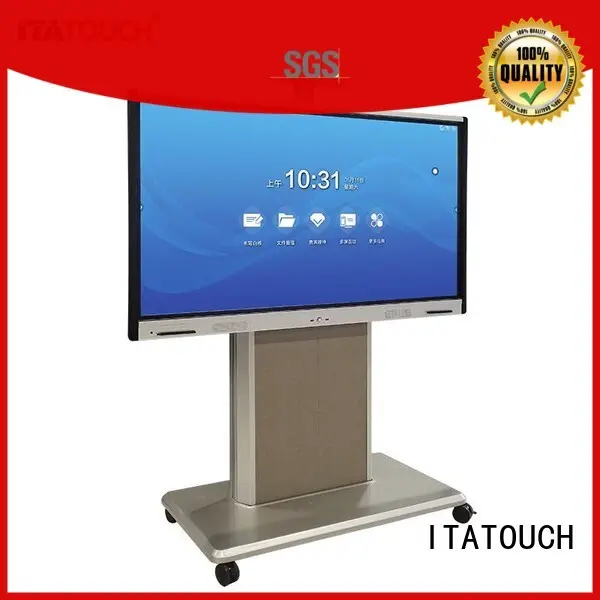

Conference Interactive Panel
This interactive panel, a special-designed one with a magnetic pen holding on front bottom, features simple fashion, but it is quite powerful than it looks.
For example, under andriod OS, its built-in interactive software (if user needs) can help transfer contents among multi devices (interactive flat panels, tablets and phones ) in real-time for multiple users.
Currently it was mainly used in office, government, hotel conference and meeting and video display meeting for various users.
Video Camera could be attached if needs.
Application Examples:
Multiple Interactive Flat Panels with interactive software were applied to goverment office to control things
Interactive display with video camera for meeting solutions, offering a vivid interactive presentation
Interactive conference panel for office meeting offers a best solution, participants catch the meeting contents easily.
ITATOUCH Interactive Touch Display adopts the 9th generation of infrared multi touch technology, high-density infrared light tube integrated PCB, which guarantees an accurate and smooth response from touch sensor, offering multiple users (10 points touch) a good and pleased experience.
ITATOUCH Interactive Flat Panel was loaded with built-in android OS, and OPS PC are also attachable, consequently, there is no need for projectors to create an interactive learning / teaching / meeting environment again.
Key Functions
2K /4K UHD Screen Panel
LED backlight, LG /Samsung / AUO screen panel , 1920*1080p or 3840*2160 resolutions
Android & Win OS
Android 5.0 OS, 4 cores CPU, 1GB/2GB RAM, WIFI. option OPS PC Intel I3 / I5 / I7, 4GB/8GB
Smart & Intelligence
Intelligence gesture, touch switching all, one key power on/off , auto-sensor, eye-protection, kids lock, engery saving ...
Anti-Glare Glass
AG glass option for interactive panel, real synthetic anti-glare technology for whole lifetime
Interactive Conference
Android OS with interactive transferring software, support multi screens, split screens, gesture eraser ...
Detailed Pictures
Left front: Magnetic Pen Hold *1, Indicated Light *1, Speaker 10w*1; module design and painting treatment
Middle of the bottom - Power On/Off, interfaces: USB2.0* 2; Frame color to be cusotmized
Right front: Magnetic Pen Hold *1, Speaker 10w*1, Round corner with perfect finish.
More interfaces on the backside for your needs: USB, HDMI, VGA, RS232, RJ45, I/O , Microphone ... WIFI with antenna, which is very convenient to conncet with outside device, such as computer, internet, video device ... etc.
Detailed Clarification for Interactive Panel
Infrared Multi Touch Screen
The 9th generation of infrared touch screen technology, finger and any objects touching screen, 4mm tempered glass, high light transmittance
Fast response, write/annotate smoothly for teaching and presentation.
Support over 10 people writing on the screen at the same time, interactive around the screen.
Anti-light interference, anti-shadow, adapt to a variety of environments
Easy maintenance and replacement – self-checking software in case any problem happens.
Magnetic Attachable Pen Holds
On the front bottom, there are two pen slots.
Android & Windows OS
Android mainboard built-in, android 5.0 /6.0 OS , quad-core CPU, 1GB/2GB DDR3/DDR4 RAM
Quick and smooth access to the touch screen even if there is no computer connecting. To access to Internet, to edit, annotate, upload and save files as usual.
Android OS with multiple languages, including English, Spanish, Russian, Polish, Germany, Turkey, Arabic …
OPS SLOTs for OPS PC
User could select the OPS PC configuration, including Intel I3 / I5 / I7 CPU, 4GB/8GB DDR3/DDR4 RAM, 120G/256G SSD or 500GB / 1TB HDD, CJPU chipset: H61 /H81 /H110.
2K / 4K Screen Panel
Full-sized LCD LED backlight display with 2K /1080P or 4K / 2160P resolution, offering you a deep impressive teaching/conference experience with real and vivid images and words.
Intelligent gesture recognition
Imagine interacting with your devices just by gestures: zooming in/out, rotating, erasing, multi-tasks switching, writing...What it feels like? All for your convenience!
Full touch to switch the channels
Scroll up from the bottom to activate the menu channel--a quick access to TV System, Android, OPS PC, HDMI 1/2/3, Sources, Settings.
All at your fingertips!
Anti-Glare Glass Option
If you need an anti-reflective device, we can treat tempered glass with special technology. Please bring your requirements out when you order.
Round Corner, anti-scratch screen
Module design with LED backlight display, the device is thin and narrow, including the touch panel – tempered glass.
The stylish appearance with metal drawing, polished frame
Specification
| Screen panel | ||||
| Panel size | 55inch | 65inch | 75inch | 86inch |
| Screen panel | TFT screen panel, LED backlight | |||
| Display (mm)(H/V) | 1209.6 x 680.4 | 1428.48 x803.52 | 1650.24 x928.26 | 1872 x1053 |
| Display Rate | 16:09 | 16:09 | 16:09 | 16:09 |
| Max resolution | 1920x1080 | 3840x2160 | 3840x2160 | 3840x2160 |
| Display color | 16.7M | 1.07B | 1.07G | 16.7M |
| Pixel (mm)(H/V) | 0.21×0.63 | 0.372*0.372 | 0.143(H) mm x 0.430 | 0.4875 x 0.4875 |
| Brightness (nits) | 300cd | 400cd/m² | 400cd/m² | 350cd/m² |
| Contrast | 1200:1 | 1200:1 | 1100:1 | 1200:1 |
| Visual angle | ±178° | ±178° | ±178° | ±176° |
| Response time | 8ms | 6ms | 6ms | 8ms |
| Speaker | MAX power: 15W*2 | |||
| Mainboard | ||||
| Android Mainboard (Option) | Android mainboard, Clocked CPU 1.4GHz, Memory 1GHz, Flash Nand 4GB, Android 5.0 OS ; | |||
| Input: Mini-YPBPR*1, Mini-AV*1, PC-AUDIO*1, VGA*1, TV-USB2.0*2, UHD1.4*1 UHD2.0*1 (only for 4K display), HDMI built-in *1; RS232*1; RJ45*1, SD Card Reader for android *1 | ||||
| Output: Earphone*1； AV(mini)*1; SPIDF*1; Touch USB *2 | ||||
| Front Interfaces: HDMI*1; VGA*1; PC-Audio*; ALL-USB*2; Touch-USB*1; Mini Microphone*1 | ||||
| Front Buttons: PC Power; TV Power; MENU; Source; VOL+, VOL-, Energy; Power on/off | ||||
| Features | 1. One key to power/on offer the screen and device; automatically power off. One-key lock the display; Automatic wake-up and child-lock function | |||
| OPS COMPUTER | ||||
| CPU | Intel Core i7/i5/i3/Celeron CPU 1150-pin; Integrated HD Graphics; built-in HD audio 6(Realtek ALC661) | |||
| Memory | DDR3 1333Mhz 4G/8G option | |||
| SSD | 120G SSD (240G SSD or 500G HDD option) | |||
| Wi-Fi | Optional, Wi-Fi with Antenna, 802.11 b/g/n | |||
| PC Ports | HDMI×1, VGA×1, USB2.0×2, USB3.0×2, RJ45×1, PCAUDIO×1, MIC×1, RS232×1 | |||
| Touch Technology | ||||
| Multi Touch | Infrared technology,, 10point touch; finger or any objects touch | |||
| Glass | Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | |||
| Resolution | Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | |||
| Features | No drift, drive-free, waterproof, anti-dust; finger/object multi-touch, intelligence gesture recognizes etc | |||
| OS | Support Windows 7/ Windows 8 | |||
| Whiteboard Software | Option, widely used to education, conference, military etc; multi-functions and multi-languages; compatible with Windows OS | |||
| Power supply | ||||
| Power supply | AC100~240V 50 /60 HZ; Consumption: Standby <1W | |||
| Consumption | ≦200W | ≦250W | ≦300W | ≦500W |
| Environments | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | |||
| Physical Features | ||||
| Case | Black color/ Aluminum alloy/ metal case | |||
| Dimension | 1291.8*799.1*81.2 | 1511.2*922.7*81.2 | 1733.2*1048.7*81.2 | 1979.4*1197.7*121 |
| Mount (mm) | 23.3mm | 23mm | 23.3mm | 8.5mm |
| Package (mm) | 1495*925*245 | 1710*1135*245 | 1910*1285* 245 | 2150*1410*295 |
| CBM | 0.35 | 0.5 | 0.53 | 0.73 |
| N/W & G/W (kg) | 54 & 65kg | 78 & 92kg | 79 & 96kg | 115& 136kg |
| 20'GP/40'HQ | 90/220pcs | 55/140pcs | 48/125pcs | 37/95pcs |
| Accessories | ISO9001,ROHS, CE, FCC | |||
| User Guide, Warranty card, Remote Control, USB Cable 3m; Power Cable 1.5m; Touch Pens /2pcs, | ||||
Package
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep in touch with our clients to arrange all,processes including Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to prevent damage and water.
Workers are setting the safety strips to avoid shocking damage during shipment.
Air shipment for small order quantity - settle wooden case or pallet with packing belt to ensure safety.
FAQ
Q: Which accessories would be included for the package of this interactive touch panel?
R: the package accessories as below,
1* Remote Control
1* USB Cable for touch connecting
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* USB Cable for touch connecting
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
1* HDMI Cable (if device with HDMI interfaces)
2* Touch Pens
2* Touch Pens
1* Wall Mounted
Q: What is the Lead-time?
R: Leadtime: within 10 days for 1~10 pcs, around 10~20 ays for 20~100 pcs.
Q: How long is the warranty period?
R: Usually one year. Certainly, three years also feasible except the sceen panel (since the factory of screen panel just offered one year). we could talk case by case.
Q: How to order?
R: Please send your inquiry, or call us. the process please refer the OEM / ODM service page.
Q: Does ITATOUCH provide the OS for the interactive touch screen with OPS PC ?
R: Normally offer the finish device only, certainly we could help to install a trial version (WIN 7 / WIN 10) if needed, considering that we are the hardware interactive touch screen manufacturer only.
Q: Is there extra whiteboard software for this interactive panel?
R: Yes, ITATOUCH could offer the whiteboard software if needed, or Users could download it from website.
