ITATOUCH use android digital signage installation for office
1. During the production of ITATOUCH top display advertising companies , the defective percentage is strictly under control. Quality is guaranteed by rigorous control and monitor of each production process to meet the quality standards required in the electronics industry.
2. This product features high efficiency with low power consumption, and it is widely applied in the Internet, scientific research, and education fields.
3. The result shows: our android digital signage has met the requirements of the top display advertising companies standard, the process has advantages of totem display stand .
4. Professional after-sales service and technical Q&A are the most solid protection that Shenzhen ITA Touch Technology Co., LTD gives to customers.

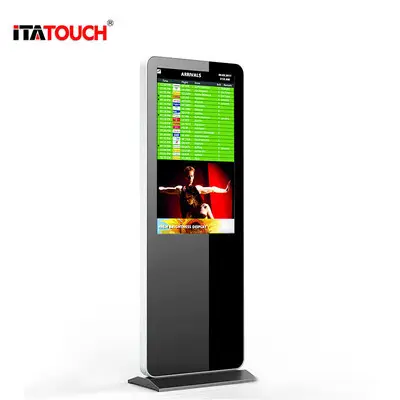

A Rotated Interactive Digital Signage

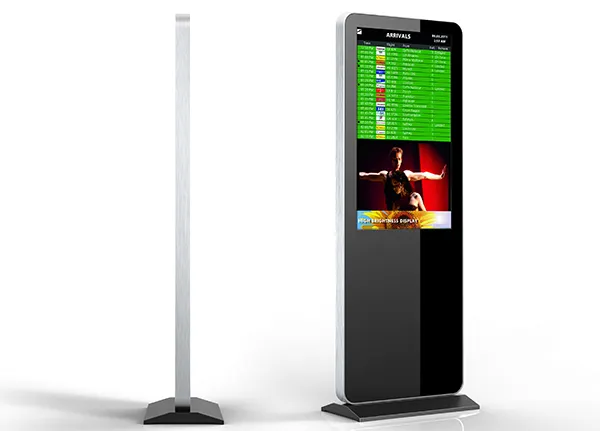

The main feature of this floor stand digital display is rotated, the screen panel could be horizontal (as the video), and vertical, even slanted display.
The device as the video is 65” infrared 10points touch screen display, and built-in android OS (Android RK3288, 2GB RAM, 16GB flash Nandi), PC embedded option.
The customization is supported, shape, color, configurations , Etc. OEM welcome!* 1080P Full HD Display
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying
* Security Design, industrial mainboard, and tempered glass
* Support full media format files

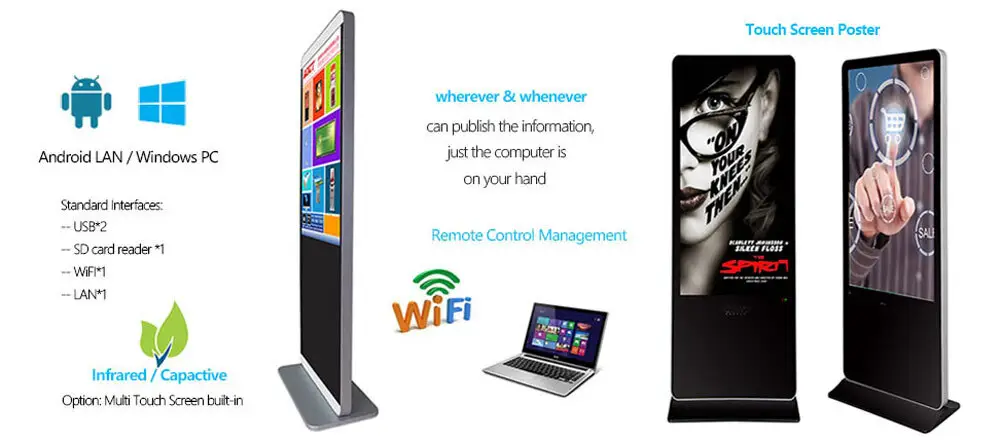

1. Configuration of this digital signage : Card Reader, Android LAN or PC built-in
2. Touch screen built-in: IR or Capacitive multi touch screen
3. Remote Control Management System : edit /publish the documents/ pictures / video by internet serve.
Such as: Colors , Shape or Built-in other hardware, such as: IC card reader, mini-printer .. Etc.
(MOQ: 10pcs)
| Screen Panel | |||||

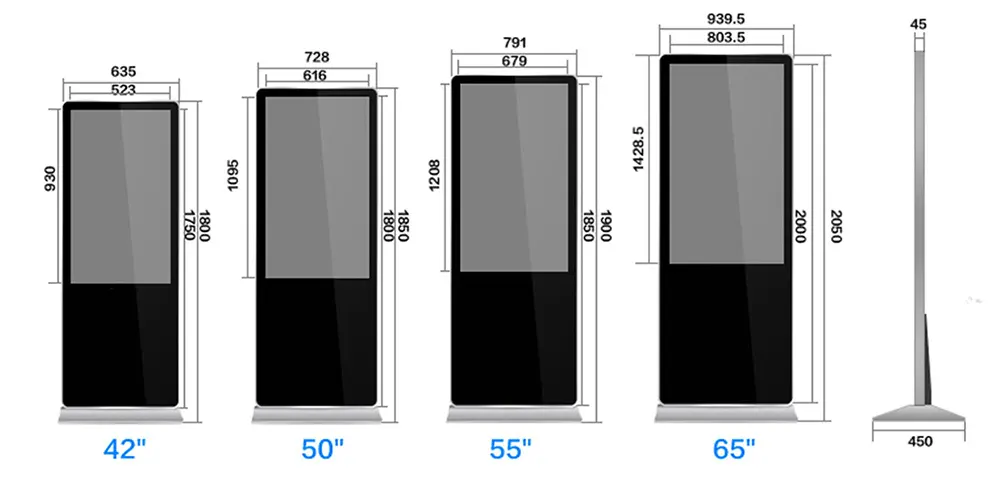

| Size | 32" (Customized) | 42" | 50" | 55" | 65" |
| Panel Brand | LED backlight, TFT screen panel | ||||
| Display Area (mm) | 930.2*523.2 | 1039.68*584.82 | 1209.6*680.4 | 1428.42*803.52 | |
| Resolution | 1366*768 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness (typ/min) | 350cd/m2 | 360cd/m2 | 300cd/m2 | 350cd/m2 | 360cd/m2 |
| Contrast (typ) | 4000:01:00 | 4000:01:00 | 1400:01:00 | 1400:01:00 | 4000:01:00 |
| Response Time | 8ms (typ) | 8ms (typ) | 6ms (typ) | 8ms (typ) | 8ms (typ) |
| Pixel Pitch | 0.51075*0.17025 | 0.4845*0.4845 | 0.5415*0.5415 | 0.630*0.630 | 0.802*0.802 |
| Visual Angle | R/L 160° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Life (typ) | 3000hrs (min) | 3000hrs (min) | 5000hrs (min) | 3000hrs (min) | 3000hrs (min) |
| Color Saturation (*% NTSC) | 0.72 | 0.72 | 0.72 | 0.72 | 0.72 |
| Colorful | 16.7M | 16.7M | 8bit 16.7M | 16.7M | 16.7M |
| Stereo speaker | 5W, 8Ω | 5W,8Ω | 10W, 8Ω | 10W,8Ω | 10W,8Ω |
| Android LAN Work Solutions | |||||
| mainboard | Cortex A20, Dual-core 1.2GHz CPU, 1GB DDR3, 8GB Flash Nand, Android OS 4.2.2 | ||||
| Internet | RJ45, 1*10/100M Ethernet ; Wi-Fi, 802.11 1x1 BGN+BT | ||||
| Input | USB2.0*2, TF*1, RJ45*1, DC12V*1 | ||||
| Output | HDMI*1, MINI AV*1 | ||||
| Features | Support all the usual audio formats | ||||
| Support music library, tag search, online streaming media | |||||
| Video | 3D 1080P; Video Decode AVI(h.264,DIVX,XVID,RM,RMVB,MKV,WMV,MOV,MP4,MPEG | ||||
| Flash | Support Adobe Flash V11.1 or Later | ||||
| Picture | Support JPEG,GIF,PNG,BMP files; Picture rotating, zooming out, support painting,(Gallery) | ||||
| others | Google Brower, Google APP, Market/APP Store download APK and games Google Map, Email | ||||
| Calculator, Calendar, files manager; Office documents (TXT,PDF, Office Doc/Xls/PPT editor) | |||||
| Support flash subtitle, Log management, time on/off, | |||||
| Normal LAN built-in PC Solutions | |||||
| Mainboard | Sigma 8635 mainboard ( LAN system) ; X86 mainboard ( built-in PC) | ||||
| Memory | SD card - 4GB option (can be expanded to 32GB) | ||||
| Network | IEEE802.3 10/100M Ethernet LAN | ||||
| Input | USB2.0*1; RJ45*1 | ||||
| Option | CF *1; SD *1 | ||||
| Audio | Support full format file(1080P) | ||||
| Video | support MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB | ||||
| picture | Support JPEG,GIF,PNG,BMP files | ||||
| others | Security design; multi-display modes; | ||||
| Support flash subtitle, Log management, time on/off, display instand messaging | |||||
| Built-in PC (option) | |||||
| PC | Intel J1900/ I3 /I5 CPU, 4G memory, 500G HDD Wi-Fi with Antenna (option) | ||||
| Interfaces | Interfaces: USB*4；HDMI*1, DVI*1, VGA*1, RJ45*1,RS232*1, MIC*1 | ||||
| Touch Screen Option | |||||
| Touch Screen | Optional, Infrared multi touch points, Finger touch, gloved hand, or any opaque objects | ||||
| Other Features | |||||
| Case | Metal backside case, Aluminum Frame, 4mm Tempered Glass | ||||
| Work | Temperature: 0℃～40℃: Humidity:10%～90% | ||||
| Power | AC 100-240V 50/60HZ; Stand by ≤1W | ||||
| Consume | ≤30W | ≤60W | ≤100W | ≤130W | ≤130W |
| Quality appliance | CE, FCC, ROHS | ||||
| Accessories | CD, remote control, cables, user instruction | ||||

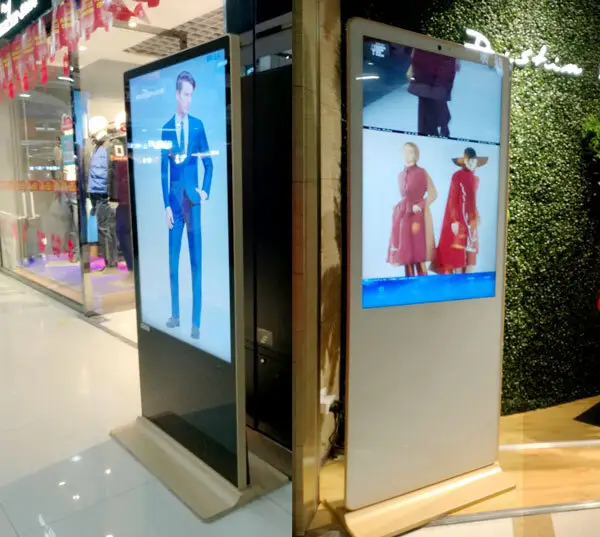

The LCD digital signage display will be widely used in station, hotel, airport, shopping, supermarket, bank, office, school, goverment ... etc for advertisng display and infomation public.
The package will be settled by wooden case or pallet to ensure the shipment safety, ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment
Container loading - the package with pallet and plastic film to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety
Q: Which accessories would be included for the package of this interactive touch display?
R: the package accessories as below,
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
Q: What is the Lead-time?
R: Leadtime: within 10days for 1~10pcs. around 10~20days for 20~100pcs.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Does it include remote control managment software ?
R: We offer the programme with the basic features, such as: flash player, divided screen, subtitle, log managment, time on/off ... etc.
