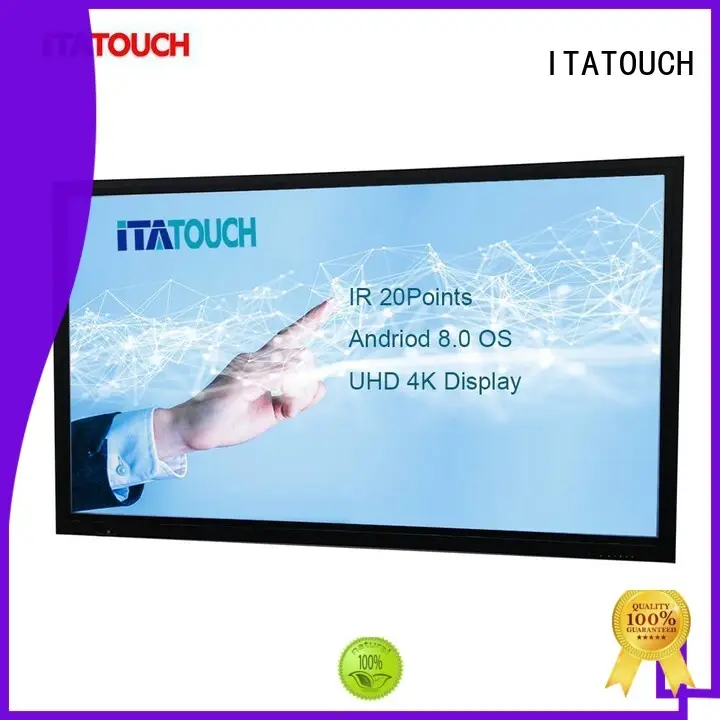

Latest interactive flat panel display iwb factory for school
This series of interactive touch panel adopt 20-touching points infrared technology, and built-in Android 8.0 OS, it offers users greatly smooth experience.
Under android OS, there are APPs of Annotation, Interactive multiple screens, Whiteboard Software, and other apps from Google store, and the users themselves also can download /Un-install the apps per their requirements.
It supports the drawing, writing on video, images, word, excel in all kinds of formats. with the multiple languages, so the user can freely change it.
This series are mainly used in education and business field, such as school and classroom for teaching and learning, and offices and government for meeting, hotel for commerce use... etc.
Aluminum alloy frame with Oxidation drawing treatment, the black color of the bezel.
1*PCB-USB, 1*Android-USB, 1*TOUCH-USE, 1*HDMI
Power, Home, Redo, Brightness, Vol-, Vol+
Parameters:
| Size | 65 inch 4K | 75inch 4K | 86 inch 4K | |
| Screen panel | View Area | 1428.48x803.52 | 1649.66 x 927.94 | 1860.48 ×1046.52 |
| Resolution | 3840 x 2160 | 3840 x 2160 (pixels) | 3840 x 2160 | |
| Brightness | 450cd/m² nits (typ.) | 450cd/m² (typ.) | 400 cd/m2 nits (typ.) | |
| Contrast | 1200:1 (typ.) | 1200:1 (typ.) | 1600:1 (typ.) | |
| Response | 6ms (typ.) | 8ms (typ.) | 8ms (typ.) | |
| Pixel | 0.496x0.372mm | 0.429 x 0.429 mm | 0.4935 x 0.4935mm | |
| Visual Angle | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | 178 °(H) / 178 °(V) | |
| Color | 1.07B (10bit) | 1.07B (10bit) | 1.07B (10bit) | |
| Saturation | 68% | 65% | 65% | |
| Life | 30,000 hrs (min.) | 30,000 hrs (typ.) | 50,000 hrs (min.) | |
| Lound Speaker | 15W*2 | |||
| Android 8.0 OS | Mainboard | MSD6A848 ARM A73+A53, Quad Core 1.5GHz, GPU: MaliG51, 2GB /3GB DDR4 16GB flash Nand, android 8.0 OS | ||
| INPUT | HDMI*3, DP IN *1,VGA IN*1, TV IN *1, AV IN*1, YPBPR IN *1, LAN *2, Android USB *2, Public USB*2, Touch-USB*2, PC-Audio IN*1, RS232 IN*1, | |||
| OUTPUT | HDMI OUT*1, AV OUT *1, S/PDIF OUT *1, Audio OUT*1 | |||
| Touch Screen | Technology | Infrared 20points supports touch by any of opaque object (such as finger or whiteboard pen) | ||
| Glass | 4mm tempered glass，transparency rate＞88%，resolution: 32768×32768，against light interface | |||
| Tec Parameter | response time：10ms，accuracy＜2mm; power by USB port，Voltage：DC5V±6%, Power：0.9W | |||
| Compatible OS | Multipoint touch (6-20points) : Windows 7/8 /10 | |||
| Main Features | Display Features | High accuracy touch screen, support 2mm writing/pen, and 3mm writing /6pens at the same time. | ||
| Full channels annotation, Andriod OS with Whiteboard App | ||||
| The intelligent floating menu on side screens | ||||
| Dual LAN interfaces, support android / OPS windows OS, and external PC network | ||||
| front auto-USB recognize. | ||||
| OPS PC (option) | CPU | Intel i3 / I5 / I7 CPU 1155-pin; Integrated HD Graphics; built-in HD audio 6(Realtek ALC661) | ||
| Memory | DDR3 1333Mhz 4G/8G option | |||
| SSD | 128GB/256GB SSD | |||
| Wi-Fi | Wi-Fi with Antenna, 802.11 b/g/n | |||
| PC Ports | HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1 | |||
| Power Consume | Max | ＜140W | ≤400W | <170W |
| Stand-by | ≤1W | ≤0.5W | ≤1W | |
| Environment | Working | Temperature：0℃～40℃， Humidity：20%～80% non-condensing | ||
| Storage | Temperature：-10℃～60℃， Humidity：10%～90% non-condensing | |||
| Out-looking | Material | Aluminum/Metal plate, Black /Black color | ||
| VESA Mount | 400*400(4-M8) | 400*400(4-M8) | 600*400(4-M8) | |
| Dimension | Product(mm) | 1506.3x96.1x901.3mm | 1735.98x103.75x1034.52mm | 1989.18x119.7x1180.22mm |
| Package | 1660x245x1045mm | 1880x280x1160mm | 2140x280x1340mm | |
| N/G Weight | 43.5Kg / 55Kg | 59Kg/ 78Kg | 81 / 102Kg | |
| Quality Compliance | ISO14000, ISO9000, CCC, CE, FCC, ROHS | |||
| Accessory | Wall mounted *1, Remote Control*1、Power Cable 3m *1、Touch Pen*2、3m USB*1, 3m HDMI*1 | |||
Remark:
just for reference, the actual parameters will be some difference per different components.
Package: 1pc/carton
Carton box: Rigid carton materials
