New capacitive touch screen display supply for classroom
1. capacitive touch screen is designed by renowned designers in the field.
2. capacitive touch screen has many virtues such as capacitive touch pad and so on.
3. capacitive touch screen is of characteristics of capacitive touch pad .
4. It will not only elevate users' senses but most importantly, elevate their wellbeing and promote deep and healthy sleep.

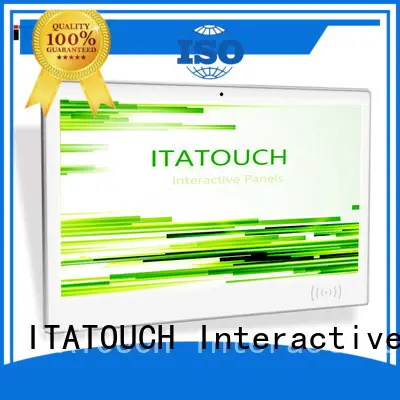

PACP Multi Touch Screen Display
Camera, Card Reader, Android/ PC
ITATOUCH produces the small size capacitive touch screen display for any commercial use, projected capacitive technology, built-in Camera, Card Reader,etc. customized supporting. User could select the device por actual use.
ITATOUCH Interactive Flat Panels integrated in projected capacitive touch screen, full high-definition 1080P display, android OS / Computer, and the client could choose other configurations also, such as: built-in camera, carder reader … etc.
Projected capacitive touch screen technology, 10 points finger touch, intelligence gesture, write smoothly
Android OS, 2GB RAM, 16GB flash Nandi. or PC Intel I3 /I5 /I7 4GB/8GB option
FHD 1080P screen panel from LG, SAMSUNG, AUO .. , quality A+, perfect out-looking
Supporting cusotmized, built-in camera, card reader,etc. hotsale stylish
The standard android board is high-performance RK3368, quad-core CPU 1.8GHz, 2GB RAM, built-in PC Intel J1900, I3, I5, I7, 4GB/8GB option.
Since the high-integrated all in one feature, it would be widely applied classroom, school, store, supermarket, station, airport, office, etc for information display, checking for any smart use, which strongly improves the working effectiveness
- FHD 1080P display
- Projected capacitive touch screen, 10points
- Android OS or Windows OS, WIFI built-in
- Built-in Camera, card reader option
- Two kinds of the appearance for the different applications
- Full sizes: 18.5”, 21.5”, 27”
| Screen Panel | Size | 18.5" | 21.5" | 27" |
| Sceen panel | LCD LED backlight | |||
| View Area | 409.8*230.4mm | 476.64x268.11mm | 597.6*36.15mm | |
| Resolutions | 1366*768 | 1920*1080 | 1920*1080 | |
| Contrast | 600:1 | 3000:1 | 3000:1 | |
| Brightness | 350cd/㎡ | 250cd/㎡ | 300 cd/㎡ | |
| Response time | 8ms | 6.5ms | 12ms | |
| Viewing Angle | 100°(H) / 75°(V) | 170°(H) / 160°(V) | 178°(H) / 178°(V) | |
| Lifetime | 30,000 hrs (min.) | 30,000 hrs (min.) | 30,000 hrs (min.) | |
| Speaker | 2W*2,8Ω | 2W*2,8Ω | 10W*2 | |
| Android (Option) | Mainboard | RK3368 A83T 8cores 1.8GHz CPU, Memory 2G, 64bit, Flash Nand 8G, WIFI, Android 5.1 OS | ||
| Computer (Option) | Mainboard | H61 / H81 Chipset | ||
| CPU | InteCorei7/i5/i3/G2030/Celeron CPU 1150-pin | |||
| RAM | DDR3 1333Mhz 4G/8 | |||
| Storage | SATA500G；SSD60G/120G | |||
| WiFi | yes, with antenna | |||
| OS | Compatiable with WINDOWS 7/8, 10.. Etc | |||
| Interfaces | I/O | USB*2, RJ45*1; SD*1; Microphone *1 | ||
| Touch (Option) | Technology | Capacitive 10point touch. Free driver, finger touch; 95% touch area, accuracy ± 2mm | ||
| Camera (Option) | Module Size | 55.2mm × 19mm × 24.5 mm; 2~5 millon piexls, USB2.0 interface | ||
| Object distance | 15CM-80CM | |||
| Card Reader (Option) | agreement: ISO14443A/ISO14443B/ISO15693 , Frenqucy: 13.56MHZ, Communication Interface: TTL; | |||
| Others | Button | Power on/off, Light lamp | ||
| Power Supply | Power | AC100 V ~ 240 V, 50-60 Hz | ||
| Consumption | ≤40W | ≤60W | ≤60W | |
| Standby | ≤1W | ≤1W | ≤1W | |
| Envirnorment | Temperature | Working: -20℃~60℃, Storage:-40℃~85℃ | ||
| Humidity | Working: 10%~90%RH, Storage: 10%~95%RH | |||
| Max working time | 18 hours /day | |||
| Apprance | Case | Aluminum alloy frame with paint sliver | ||
| Installation | Wall mounted | |||
| Package | Products | 467.1x299.1x52.6 | 532.72x336.72x51.6mm | 655.1x405.1x53.1mm |
| Packages | ||||
| Weight | N/W 5.5KG | N/W 6.5KG | N/W 7.8KG | |
| Accessories | Power cable, wall mounts, user manal | |||
Remark: just for reference, the actual parameters will be some deviations per different components.
The package will be settled by wooden case or pallet to ensure the shipment safety,. ITATOUCH will keep communicate with our clients to arrange all, include Air (by express or airport) and Ocean shipment.
Container loading - the package with pallet and plastic flim to anit-damaged and waterproof
The workers are setting the safety strips to avoid shocking damaged during shipment.
Air shipment for small order quantity - settle wooden case or pallet with stripe to ensure safety.
Q: This andriod touch scree monitor could be customized?
R: Yes, offer customizied service, OEM welcome. Please give us what you like to, such as camera, card reader, android board ... etc .
Q: What is the MOQ for customized.
R: MOQ: 10pcs.
Q: How Long Leadtime for customized units.
R: It would be around 15~25pcs, which is based on the status of the changing. if no constructure change, then around 10days. it could be talk in case by case.
.
Q: How long time is for the warranty?
R: Usually it is one year. Certainly, three years also except the sceen panel (since the factory of screen panel just offered one year). we could talk in case by case.
Q: How to order it?
R: Please send your inquiry , or call us. the process please refer the OEM / ODM service page.
Q: Which accessories would be included for the package of this interactive panels?
R: the package accessories as below,
1* USB Cable
1* Power Cable (the international standard, such as: EU, UK, US .. per usser location)
