Wholesale interactive flat panel display board company for military

Company Advantages
1. ITATOUCH ir touch screen manufacturers is designed based on design standards.
2. The reliability of its quality is guaranteed by our QC team.
3. Products have a major impact on productivity. With its high efficiency, it enables workers to work more quickly before the deadline.
4. It fits my body very well and helps me get lots of compliments at the same time. It's cute. - said one of our buyers.

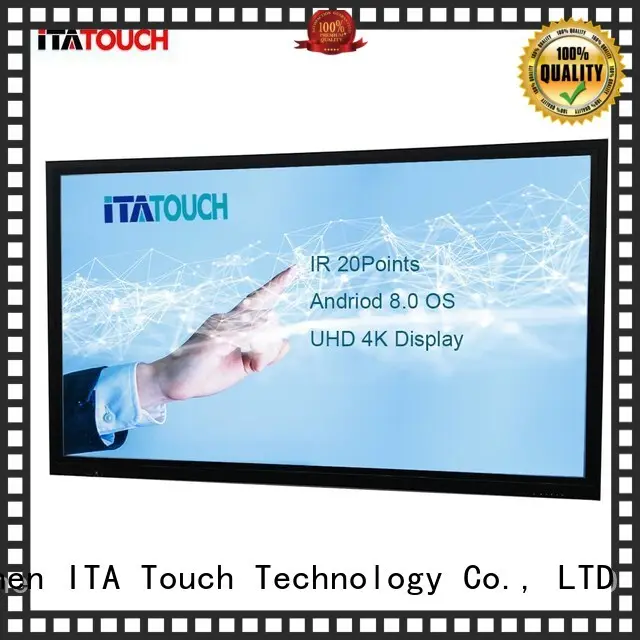

This series of interactive touch panel adopt 20-touching points infrared technology, and built-in Android 8.0 OS, it offers  users greatly smooth  experience.

Under android OS, there are APPs of Annotation, Interactive multiple screens, Whiteboard Software, and other apps from Google store, and the users themselves also can download /Un-install the apps per their requirements.

It supports the drawing, writing on video, images, word, excel in all kinds of formats. with the multiple languages, so the user can freely change it.

  This series are mainly used in  education and business field, such as school and classroom for teaching and learning, and offices and government for  meeting, hotel for commerce use... etc.

Aluminum alloy frame with Oxidation drawing treatment, the black color of the bezel.

Parameters:

Size		65 inch 4K	75inch 4K	86 inch 4K
Screen panel	View Area	1428.48x803.52	1649.66 x 927.94	1860.48 ×1046.52
	Resolution	3840 x 2160	3840 x 2160 (pixels)	3840 x 2160
	Brightness	450cd/m² nits (typ.)	450cd/m² (typ.)	400 cd/m2 nits (typ.)
	Contrast	1200:1 (typ.)	1200:1 (typ.)	1600:1 (typ.)
	Response	6ms (typ.)	8ms (typ.)	8ms (typ.)
	Pixel	0.496x0.372mm	0.429 x 0.429 mm	0.4935 x 0.4935mm
	Visual Angle	178 °(H) / 178 °(V)	178 °(H) / 178 °(V)	178 °(H) / 178 °(V)
	Color	1.07B (10bit)	1.07B (10bit)	1.07B (10bit)
	Saturation	68%	65%	65%
	Life	30,000 hrs (min.)	30,000 hrs (typ.)	50,000 hrs (min.)
	Lound Speaker	15W*2
Android 8.0 OS	Mainboard	MSD6A848  ARM   A73+A53, Quad Core 1.5GHz, GPU: MaliG51, 2GB /3GB DDR4 16GB flash Nand,   android 8.0 OS
	INPUT	HDMI*3, DP IN *1,VGA   IN*1, TV IN *1, AV IN*1, YPBPR IN *1, LAN *2, Android USB *2, Public USB*2,   Touch-USB*2, PC-Audio IN*1,  RS232   IN*1,
	OUTPUT	HDMI OUT*1, AV OUT   *1,  S/PDIF OUT *1, Audio OUT*1
Touch Screen	Technology	Infrared 20points supports touch by any of opaque   object (such as finger or whiteboard pen)
	Glass	4mm tempered glass，transparency rate＞88%，resolution:   32768×32768，against light interface
	Tec Parameter	response time：10ms，accuracy＜2mm;   power by USB port，Voltage：DC5V±6%,  Power：0.9W
	Compatible OS	Multipoint touch (6-20points) : Windows 7/8   /10
Main Features	Display Features	High accuracy touch screen, support 2mm writing/pen,   and 3mm writing /6pens at the same time.
		Full channels   annotation, Andriod OS with Whiteboard App
		The intelligent floating   menu on side screens
		Dual LAN interfaces,   support android / OPS windows OS, and external PC network
		front auto-USB recognize.
OPS   PC (option)	CPU	Intel i3 / I5 / I7 CPU 1155-pin; Integrated HD   Graphics; built-in HD audio 6(Realtek ALC661)
	Memory	DDR3 1333Mhz 4G/8G    option
	SSD	128GB/256GB SSD
	Wi-Fi	Wi-Fi with Antenna, 802.11 b/g/n
	PC Ports	HDMI×1,VGA×1,USB×4,RJ45×1,PCAUDIO×1,MIC×1,RS232×1,DC19V×1
Power   Consume	Max	＜140W	≤400W	<170W
	Stand-by	≤1W	≤0.5W	≤1W
Environment	Working	Temperature：0℃～40℃， Humidity：20%～80% non-condensing
	Storage	Temperature：-10℃～60℃， Humidity：10%～90%   non-condensing
Out-looking	Material	Aluminum/Metal plate,  Black /Black color
	VESA Mount	400*400(4-M8)	400*400(4-M8)	600*400(4-M8)
Dimension	Product(mm)	1506.3x96.1x901.3mm	1735.98x103.75x1034.52mm	1989.18x119.7x1180.22mm
	Package	1660x245x1045mm	1880x280x1160mm	2140x280x1340mm
	N/G Weight	43.5Kg / 55Kg	59Kg/ 78Kg	81 / 102Kg
Quality Compliance		ISO14000, ISO9000, CCC, CE, FCC, ROHS
Accessory		Wall mounted *1, Remote Control*1、Power Cable 3m   *1、Touch Pen*2、3m USB*1, 3m HDMI*1

Remark:

 just for reference, the actual parameters will be some difference per different components.

Package: 1pc/carton

Carton box:  Rigid carton materials

Company Features
1. As a professional developer and manufacturer, Shenzhen ITA Touch Technology Co., LTD possesses abundant knowledge and experience in producing ir touch screen manufacturers .
2. Business management talents are the most important resource for our company. They have a wealth of expertise and practical experience in business operation and business investment, which lays a solid foundation for our growth.
3. We never change our persistence in only producing high quality interactive flat panel display. Get info! To Shenzhen ITA Touch Technology Co., LTD, technology innovation is a strategic engine for an enterprise’s sustainable development. Get info! Standing at the new era, ITATOUCH will keep promises to clients with our exquisite service with firmer faith. Get info!
