Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode, Wire & Wireless Wifi 5G A3/a4(max)1 1

Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode, Wire & Wireless Wifi 5G A3/a4(max)1 2

Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode, Wire & Wireless Wifi 5G A3/a4(max)1 3

Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode, Wire & Wireless Wifi 5G A3/a4(max)1 4

Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode, Wire & Wireless Wifi 5G A3/a4(max)1

Interfaces:

USB,

Supply Ability:

2000

Min. Order:

Payment:

Shipping:

BY SEA BY AIR

Port:

SHENZHEN

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ITATOUCH

Model Number:: K6

Warranty(Year):: 1-Year

After-sales Service:: Call Center and on-line Technical Support

Shooting Area:: A3/A4(Max)

Lens:: CMOS, 8 megapixels

Transmission mode:: dual mode, wire & wireless wifi 5G

Charger:: magnetic charging

Interface type:: USB 2.0 free driver

Zoom mode:: AF auto focus + MF touch focus

Packaging & Delivery

Selling Units:: Single item

Single package size:: 52X17X22 cm

Single gross weight:: 4.500 kg

Package Type:

Carton Material: 250g kraft paper mounted K9 reinforced core
Dimension: 520*175*225mm

Picture Example:

Lead Time:

Quantity(Sets)	1 - 10	>10
Est. Time(days)	10	To be negotiated

Product Description

ITATOUCH Wireless Intelligent Document Scanner integrated the high definition video camera and smart control management,  and adopt 5.8G WIFI  with USB internet adapter and magnetic charging method offer user free, easy teaching / presentation experience.This visualizer directly connect with interactive flat panel display or the computer of interactive whiteboard by USB wireless adapter or cable.

Pixel: 8 million, maximum resolution: 3264 * 2448; the pixel can be adjusted according to different application scenarios.

Image rate: WiFi 5g full speed transmission, no delay, 1080p Full HD @ 25 FPS / s.

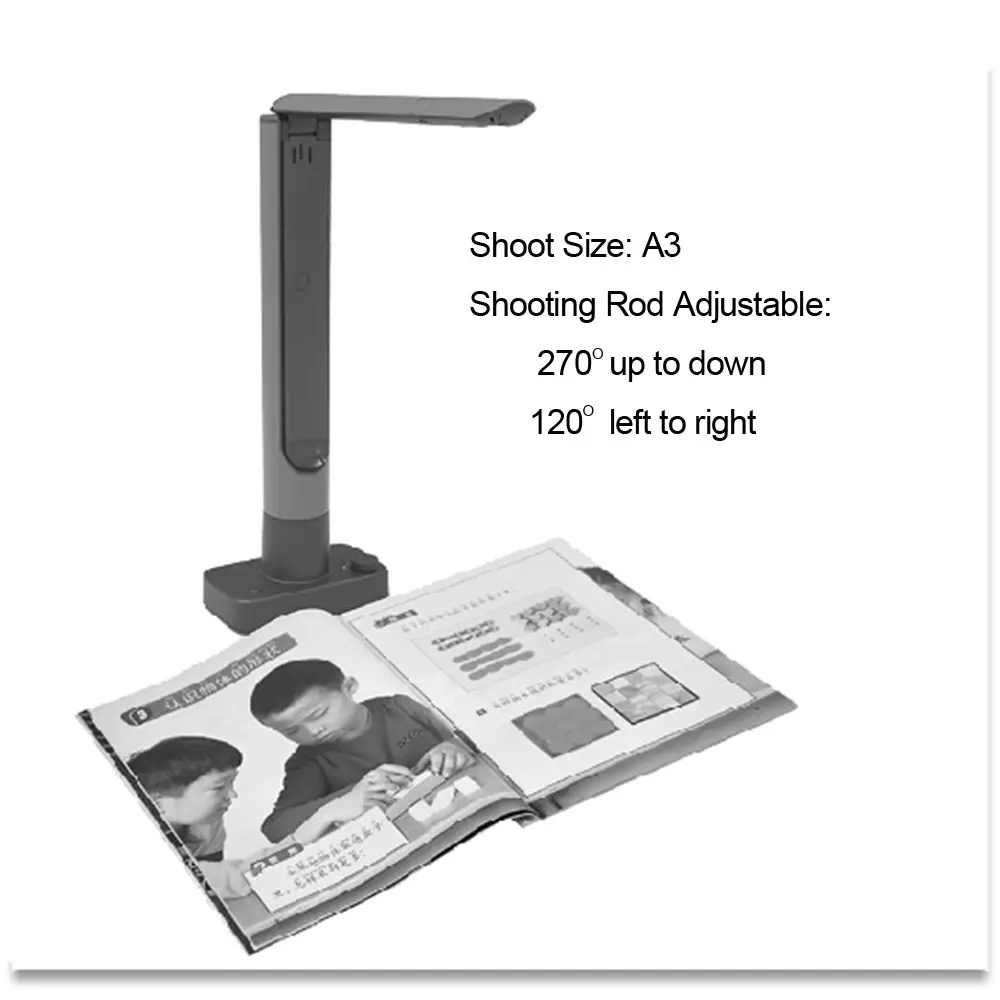

★ display range: A3 format; the lens part can be rotated up and down to 270 degrees, left and right to 180 degrees, and displayed in multiple angles; the lens can be lowered to a relatively close distance of the desktop display object for micro distance display and shooting.

★ transmission mode: USB wired and WiFi 5g wireless dual-mode; dual-mode interactive fast switching, according to the teacher's teaching scene, when the wall hanging is switched to the mobile desktop teaching, the application software does not need to be closed, realize intelligent recognition in the same interface, and automatically switch out the image.

Interactive button: the base is integrated with one button photo taking function, with knob switch for image enlargement and reduction.

Charging mode: the magnetic suction charging base is adopted, and the booth can be put into the wall hanging box to realize the magnetic suction charging.

Focusing mode: AF + MF on-demand focusing technology.

Working temperature: - 15 ℃ ~ 45 ℃.

Fill light mode: touch Level 3 light adjustment.

★ electric quantity indication: the electric quantity percentage and charging flashing indication of one group of LED lamps are clear and visible.

Battery capacity: polymer cell 5600mAh; battery life: 6-8 hours.

Wireless network card: default standard WiFi 5g USB wireless network card

product-Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer Dual Mode

Appearance & Dimension

Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed
the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock
Box close: 450*150*100mm
Box Open: 450*460*225mm

Dual Modes Option for User
User can select the document scanner with / without the wall mounted box for this intelligent document scanner, please see the following

product-ITATOUCH-Wireless A3 Portable Digital Dental Projector Classroom Document Camera Visualizer

Wireless Mode

The interactive document visualizer can connect to the computer through WiFi 5g, which is wireless mode

Wire Mode

Interactive document scanner can be displayed and charged in the wall hanging box. There is no need to be restricted by complicated connecting lines, which
limits the use range.

Product Specification

Model#	K6
Construction	Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed.
Open method for box	the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock
LENS	CMOS, 8 megapixel
Resolution	1700 TV line in the center, 1400-1600 TV line around
Aperture and lens direction	Fixed aperture, vertical down
Operating temperature and humidity	－15℃～45℃；20%～90％ RH
Shooting range	Take full A3 paper at the vertical distance from the sensor surface to the document (lens can be raised)
Shooting type	Courseware, documents, documents, notes, pictures, magazines and books, ID cards, three-dimensional objects, etc
zoom mode	AF auto focus + MF touch focus on demand
Interface type	USB 2.0 free driver
transmission mode	USB wire & IFI5 wireless
Switch mode	Dual modes free switch, no need close whiteboard software, intelligent auto-recognize image
Interactive button	The base with the button, integrated the power on/off, shoot the image, and zoom in/out by rotating.
Charger mode	the base with magnetic, put inside to charge immediately
Battery	1 set of LED light, power percentage and charge flashing indication (10% ~ 100%)
Battery Capacity	Polymer cell 5600mAh; theoretical battery life 6-8 hours (depending on the environment)。
Power Adapter	Standard 5V ﹤ u 2.5A power adapter, it takes 4-5 hours to fully fill from 0-100%
working frequency	50Hz，support 60Hz
Light supplement mode	touch switch（three sections of the light adjustment）
Video format	MJPG/YUY2
Output frame rate of USB mode	MJPG：3264×2448(15~20 frame ), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
Output frame rate of USB mode	YUY2（support android OS）：3264×2448(2frame), 2592×1944(3frame), 640×480(30frame)
Output frame rate of WIFI 5G wireless	MJPG：3264×2448(15~20frame), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame)
Exposure / white balance	Power on auto exposure, white balance
Time of exposure	1~2S
Colorful	24bits
Rotation angle of cross arm	Rotate up and down to 270 degrees, left and right to 180 degrees
USB Cable	USB cable 5m (optional)
USB wireless network card	Standard configuration : WiFi 5g wireless network card

Product Installation

Simple Installation

- Wall mounted the aluminium box. inserted the USB wireless internet adapter into the OPS PC of the interactive display or interactive whiteboard.
- Installed the ITA Whiteboard Software.
Inside the box, the visualizer will automatically charging and connecting with PC by cable.Take out from the wall mounted box, it can automatically connect with interactive flat panel under running ITA TOUCH whiteboard software.

Product Application

The intelligent interactive Visualizer can be used in the conference platform and classroom.

The wireless intelligent interactive scanner to be used for classroom teaching

The teacher was using this HD visualizer to shoot the keys of the piano for teaching, which offer the teacher easy getting courseware, and a vivid example for students.

Wireless intelligent scanner offer students a vivid practical courses

The students were using the wireless document camera visualizer in person and get an easy case experience.
