The color and out-looking can be customized.
White / black, green ... etc.
A Professional Manufacturer of Smart Interactive Screens For More Than 10 Years
Design Outdoor Lcd Advertising Flexible Display Led Touch Digital Signage Screens
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Quality assurance new design flexible display touch digital signage screen
Product Application
Outdoor digital display includes floor & wall mounted installation and provides three kinds of working version for various use, card reader, android LAN networking, PC X86 configuration, at the same time it also could be built-in infrared /capacitive touch screen to be a interactive information touch screen display
Waterproof, IP65, Cooling system / airconditioner option per the installation envirnoments, anti-glared glass .. etc.
The outdoor display has been installed the terminal program when exw factory, the functions include the divided screen, subtitle, media play, vertical / horizontal /landscape display ... etc.
Outdoor Display
ITA TOUCH outdoor digital display widely would be used to station, bus, airport ... etc for information advertising display with management control software, user publish the information content/images by his/her computer , the application program is easy to use, very convenience.
Products Description
ITATOUCH LCD digital signage adopt LED backlight screen panel with FHD 1080P resolution, include wall mounted and floor stand installation, it has Android and PC LAN version, card reader version option.
The materials of the case are aluminum frame with drawing painted treatment and metal backside, front panel usually is metal panel with painted color, and covered edge finish.
Interactive touch screen option – infrared multi touch or capacitive touch technology.
ITATOUCH support the customized device, include color, configuration, shape and functions. OEM welcome!
* 1080P Full HD Display
* Sunshine sight, high brightness, 1500 ~2000cd option.
* Support LAN management documents by Remote Control
* Support flash subtitle, Log management, time on/off
* Multi-display modes; Horizontal, Vertical, Full and Divided displaying
* Security Design, industrial mainboard, and tempered glass
* Support full media format files
Hardware & Software
Hardware: Aluminum Frame with Metal / Plastic painting color, support customized shape
Net-working management software
Each terminal/unit installed, the managment software to be installed computer sever if needs.

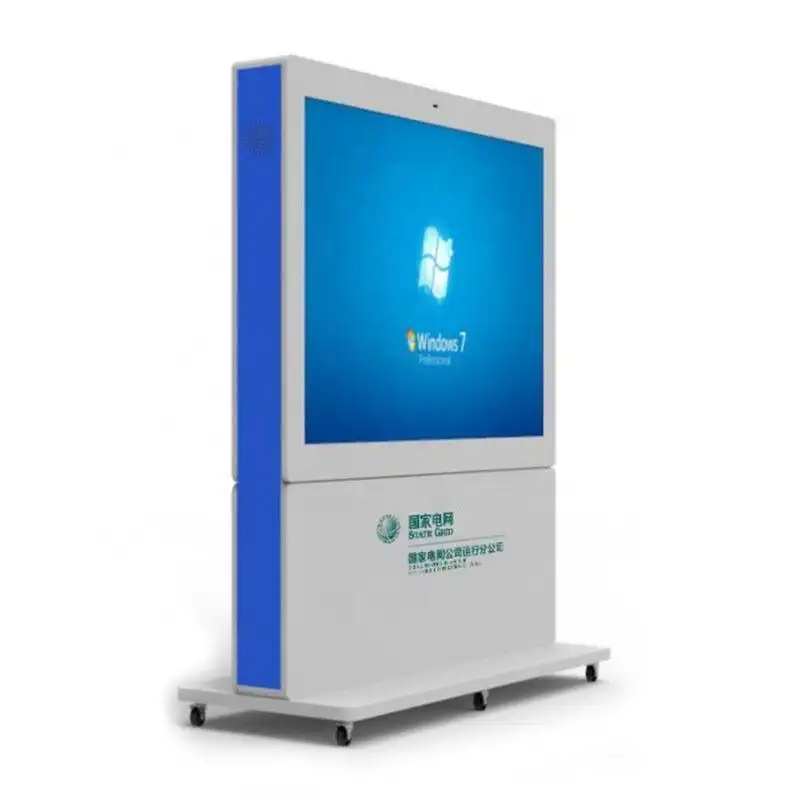

Above is picture of 43 inches outdoor stand along digial signage display, other sizes option - 32", 43", 50", 55", 65", 75", 86", 98"
Landscape， Horizontal outdoor display customized with wheels stand
Customized Clarification:
a series of dimensions for various sizes, when the shape and configurations of the free standing digital signage are different, it will be a little change measurements.
The change / customized include the following
1. Out-looking & Color, include based stand
2. Configurations different: card reader, android LAN (default equipment), PC built-in
3. Touch Screen built-in, Infrared or Capacitive multi touch
4. Built-in Camera
5. Built-in printer, card reader ... etc.
Above picture is 98" vertical digital totem display we produced.
Horizontal / landscape option.
info@itatouch.com Wechat: +86 13582949978
Manufacturing Technique
The Technical Parameter for Outdoor Advertising Display Kiosk
Remark: just for reference, the actual parameters will be some difference per different components
Size | 43" | ||||||||||||
Screen Panel | D-LED screen panel *2, double sides | ||||||||||||
Display Ratio | 16:9 | ||||||||||||
Resolution | 1920*1080 HD | ||||||||||||
Brightness | 1500 cd/m² | ||||||||||||
Contrast Ratio | 2000:1 | ||||||||||||
Viewing Angle | 178 ° horizontal / 178 ° vertical | ||||||||||||
Touch Screen | Nano Touch 10point *2 | ||||||||||||
Built-in Camera | 2 million pixels, wide-angle distortion free *2 | ||||||||||||
Built-in PC | Intel I3, 4GB Memory, 128GB SSD, WIFI *1 | ||||||||||||
Power on/off | Industrial levels of the switching power supply | ||||||||||||
Spearker | 2* 10W Waterproof speaker | ||||||||||||
Anti-thunder | three graded for Alternating Current; and protect the signal of LAN cable | ||||||||||||
Leakage protection | 30MA current | ||||||||||||
Timer | time on/off per day / week | ||||||||||||
Brightness Control | Automatic light sensor system | ||||||||||||
Temperature Control System | Air-cooling and heating system | ||||||||||||
Operating Temperature | -30°C to +50°C | ||||||||||||
Operating Humidity | 5% to 100% | ||||||||||||
AC 110 -240V | |||||||||||||
Max Consumption | 850W | ||||||||||||
Waterproof Enclosure | 1.5mm galvanized steel, the surface with special powder sprayed. Lifetime: 7years; Open door with waterproof construciton & outdoor rubber closure. | ||||||||||||
Protection Grade | IP65 | ||||||||||||
Glass protection | 6mm sided laminated glass, anti-glare with AR coating, high transmittance, low reflection, anti-explosion; anti 99.99% UV rays, anti 52% solar heat, transmittance: > 97% , reflectance : < 3 %; | ||||||||||||
Products Size (W*H*D) | to be advised | ||||||||||||
Gross weight | to be advised | ||||||||||||
Installation | Floor standing or customized | ||||||||||||
Protection Glass | 6mm AR safe glass | ||||||||||||
Remark: Size range of outdoor floor standing digital signage display : 32", 43", 50", 55", 65", 75". 86", 98"
Any we can talk in case by case
Above are some pictures of outdoor display kiosk which we produced, we can design per clients requirements.
