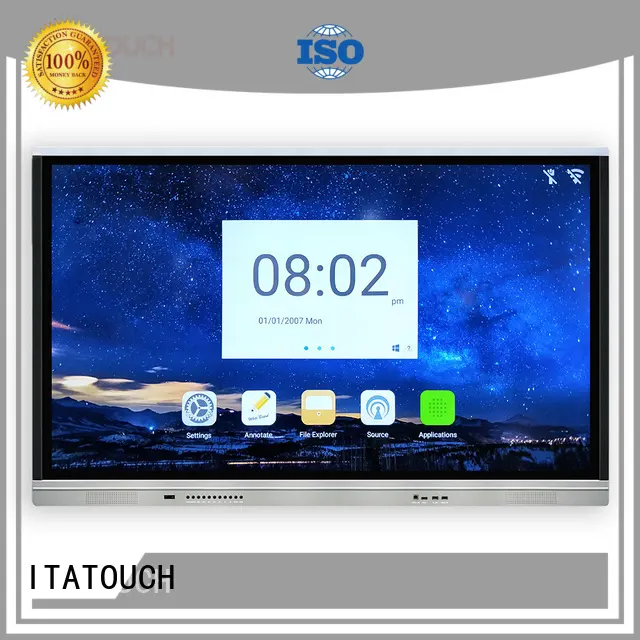

ITATOUCH conference capacitive touch screen for business for government
1. Before delivery, the mechanical parts of ITATOUCH capacitive touchscreen display has been tested. These parts include gears, bearings, fasteners, springs, seals, couplings, and so forth.
2. In our strict quality assurance procedures, any defects in the product are avoided or eliminated.
3. Strict internal quality control system to ensure that products meet international standards.
4. Shenzhen ITA Touch Technology Co., LTD has the most knowledgeable experts and reliable, easy-to-use products.
With the latest infrared touchscreen technology, supporting 10-32 points touch, The interactive touchscreen flat offers you a smooth,flexible using experience that only a traditional mouse and keyboard can provide in the past , plus seamless interactive function will make you everything easier.
In addition, it supports the Android system and optional Windows OS OPS PC, which can offer you more APP choices and good using experiences. With wide range of sizes, frames, and customized optional hardware equipment, it can suit for many solutions in education, conference, business presentation, etc fields.
D-LED screen panel, 3840*2160 display resolutions, improved and immersive visual experience, A+ quality
Built-in Andriod 5.01 OS, 2GB DDR3, 16GB flash Nandi; Windows OS OPS PC attachable. More choices, more fun.
4mm tempered glass with anti-reflective treatment, high light transmission, improved vision, and reduced eye strain
The latest infrared technology with high-density PCB, supporting multi-users through its 10-32 points touch screen interface.
Rounder Corner and Frame with Oxidation Wire Drawing, a streamlined appearance with much aesthetic design; Built-in Speaker*2 to create an immersive experience for users.
Front Interfaces: HDMI *1, PC-USB*1, MEDIA-USB*1, TOUCH-USB*1, convenient and fast response to different occasions.
Backside with 2 handles and 4 screws to ensure good stability, OPS PC Attachable Intel@ HM86 /H81 /H110 Chipset Option, providing more systems, APPs and convenient services to users as need.
Screen Panel | Panel size | 55inch | 65" | 75" | 86" |
| Screen Panel | TFT-LED panel | D-LED LG panel | D-LED LG panel | D-LED LG panel | |
| Display (mm)(H/V) | 1209.6 X 680.4 | 1428.48 x803.52 | 1649.6*927.9 | 1895.04x1065.96 | |
| Display Rate | 16:09 | 16:09 | 16:09 | 16:09 | |
| Max resolution | 1920x1080 | 3840x2160 | 3840x2160 | 3840x2160 | |
| Display color | 16.7M 8bit | 1.07B 8bit | 1.07B 10bit | 1.07B 10bit | |
| Pixel (mm)(H/V) | 0.21 x 0.63 | 0.372x 0.372 | 0.429 x 0.429 | 0.4935 x 0.4935 | |
| Brightness (nits) | 350cd/㎡ | 500cd/m² | 400cd/m² | 350cd/m² | |
| Contrast(typical) | 4000:1 | 4000:1 | 4000:1 | 4000:1 | |
| Visual angle | ±176° | ±178° | ±178° | ±178° | |
| Response time | 8ms | 6ms | 6ms | 8ms | |
| Speaker | MAX power: 15W*2 | ||||
| Android System | Mainboard | Android 5.01 OS Contex A53, Mail450MP4 Quad-core CPU, 1.4GHz, 2GB DDR3 RAM, 16GB Flash Nandi , IEEE802.11 a/b/g/n Dual Band 5 GHz | |||
| Input | HDMI*2, VGA*1, YPBPR*1, TV*1, AV *1 (Mini Jack in 3.5mm) USB 3.0*2, TOUCH-USB*1, RS232*1, SD/TF card*1 (support 128GB MAX) , RJ45 LAN *1, WIFI *1, OPS-SLOT*1 | ||||
| Output | Earphone*1, Mini-AV*1; Coaxial *1, HDMI*1 (option) , VGA*1 (option) | ||||
| Front frame | Interfaces: HDMI*1, USB-Media *1, USB-PC*1, USB-TOUCH*1 Buttons: POWER, SOURCE, MENU, VOL+, VOL-, CH-, CH+, PC, ES, ENTER, HOME | ||||
| Video Features | 3D digital comb filter、3D image motion noise reduction、3D Motion Adaptive Digital comb filter | ||||
| Touch System | Multi Touch | Infrared technology, support 10~20point touch; finger or any objects touch | |||
| Glass | Tempered glass, 4mm, Transparency rate>95%; 32768(W) × 32768(D) ; | ||||
| Resolution | Response speed: 5ms; Typical accuracy<1.5mm;Cursor Speed:180 d/s around; | ||||
| Features | No drift, drive-free,waterproof,anti-dust;finger/object multi-touch, intelligence gesture recongize etc | ||||
| OS | Support Windows 7/ Windows 8 | ||||
| OPS PC (option) | CPU | Intel®HM86 Chipset I3-4000M /I5-4200M /I7 -4600M, Integrated HD Graphics;built-in HD audio 6(Realtek ALC661) | |||
| Memory | DDR3 1333Mhz 4G/8G option | ||||
| SSD | 128G /256G SSD | ||||
| Wi-Fi | Wi-Fi with Antenna, 802.11 b/g/n | ||||
| PC Ports | 4*USB3.0, 2*USB2.0, 1*HDMI, 1*VGA, 1*RJ45 1000M internet, 1*Line out, 1*MIC | ||||
| Power | Power supply | AC100~240V 50 /60 HZ; Consumption: Standby <1W | |||
| Max consumption | ≦120W | <=250W | <=300W | <=350W | |
| Environment | Working: 0°C to 40°C ;Storage:-20°C to 55°C; Humidity:20%-80% RH at 40°C, non-condensing | ||||
| Appearance | Black color/ Metal Shell | ||||
| Package Dimension | Dimesion | 1259*771*87.5 | 1514.8*102.6*934.7 | 11739*1063*124mm | 1989.6*114.3*1201.9 |
| Package (mm) | 1455*195*935mm | 1680*1050*220mm | 1900*250*1195mm | 2134*1289*240mm | |
| N/W & G/W (kg) | 47 & 61kg | 49 & 65kg | 76 & 88kg | 84 & 108kg | |
| Quality Certificate | ISO9001, CE, FCC, RoHs | ||||
| Accessories | Warranty card, Remote Control, USB Cable 1.5m; Power Cable 1.8m; VGA cable 1.5m, Touch Pens /2pcs, | ||||
Company Features
1. Since establishment, Shenzhen ITA Touch Technology Co., LTD has provided superior design and production of capacitive touchscreen display . We are recognized as one of the leaders in the industry.
2. No other company can compare to the strong technical strength of Shenzhen ITA Touch Technology Co., LTD in the industry.
3. The aim of ITATOUCH is to create good accomplishments in the sector of capacitive touch screen . Inquire! The vision of Shenzhen ITA Touch Technology Co., LTD is to become a leader in products and services in the 4k touch screen monitor industry. Inquire! ITATOUCH has made up the mind to acquire the interactive flat panel display marketplace. Inquire!
